MDM-9PBS replacement ITT MDM series 1.27mm Contact Spacing Micro-D MIL-Spec Connector for Aerospace Applications

MDM-9PBS replacement ITT MDM series 1.27mm Contact Spacing Micro-D MIL-Spec Connector for Aerospace Applications
MDM-9PBS replacement ITT MDM series 1.27mm Contact Spacing Micro-D MIL-Spec Connector for Aerospace Applications
MDM-9PBS replacement ITT MDM series 1.27mm Contact Spacing Micro-D MIL-Spec Connector for Aerospace Applications MDM-9PBS replacement ITT MDM series 1.27mm Contact Spacing Micro-D MIL-Spec Connector for Aerospace Applications
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: MDM-9PBS
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Wire Length: Customized Material: Metal
Grid Distance: 2.54×2.54 Withstanding Voltage: 500VAC
Contact Spacing: 1.27mm Contact Gender: Female/female
Current Rating: 3 Amps Housing Material: Thermoplastic
Highlight:

J30J female female connector 1.27mm spacing

,

J30J connector 500VAC 3A

,

1.27mm spacing J30J connector

1.27mm Contact Spacing Micro-D MIL-Spec Connector for Aerospace Applications (Female/Female)
Product Overview
The J30J Connector is a versatile and reliable miniature rectangular connector designed for various electronic applications. With a contact spacing of 1.27mm and contact pitch of 2.54mm, this connector is ideal for compact spaces while ensuring efficient signal transmission. Custom wire length options provide installation flexibility, and the 2.54*2.54 grid distance ensures compatibility with standard electronic components.
Key Features
  • Product Name: J30J Connector
  • Contact Pitch: 2.54mm
  • Withstanding Voltage: 500VAC
  • Current Rating: 3 Amps
  • Grid Distance: 2.54*2.54
  • Material: Metal housing with gold-plated contacts
  • Compatible with MWDM Glenair Micro-D connectors
Technical Specifications
Contact Spacing 1.27mm
Center Conductor Copper Alloy, Gold Plating
Contact Pitch 2.54mm

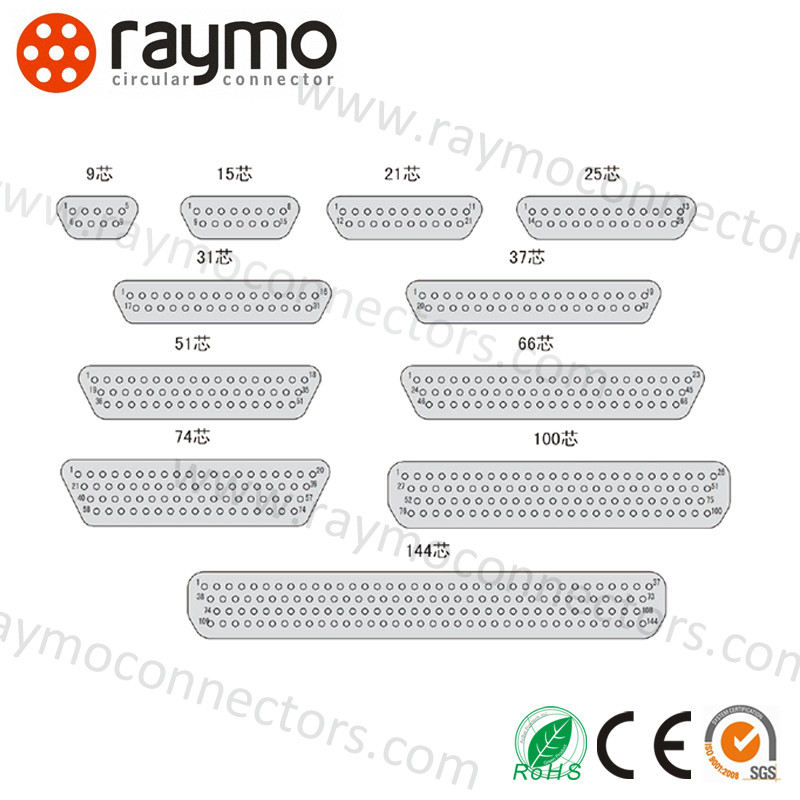

Contact Options 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Operating Temperature -55°C to +105°C
Material Metal
Contact Gender Female/Female
Plating Gold Plating
Housing Material Thermoplastic
Applications
The RM-J30J connector is ideal for demanding applications in aerospace, military, telecommunications, and industrial environments. Its robust construction and wide temperature range make it suitable for extreme conditions. The connector meets CE, RoHS, REACH, and ISO9001:2015 standards.
Ordering Information
  • Minimum Order Quantity: 1 piece
  • Price Range: $5-$15 USD
  • Packaging: CTN
  • Delivery Time: 3-4 weeks
  • Payment Terms: T/T
  • Monthly Supply Capacity: 5000 pieces
Support & Services
Our technical support team provides comprehensive assistance including product inquiries, troubleshooting, installation support, and product training. We ensure optimal performance and customer satisfaction throughout your project lifecycle.
