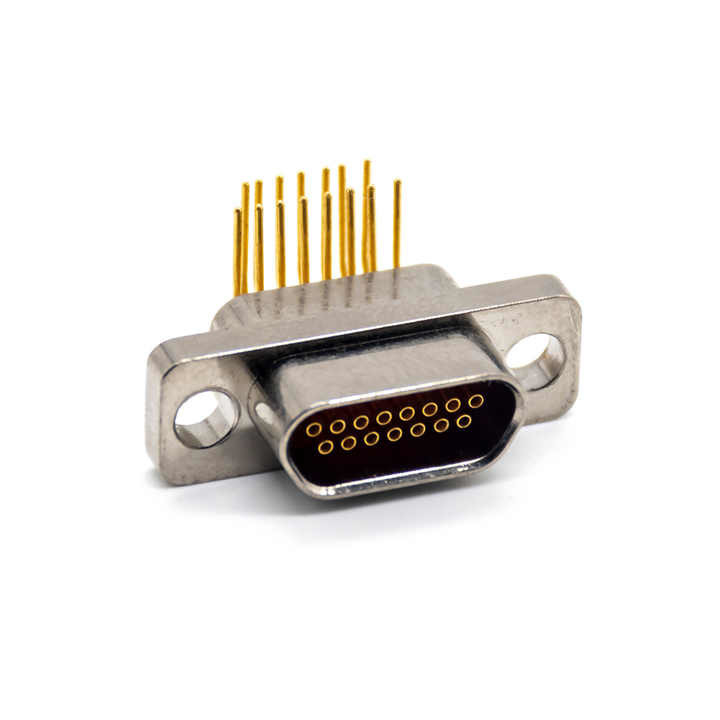

MDM-21PBR 2.54mm ITT CANNON MDM series MIL-DTL-83513 micro-miniature connector

MDM-21PBR 2.54mm ITT CANNON MDM series MIL-DTL-83513 micro-miniature connector
MDM-21PBR 2.54mm ITT CANNON MDM series MIL-DTL-83513 micro-miniature connector
MDM-21PBR 2.54mm ITT CANNON MDM series MIL-DTL-83513 micro-miniature connector MDM-21PBR 2.54mm ITT CANNON MDM series MIL-DTL-83513 micro-miniature connector
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: MDM-21PBR
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Termination Style: Solder Contact Pitch: 2.54 Mm
Operating Temperature Range: -55 To 105 Degrees Celsius Contact Spacing: 1.27mm
Palting: Gold Plating Wire Length: Customized
Housing Material: Thermoplastic Withstanding Voltage: 500VAC
Contact: 21 Pins
Highlight:

J30J connector 2.54mm pitch

,

J30J connector solder termination

,

J30J connector 500VAC withstanding

MDM-21PBR 2.54mm ITT CANNON MDM series MIL-DTL-83513 micro-miniature connector
Product Overview

The J30J Connector delivers reliable electrical connections for demanding applications. Constructed with durable metal materials, it ensures long-lasting performance across various environments.

This connector offers customizable wire length for installation flexibility, making it adaptable to diverse project requirements. With a 3 Amp current rating, it provides stable power flow for moderate electrical loads.

Key Features
  • Product Name: J30J Connector
  • Termination Style: Solder
  • Housing Material: Thermoplastic
  • Center Conductor: Copper Alloy, Gold Plating
  • Contact Pitch: 2.54 mm
  • Plating: Gold Plating
Technical Specifications
Parameter Value
Withstanding Voltage 500VAC
Contact Spacing 1.27mm
Plating Gold Plating
Center Conductor Copper Alloy, Gold Plating
Grid Distance 2.54×2.54

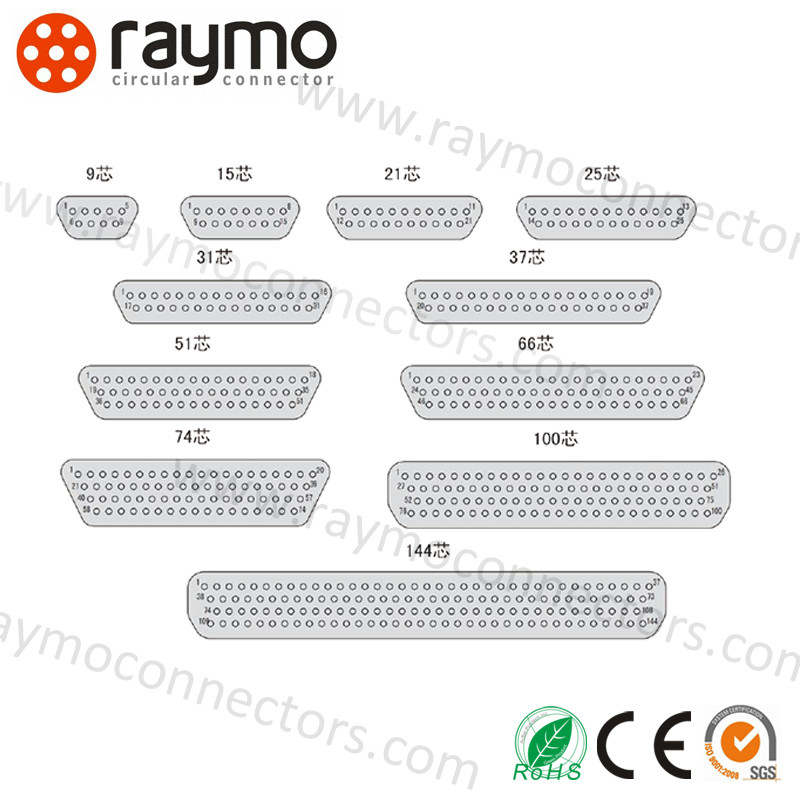

Contact Options 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Current Rating 3 Amps
Material Metal
Wire Length Customized
Housing Material Thermoplastic
Applications
Industrial Automation

Ideal for harsh industrial environments where robust connections are essential, thanks to its metal construction and solder termination.

Automotive Electronics

Certified for CE, RoHs, REACH, and ISO9001:2015 standards, making it suitable for vehicle wiring harnesses and electronic components.

Medical Devices

Perfect for medical equipment requiring compact, reliable connections with its high contact density and customizable wire length.

Consumer Electronics

Ideal for smartphones, tablets, and laptops due to its small form factor and flexible wire length options.

Aerospace and Defense

Suited for avionics and communication systems where durability and performance are critical.

Ordering Information
  • Minimum Order Quantity: 1 piece
  • Price Range: $5-15 USD
  • Delivery Time: 3-4 weeks
  • Monthly Supply Capacity: 5000 pieces
  • Payment Terms: T/T
  • Origin: China
Technical Support

Our comprehensive support includes troubleshooting assistance, product documentation, and expert guidance for installation and configuration. Contact our technical team for any assistance with your J30J Connector.
