Home ProductsJ30J ConnectorJ30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination

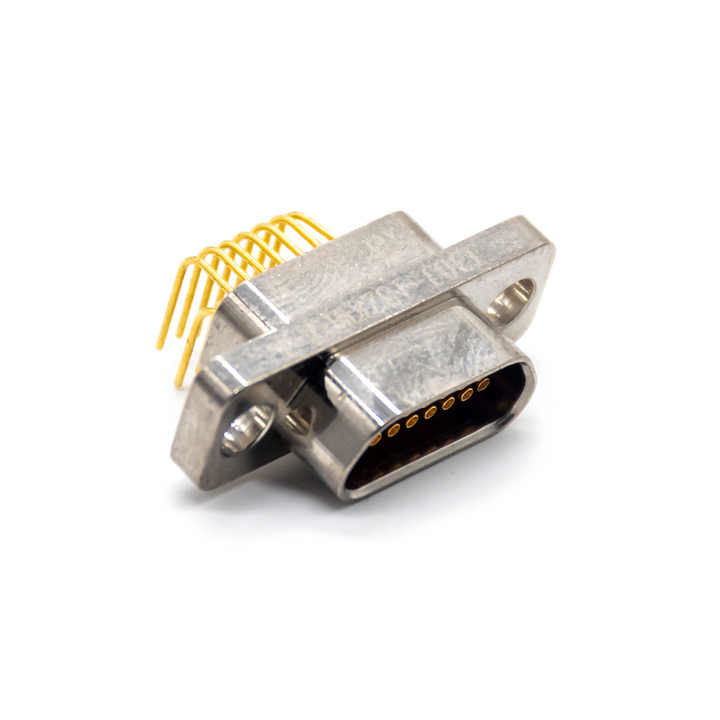

J30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination

J30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination
J30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination
J30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination J30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: J30J-100ZKW
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Contact Pitch: 2.54 Mm Withstanding Voltage: 500VAC
Current Rating: 3 Amps Contact Spacing: 1.27mm
Center Conductor: Copper Alloy, Gold Plating Housing Material: Thermoplastic
Termination Style: Solder Material: Metal
Highlight:

J30J connector 2.54mm pitch

,

J30J connector solder termination

,

J30J connector 500VAC rated

J30J-100ZKW J30J Connector 100 Contact 2.54mm Pitch 500VAC Solder Termination
Product Description
The J30J Connector is a high-quality Micro-D MIL-Spec Connector designed for precision connectivity in demanding applications. Featuring a 2.54mm contact pitch with gold plating, this connector ensures reliable data transmission. The thermoplastic housing provides durability while the metal construction offers stability and long-lasting performance. With a compact 1.27mm contact spacing, it's ideal for space-constrained applications in aerospace, military, and industrial environments.
Key Features
  • Product Name: J30J Connector
  • Material: Metal construction with thermoplastic housing
  • Grid Distance: 2.54×2.54
  • Contact Spacing: 1.27mm
  • Operating Temperature Range: -55°C to 105°C
  • Contact Gender: Female/female configuration
Technical Specifications
Parameter Value
Current Rating 3 Amps
Contact Gender Female/Female
Operating Temperature Range -55°C to 105°C
Grid Distance 2.54×2.54
Contact Pitch 2.54 mm
Housing Material Thermoplastic
Material Metal
Center Conductor Copper Alloy, Gold Plating
Termination Style Solder
Withstanding Voltage 500VAC
Applications
The J30J connector is ideal for electronic devices requiring high-speed data transmission and power delivery, including laptops, smartphones, and tablets. Its certified design (CE, RoHS, REACH, ISO9001:2015) makes it suitable for industrial equipment and computer systems. The wide operating temperature range (-55°C to 105°C) ensures performance in various environmental conditions.
Support and Services
Our comprehensive technical support includes installation guidance, troubleshooting, and maintenance assistance. Access online resources including technical documents and FAQs for quick solutions. We provide ongoing support throughout the product lifecycle to ensure optimal performance.

Tag:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
