| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE ROHS SGS ISO:9001-2015 |
| Model Number: | FGG.00.304.CLAD35Z |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Push Pull Connector | Model: | FGG |
|---|---|---|---|
| Shell Size: | 0B | Gender: | Male, Female |
| Application: | Medical, Machines, Military, Audio& Video, Automative | Type: | Compatible With Lemo Connector B K S Series, XLR, Self-locking Socket |
| Insulator: | PPS, PEEK | Shell Material: | Copper With Chrome Plated |
| Color: | Silver, Black | Contact No.: | 3 , 4, 5, 6, 7, 8,10.12.16.19pins |
| Endurance: | 5000 Times Push Pull | IP Ranking: | IP50 |
| Contact Type: | Solder Contacts | Contacts Material: | Brass With Gold-plated |
| Export Port: | SHENZHEN | Cable Assembled Or Not: | Yes |
| Highlight: | electronics component connectors,electronic cable connectors |
||
Part No.: |
FGG.00.304.CLAD35Z/RM-FGG-0BC-304JS35Z |
Prct Description: |

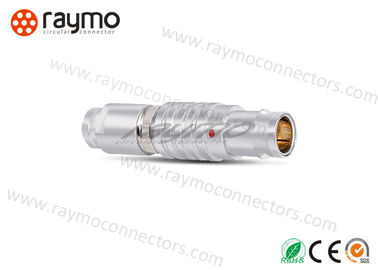

00B Series cable mount push pull connector, FGG plug, 4pin male contact, 35 cable collet, nut for a bend relief, one key, 0 degree, natural chrome plated shell in brass |
| 1 | Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector |
| 2 | can be 100% compatible with original connector |
| 3 | can be with different degree , such us 30, 45, 60, 90, 135, |
| 4 | can plated with white or black chrome, |
| 5 | 360 angle screening for full EMC shielding. |
| 6 | ISO:9001-2015 CE RoHS2.0 SGS REACH |
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | 5000 mating cycles |
is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
