| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ISO:9001-2015 CE ROHS SGS |
| Model Number: | S102 A054 -130 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | 5000Pieces/ Week |

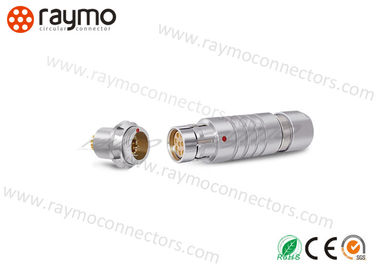

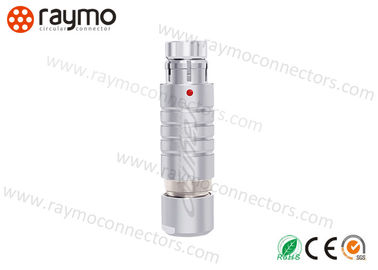

| Prct Name: | Push Pull Self-locking Connector | Model: | Cable Mount Plug |
|---|---|---|---|
| Shell Size: | 102 0F Series | Contact No.: | 2, 3 , 4, 5, 6, 7, 8,10.12.16.19pins |
| Application: | Medical, Machines, Military, Audio& Video, Automative | Gender: | Male, Female |
| Type: | Compatible With Fischer Connector | Insulator: | PPS, PEEK |
| Shell Material: | Copper With Chrome Plated | Color: | Silver, Black |
| Endurance: | 5000 Times Push Pull | IP Ranking: | IP50 |
| Contact Type: | Solder Contacts | Contacts Material: | Brass With Gold-plated |
| Export Port: | SHENZHEN | Cable Assembled Or Not: | Yes |
| Highlight: | waterproof wire connectors,waterproof cable connector |
||
| Series | IP | Shell Size | Contacts No. with solder & PCB type | ||||||||||
| RM-F | IP68 | 0F/102 | 2 | 3 | 4 | 5 | 7 | 9 | |||||
| 1F/103 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||
| AF/1031 | 10 | 12 | 15 ( traxial ) | 19 | |||||||||
| 2F/104 | 2 | 3 | 4 | 6 | 8 | 16 | 19 | ||||||
| 3F/105 | 7 | ||||||||||||
| Main Feature | Secure high performance push-pull Self-locking system | ||||||||||||||
| Sealed up to IP68 and Hermetic | |||||||||||||||
| 3 codes alignment Key and Polarized Keying System to avoid cross-interface. | |||||||||||||||
| 360° EMC shielded | |||||||||||||||
| High pin density contributing to equipment miniaturization | |||||||||||||||
| Robust and shock resistant designs | |||||||||||||||
| Functional in a wide temperature range from -65°C to +250°C | |||||||||||||||
| Available solder and PCB or right angle PCB contact. | |||||||||||||||
| ISO:9001-2015, CE ,RoHS2.0, SGS, Reach | |||||||||||||||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) |
> 75 dB [ at 10 MHz] |
| IP Rating | IP 68 | Certifications |
ISO9001 CE ROHS2.0 SGS |
is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty
