Name: Lemo Push Pull Circular Connectors
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: FNG.0B.307.CLAD52Z
Price: 11.10 USD
Availability: InStock

Lemo Push Pull Circular Connectors

Basic Information

Place of Origin:	SHENZHEN, CHINA
Brand Name:	RAYMO
Certification:	REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Model Number:	FNG.0B.307.CLAD52Z

Minimum Order Quantity:	5 Piece/Pieces
Price:	Negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7wds
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	5000Pieces/ Week

Contact Now

Type:

Connector FNG LEMO/

Series:

Circular Push Pull Connectors

Contact No.:

2,3,4,5,6,7,9pins

Insulator:

PPS/PEEK

Application:

Information System

IP Ranking:

IP50

Endurance:

5000 Times Push Pull

Connector Type:

Welding/PCB Straight And Elbow Contacts

Highlight:

electronics component connectors

cable connector plug

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

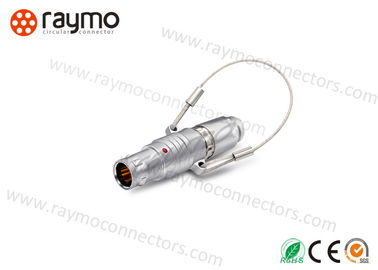

Lemo Push Pull Circular Connectors FNG 2-9 Pin GPS Connector With Wire Rope

RAYMO P/N	Lemo P/N	P/N
RM-FNG-0BC-306-JS52Z	FNG.0B.307.CLAD52Z	W20L0C-P07

alternative with LEMO B FNG and L G1series.

Description

100% compatible with LEMO B series / L series

Lemo FNG 307 7pin GPS connector

multipole types 2 to 32 contacts

Female solder contacts,PCB contacts are available with straight and elbow contacts

0B 1B 2B 3B size for your option

high packing density for space savings

5000 times push pull

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
00	2	3	4
0B	2	3	4	5	6	7	9
1B	2	3	4	5	6	7	8	10	12	14	16
2B	2	3	4	5	6	7	8	10	12	14	16	19
3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
4B	7	10	24

Why choose us:

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
