Prct Description
RM-U Series Ultimate series IP68 waterproof Metal circular push pull connectors
Part No.:
|

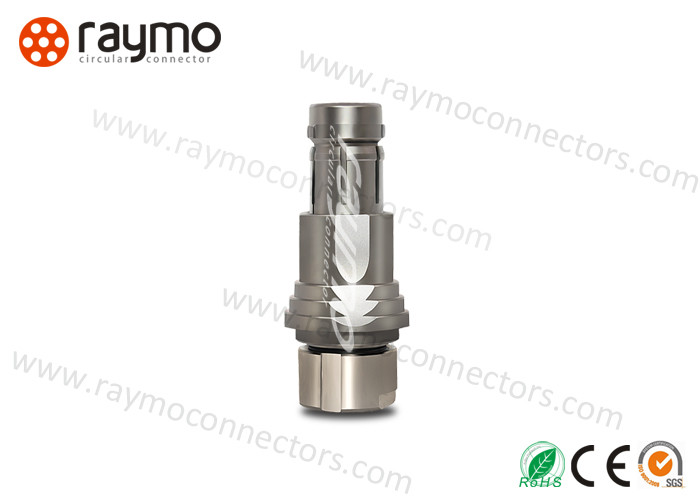

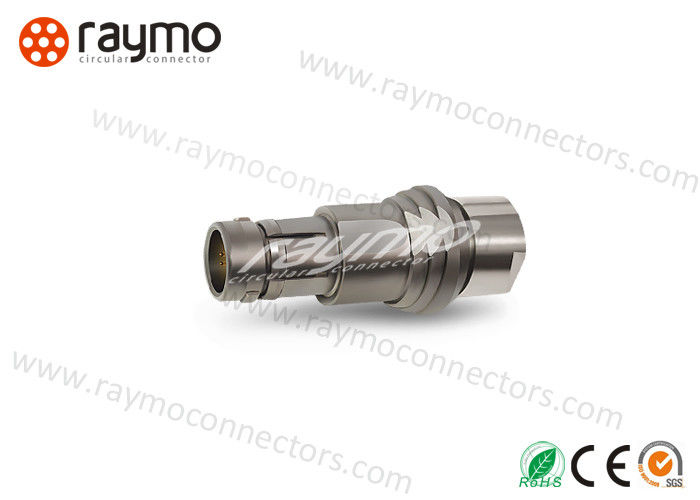

UP01L07M010SBK1 / RM-FSX-0U1S-P10JS52
|
Prct Description:
|
0U(=07) size cable mount push pull connector, FSX model plug, 10pin male contact, code 1, gun-color chrome plated shell in brass
|
Waterproof Push pull locking metal connector U-series connector, cable to cable connector, free socket, inline connector
| Main Futures |
| 1 |
Secure high performance IP68 waterproof push-pull Self-locking system |
| 2 |
can be 100% compatible with original connector |
| 3 |
can be with different code, code 1,2,3 |
| 4 |
360 angle screening for full EMC shielding. |
| 5 |
Available solder and PCB or right angle PCB contact. |
| 6 |
can plated with white or black chrome. |
| 7 |
SO:9001-2015, CE ,RoHS2.0, SGS, Reach |
| Technical Characteristics |
| Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
| Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144 hr |
| Climatical Category |
50/175/21 |
Shielding (min) |
> 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating |
IP 68 |
Endurance(shell) |
≥5000 mating cycles |
| Shell size |
Contacts no. ( Both with Solder & PCB type ) |
| 0U(=07) |
2 |
3 |
4 |
5 |
7 |
9 |
10 |
13 |
|
|
|
| 1U(=08) |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
|
