Name: S SS 102 103 1031 104 cable IP68 waterproof connectors,Fischer connector,2pins SS 102 A051 130+
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: SS-0F1C-P02JS50
Price: 11.98 USD
Availability: InStock

S SS 102 103 1031 104 cable IP68 waterproof connectors,Fischer connector,2pins SS 102 A051 130+

Basic Information

Place of Origin:	SHENZHEN,CHINA
Brand Name:	RAYMO
Certification:	ISO9000:2015/ CE/ ROHS/ SGS/ REACH
Model Number:	SS-0F1C-P02JS50

Minimum Order Quantity:	5Piece/Pieces
Price:	Negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7wds
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	5000Pieces/ Week

Contact Now

Type:

Fischer Circular Push Pull Connector

Shell Model:

SS Short Cable Mounted Plug

Shell Size:

0F/102

Contact No.:

2,3,4,5,7,9pins

Color:

Natural / Black Chrome

Connects Type:

Solder Contacts With PPS/PEEK Insulator

Application:

Audio & Video

IP Ranking:

IP68

Highlight:

waterproof wire connectors

waterproof electrical connectors

S SS 102 103 1031 104 cable IP68 waterproof connectors,Fischer connector,2pins SS 102 A051 130+

Parts No.:RM-SS-0F1C-P03JS50= SS 102 A051 130+

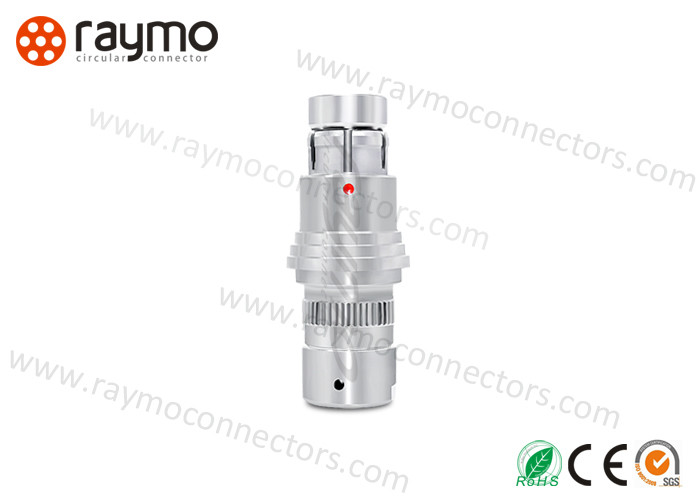

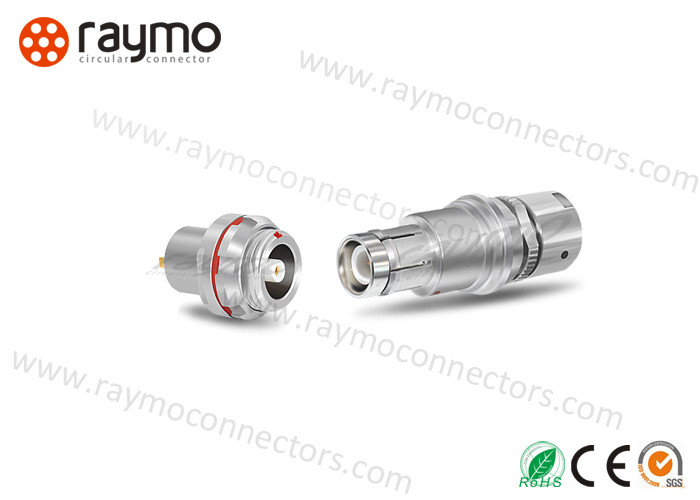

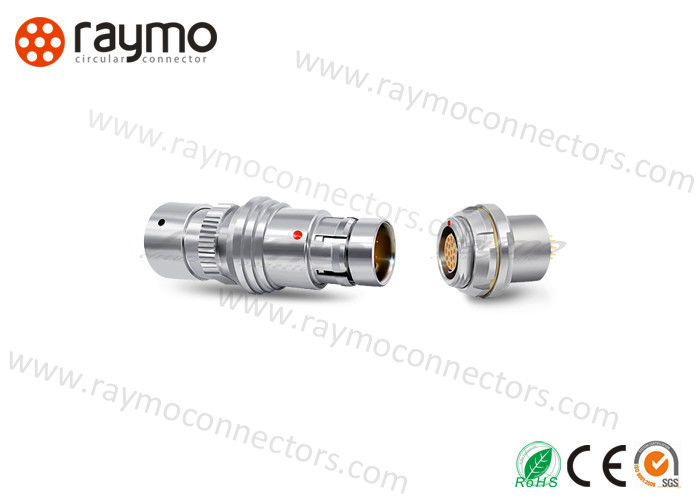

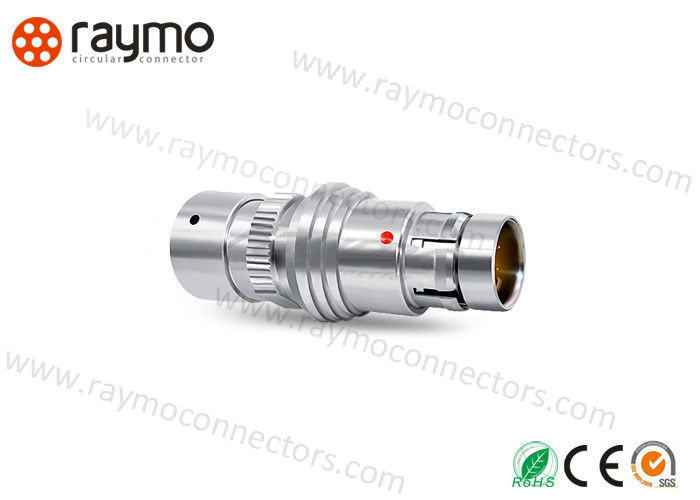

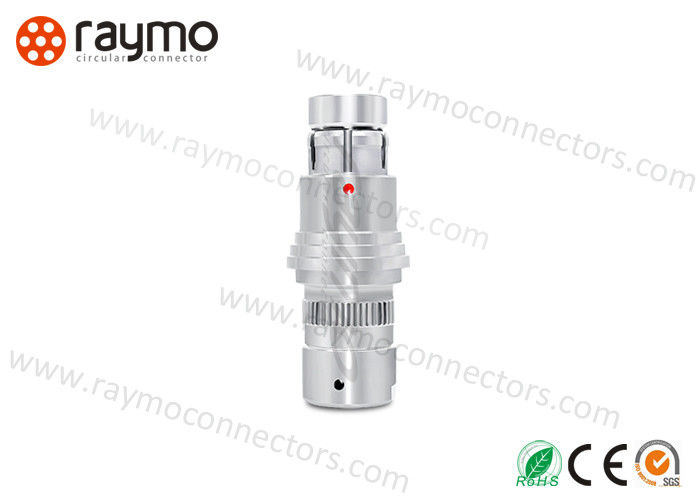

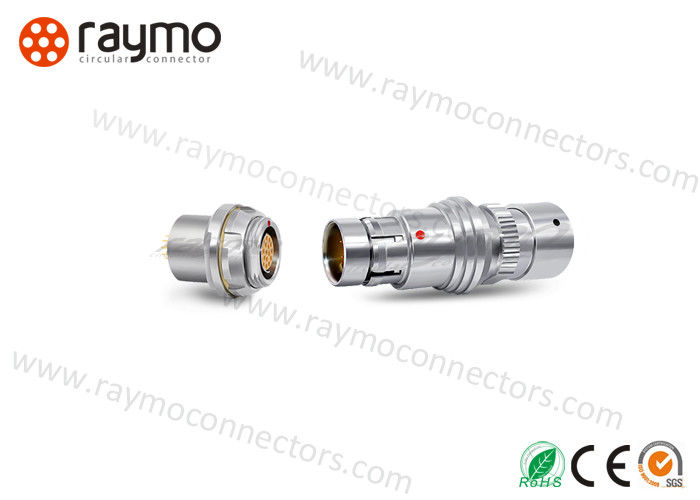

Description:Compatible Fischer SS 102 2 Pin Circular Connector, male plug,solder type, natural chrome plated brass , 50 cable collet

Features
1	100% substitute with original Fischer
2	different shell size is available from 102,103,1031 and 104
3	Sealed to IP68 and Hermetic
4	360° EMC shield
5	Available Solder,PCB or right angle PCB contacts
6	Robust and shock resistant designs

Series	contact no.
0F/102 series	2,3,4,5,6,7,9
1F/103 series	2,3,4,5,6,7,8,10,12
AF/1031 series	10,12,15,19
2F/104 series	2,3,4,5,6,8,16,19

RAYMO is a manufacturer that:

♣ Manufacturing & exporting various metal & plastic circular connectors and cable assembly

♣ All prcts can be 100% compatible with original LEMO • FISCHER • • HIROSE • BINDERS and Military 38999

♣ Cable Assembly can be designed according customer real needs

♣ All the prcts we got CE, ROHS, SGS,ISO9000 certificate

♣ OEM connector and Cable assembly

• All the items can work normally after 5000 times mating

We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-sub, USB, RJ45, Dtap, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO

S SS 102 103 1031 104 cable IP68 waterproof connectors,Fischer connector,2pins SS 102 A051 130+ 0

S SS 102 103 1031 104 cable IP68 waterproof connectors,Fischer connector,2pins SS 102 A051 130+ 1

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz] > 40 dB [ at 1 GHz]
IP Rating	IP 68	Certifications	ISO9001 CE ROHS2.0 SGS

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Why choose us:

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
