| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RM-WSO-0F1C-P04JS41Z |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 pieces per week |
| Prct Description:: | WSO Elbow Cable Mount Plug | Shell Size:: | 102/0F (103/1F, 1031/AF, 104/2F Are Available) |
|---|---|---|---|
| Application:: | Medical, Machines, Military, Audio& Video, Automative | Contact No.:: | 4 Pins (3, 4, 5, 7 ...... 19 Pins Are Available) |
| Insulator:: | PPS / PEEK | Keying Code:: | Code 1 (Code 2, 3 Are Available) |
| Contact Type::: | Solder | Outer Shell Material:: | Brass With Chrome Plated |
| Color:: | Silver / Black | Contact Material:: | Brass With Gold Plated |
| IP Rating:: | IP68 | Endurance:: | 5000 Cycles |
| Cable Assembly:: | Yes | Export Port: | Shenzhen |
| Highlight: | waterproof electrical connectors,waterproof cable connector |
||
P/N: RM-WSO-0F1C-P04JS41Z / WSO 102 A053 - 132

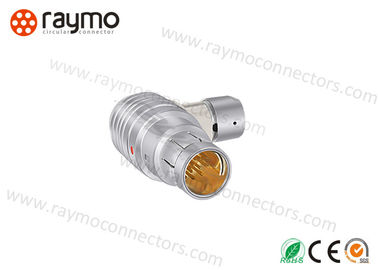

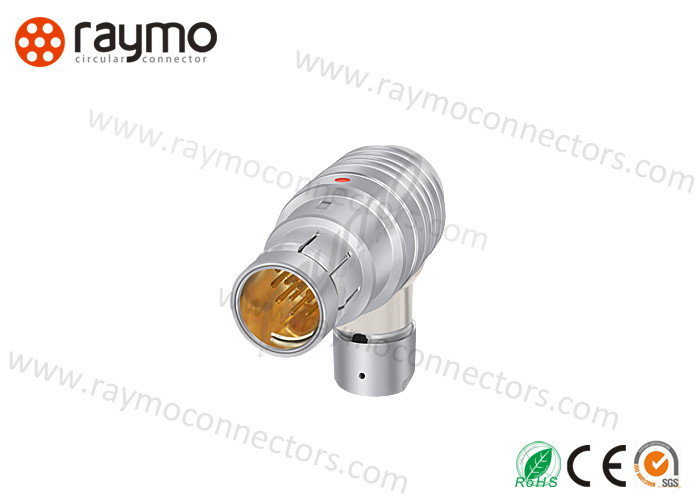

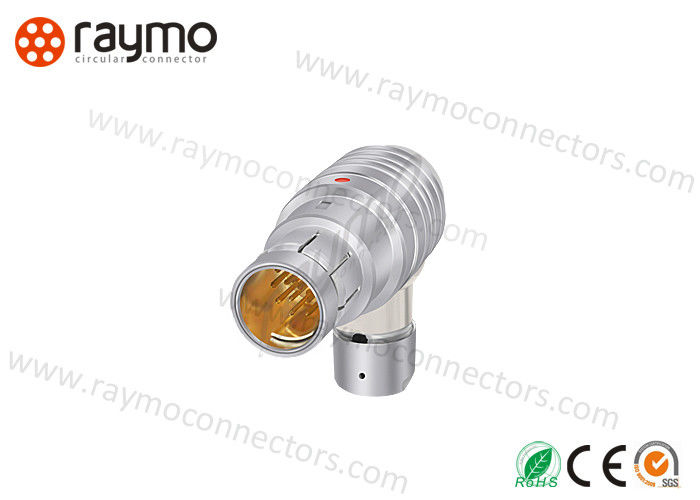

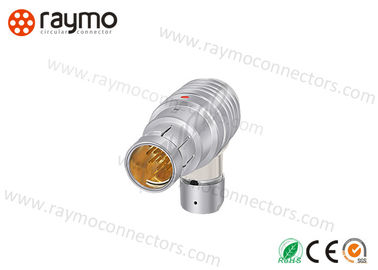

Description: WSO 102/0F series elbow 90 degree cable mount connector, keying code 1, 4pin male contacts, in solder type, PPS insulator, outer shell in natural chrome plated brass, cable collet for 3.6-4.1mm cable, nut for fitting a bend relief.
Main features
| Shell Model | Elbow plug | Shell Size |
102 / 0F (103, 1031, 104 are available) |
| Contact Type | Male solder contacts | Contact No. | 2, 3, 4, 5 …… 19 pins |
| Endurance | >5000cycles | Salt spray corrosion test | >96h |
| Humidity | Up to 95% at 60°C | Protection Index (mated) | IP68 |
| Temperature range | -55°C~250°C | Climatical category | 55/175/21 |
| Resistance to vibration | 10-2000Hz,15g | Shielding |
>95db at 10MHZ >80db at 1GHZ |
| Shock resistance | >100g, 6ms | Certification |
CE, RoHS, SGS ISO9001:2015 |
Photo & Dimensions
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
1. OEM & ODM services are welcome.
2. Free sample is available.
3. Sample order is accepted.
4. Respond within 24 hours for your inquiry and any other questions.
5. Follow up your shipment and trace it every two days until you get it.
6. Provide professional solutions once you have any questions after you received the goods.
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
