Prction description:

Part No: RM-SFA-1F1C-P05JS / SFA 103 A 054 -130

Description: SFA 103/1F series straight plug, keying code 1, 5pin fixed panel mount plug , in solder type, PPS insulator, outer shell in natural chrome plated brass

Mechanical and Climatical Characteristics
Characteris		Value	Standard
Endurance:		>5000cycles	IEC60512-5test9a
Humidity:		Up to 95% at60°C
Temperature range:		-55°C, +250°C
Resistance to vibra:		10-2000Hz,15g	IEC 60512-4 test 6d
Shock resistance:		100g, 6ms	IEC 60512-4 test 6c
Salt spray corrosion test:		>96h	IEC 60512-6 test 11f
Protection index (mated):		IP68	IEC 60529
Climatical categery:		55/175/21	IEC 60068-1
Electrical Characteristics
Characteris		Value	Standard
Shielding efficiency	at 10 MHZ	>95 dB	IEC 60619-1-3
	at 1 GHz	>80 dB	IEC 60619-1-3

Main features:

Easy mating, can be blind-mated
Increased safety and user friendliness
Convenient grip even with gloves
Increased equipment life span
Robust and shock resistant designs
Compact and lightweight construction
High pin density and hybrid contacts
High performance connectors
Sealed up to IP68 and corrosion resistant
Sterilizable

Photo & Dimensions:

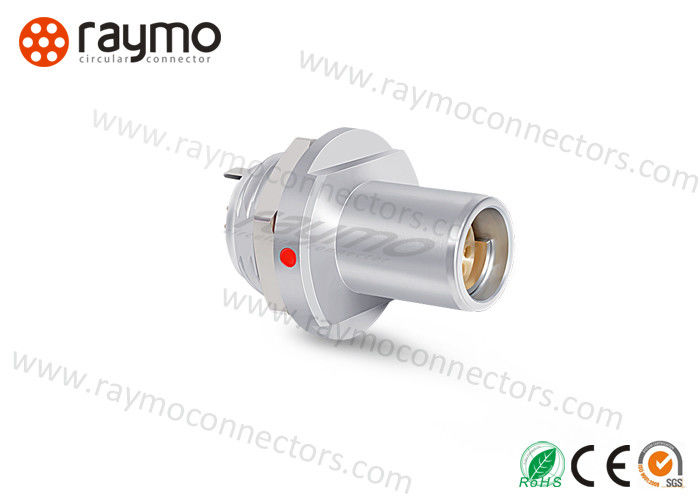

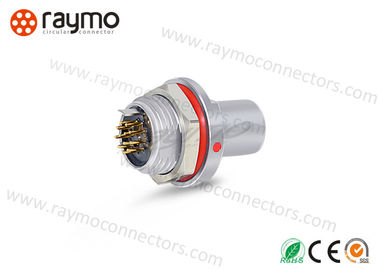

102 103 Series 2pin to 16pin Hermetic Non Locking Panel Mount Male Connector SFA 103 A 054 1

Application

RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.

About us

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.

Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.

FAQ

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.

2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.

3. Free sample
Raymo: Available. Any needs, please contact us.

4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.

5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .

6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	RAYMO
Certification:	CE / RoHS / SGS / ISO9001:2015
Model Number:	RM-SFA-1F1C-P05JS

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	PE bag & carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, L/C
Supply Ability:	5000 pieces per week

Prct Type::	Hermetic Panel Mount Plug	Shell Size::	103/1F, 102/0F
Application::	Medical, Machines, Military, Audio& Video, Automative	Contact No.::	5 Pins (2, 3, 4 …… 16 Pins Are Available)
Insulator::	PPS / PEEK	Outer Shell Material::	Brass With Chrome Plated
Color::	Silver / Black	Contact Material:	Brass With Gold Plated
Contact Type::	Solder	IP Rating::	IP68
Endurance::	5000 Cycles	Cable Assembly::	Yes
Manufacturer::	Yes	Custom Service::	Shenzhen
Highlight:	waterproof wire connectors , waterproof electrical connectors
