| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE ROHS SGS ISO:9001-2015 |
| Model Number: | FHG.2B.316.CLAD52Z |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Push Pull Connector | Model: | FHG Elbow Cable Mount Plug |
|---|---|---|---|
| Contact No.: | 2-32 Pins | Shell Size: | 00,0B,1B,2B,3B |
| Insulator: | PPS, PEEK | Type: | Compatible With Lemo Connector B Series |
| Color: | Silver, Black | Endurance: | 5000 Times Push Pull |
| Contacts Material: | Brass With Gold-plated | Cable Assembled Or Not: | Yes |
| Highlight: | electronics component connectors,cable connector plug |
||
Part No.: |
FHG.2B.316.CLAD52Z / RM-FHG-2BC-316JS52Z |
Prct Description: |

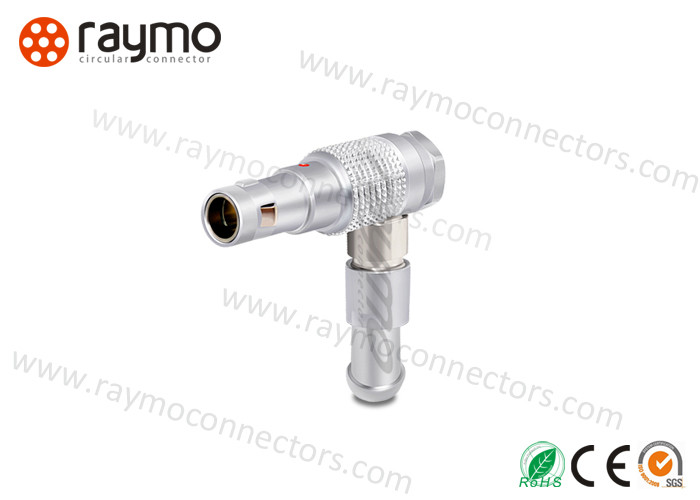

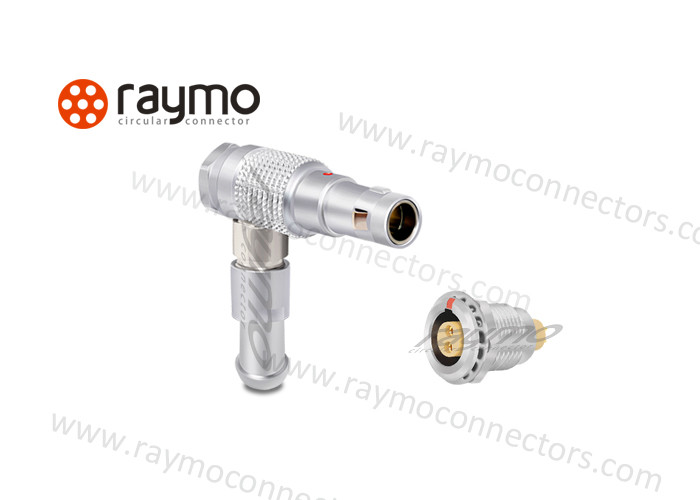

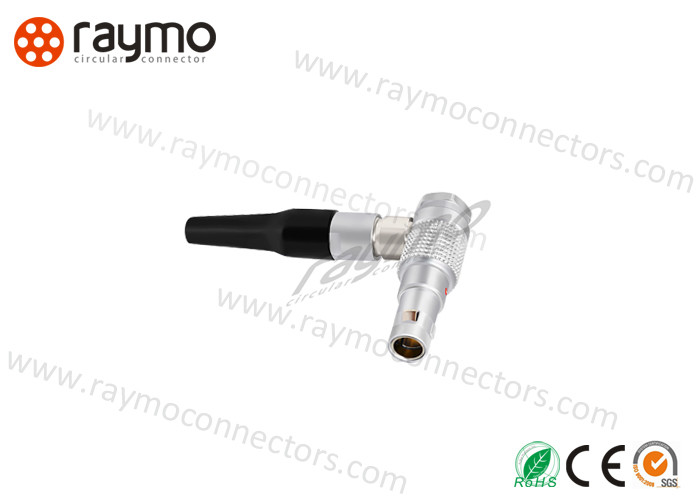

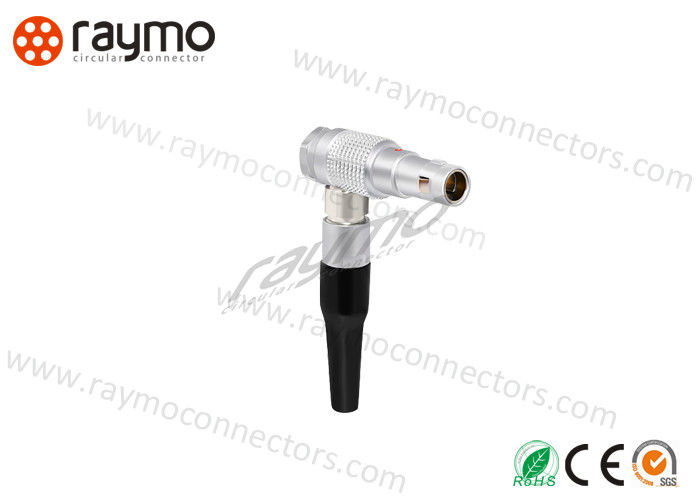

2B size cable mount push pull connector, FHG elbow plug, 16pin male contact, 52 cable collet, nut for a bend relief, one key, 0 degree, natural chrome plated shell in brass |
Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector
| Main Futures | |
| 1 | Secure high performance push-pull Self-locking system |
| 2 | can be 100% compatible with original connector |
| 3 | can be with different degree , such us 30, 45, 60, 90, 135, |
| 4 | can plated with white or black chrome, |
| 5 | Available solder and PCB or right angle PCB contact. |
| 6 | 360 angle screening for full EMC shielding. |
| 7 | SO:9001-2015, CE ,RoHS2.0, SGS, Reach |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | ≥5000 mating cycles |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | |||||||||||
| 00 | 2 | 3 | 4 | |||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | |||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | |
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 |
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 |
| 26 | 30 | 32 | ||||||||||
| 4B | 7 | 10 | 24 | |||||||||
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
