| Place of Origin: | SHENZHEN,CHIAN |
|---|---|
| Brand Name: | RAYMO |
| Certification: | SGS, RoHS, Reach, ISO:9001-2015, CE |
| Model Number: | D 102 A053 130 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | PE Bag & Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C |
| Supply Ability: | 5000Pieces/ Week |
| Type: | Fischer Alternative Circular Connectos | Contacts No.: | 2.3.4.5.6....19pins |
|---|---|---|---|
| Shell Size: | 102, 103, 1031, 104 | Insulator: | PPS, PEEK |
| Color Of Shell: | Black Or Natural Chrome Plated Brass | Application: | Test And Measurement |
| Highlight: | waterproof electrical connectors,waterproof cable connector |
||
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

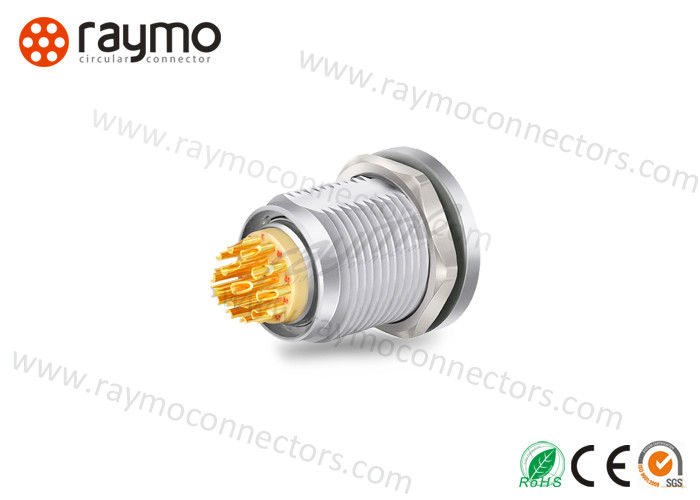

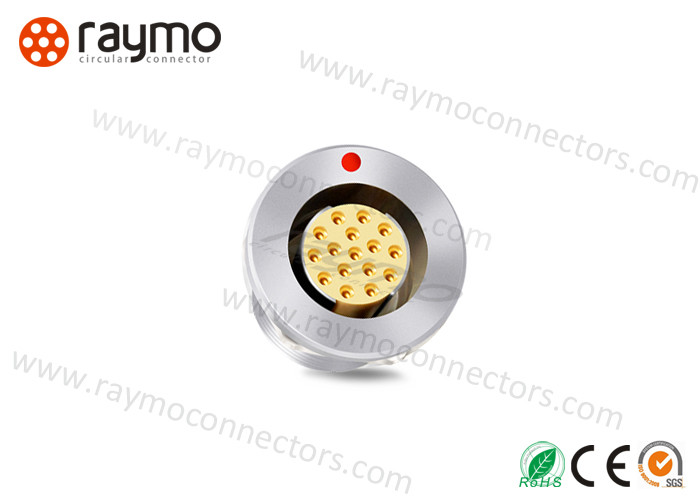

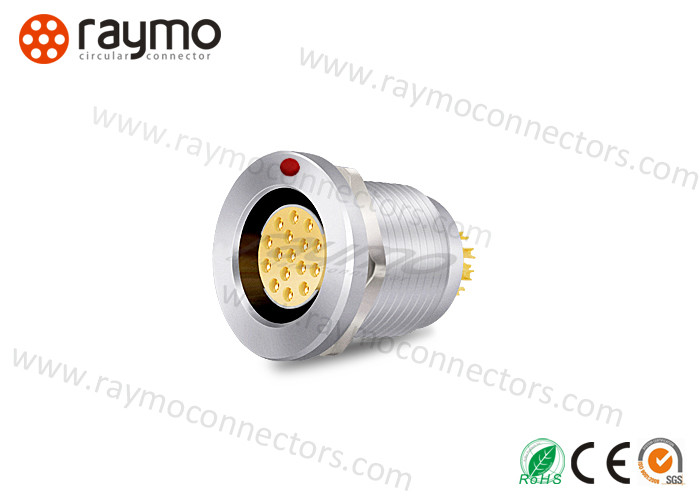

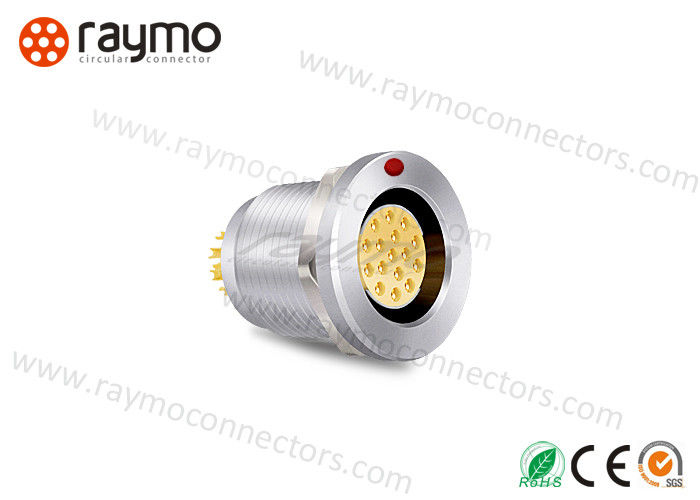

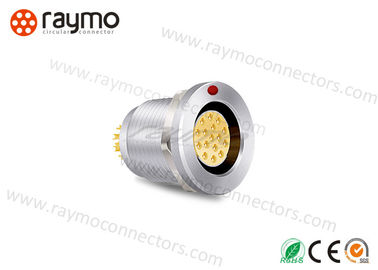

D type panel mount socket,IP 50 ONLY
D102 A053 130=RM-D-0F1C-P04KS
D type socket,fixed receptacle, nut fixing, 0F/102 series, code 1, multiploes 4pins, outer shell in natural chrome-plated brass, PPS insulator, female PCB contacts,IP68.
Terminal can be Female or Male contacts with solder or PCB contacts
| 1 | Push pull locking metal connector B-series connector, cable to cable connector, free socket, inline connector |
| 2 | can be 100% compatible with original Fischer connector |
| 3 | can be with code degree,code 1, code 2, code 3
Alignment Key and Polarized Keying System to avoid cross-interface |
| 4 | can plated with white or black chrome |
| 5 | 360 angle screening for full EMC shielding. |
| 6 |
ISO:9001-2015 CE RoHS2.0 SGS REACH |
| 7 | Compact and lightweight construction |
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 55/175/21 | Shielding (min) | > 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | ≥5000 mating cycles |
If you have ordered this shell connector and know the original model P/N,please tell us.We will directly offer you our correspinding one.
If you don't know much about the connector,please make choose according the following factors:
The use of enviroment,indoor or ourdoors,waterproof or not
The panel hole size, to seclect the approproate plug and socket of right dimension
the current voltage and the realization of the function, to determin the cores
seclect the appropriate clam diameter and sheath
according to the actual needs of different angles of the keys, to determin the keying
Solve the original brand's high cost and long lead time!
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty100%
