| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE ROHS2.0 ISO9001 REACH |
| Model Number: | FGG.2B.305.CLAD72Z |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, D/A, D/P,L/C, MoneyGram, Western Union |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Push Pull Connector | Model: | Cable Plug FGG Assembled With RS232 |
|---|---|---|---|
| Shell Size: | 2B | Contact No.: | 5pin Male Contact |
| Insulator: | PPS, PEEK | Shell Color: | Silver Chrome Black Chrome |
| Highlight: | electronics component connectors,electronic cable connectors |
||

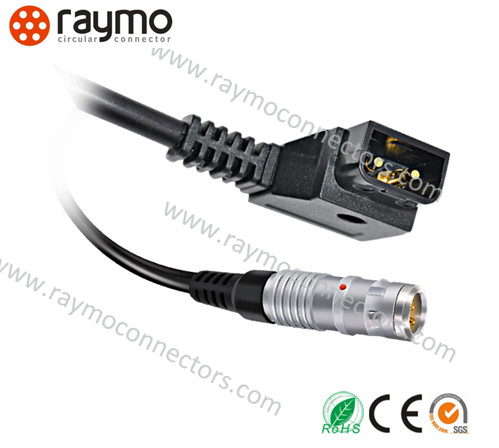

FGG.2B.305.CLAD72Z
Cable mount plug, 2B series shell size, 5pin male contact, 72cable collet for OD6.2-7.2mm cable, nut for a bend relief, 1 key, 0 degree, brass shell with natural chrome plated
assembledd with RS232 by overmoudling
cable can be twisted wire depend on custom options
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | 5000 mating cycles |
2020.11 Electronica Munich, Germany
2019.9.13-9.15 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
