| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RM-FGG-1BC-305JS52 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per week |
| Connector Style: | FGG Straight Plug | Series: | 1B Series (00, 0B, 2B, 3B Series Are Available) |
|---|---|---|---|
| Contact No.: | 5 Pin （2, 3, 4, 6 ...... 32 Pin Are Available) | Keying: | 1 Key (G) (2 Keys Are Available) |
| Housing Material: | Brass With Natural/black Chrome Plated | Contact Materials: | Brass With Gold Plated |
| Insulator: | PPS | IP Rating: | IP50 |
| Manufacturer: | Yes | OEM & ODM: | Yes |
| Cable Assemblies: | Yes | Export Port: | Shenzhen |
| Highlight: | electronics component connectors,cable connector plug |
||
P/N: RM-FGG-1BC-305JS52Z (FGG.1B.305.CLAD52Z)

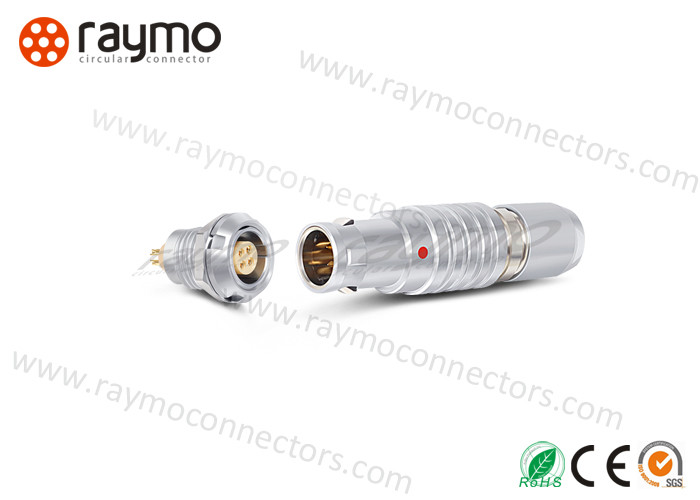

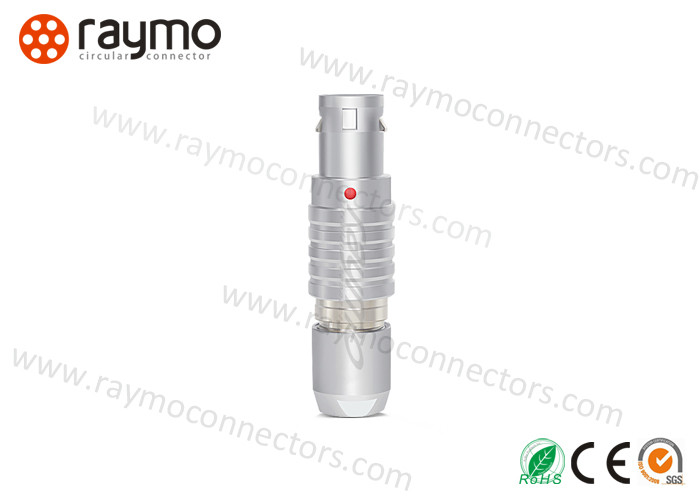

Description: FGG 1B series straight plug, 1 key, 0 degree, 5pin male solder contacts, outer shell in natural chrome-plated brass, PPS insulator, 52 cable collet for 4.2-5.2mm cable, standard round nut.
| Shell size | Contacts No. in solder / PCB type | One key | Two keys in different degree |
| 00B | 2, 3, 4 | 0° (G) | 30° (A), 60° (B), 45° (J) |
| 0B | 2, 3, 4, 5, 6, 7, 9 | 0° (G) | 30° (A), 60° (B), 90° (C), 135° (D), 145° (E), 155° (F), 45° (J), 70° (K), 80° (L), 110° (M) |
| 1B | 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16 | 0° (G) | 30° (A), 60° (B), 90° (C), 135° (D), 145° (E), 155° (F), 45° (J), 70° (K), 80° (L) |
| 2B | 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19, 26 | 0° (G) | 30° (A), 45° (B), 60° (C), 95° (D), 120° (E), 145° (F), 37.5° (J), 52.5° (K), 70° (L) |
| 3B | 3, 4, 6, 7, 8, 10, 12, 14, 16, 18, 21, 30 | 0° (G) | 30° (A), 45° (B), 60° (C), 95° (D), 120° (E), 145° (F), 37.5° (J), 52.5° (K), 70° (L) |
| Technical Characteristics | |||
| Endurance | >5000 cycles | Salt spray corrosion test | >96h |
| Humidity | Up to 95% at 60℃ | Protection Index (mated) | IP50 |
| Temperature Range | -55°C~250°C (-20°C~100°C for waterproof type) |
Climatical category | 55/175/21 |
| Resistance to Vibration | 10-2000Hz,15g | Shielding |
>75db at 10MHZ
>40db at 1GHZ
|
| Shock Resistance | >100g, 6ms | Certification | CE, RoHS, SGS ISO9001:2019 |
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
PE bag & Carton
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
