| Place of Origin: | SHENZHEN, CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ROHS2.0, REACH, CE, SGS, ISO9001:2015 |
| Model Number: | RM-WSO-1F1S-P14JS52 |
| Minimum Order Quantity: | 1PC |
| Price: | Negotiable |
| Packaging Details: | PE BAG+ CARTON |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs per week |
| Shell Size: | 0F(102), 1F(103), AF(1031), 2F(104), 3F(105) | Insulator Material: | PEEK, PPS |
|---|---|---|---|
| Gender: | Female | Pin: | 2-19pins |
| IP Rating: | IP68 | ||
| Highlight: | waterproof electrical connectors,waterproof cable connector |
||
Part No.: |
WSO.103A062-140 / RM-WSO-1F1S-P12JS52 |
Prct Description: |

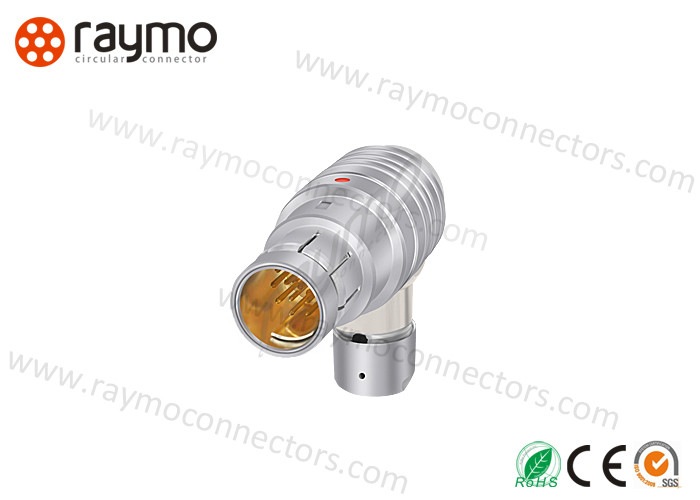

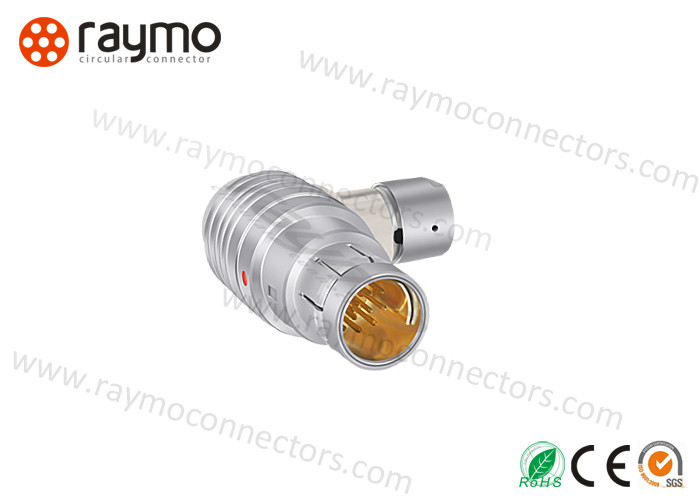

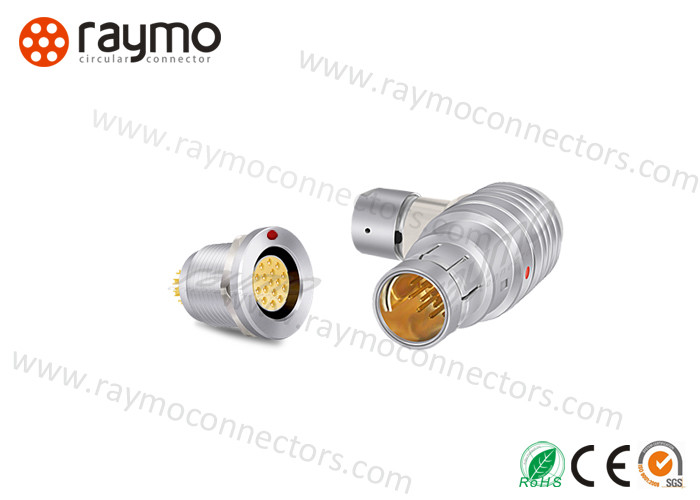

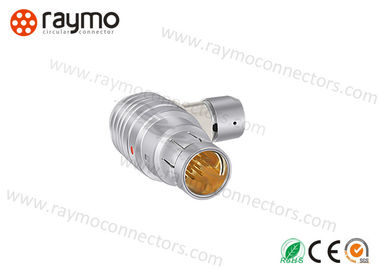

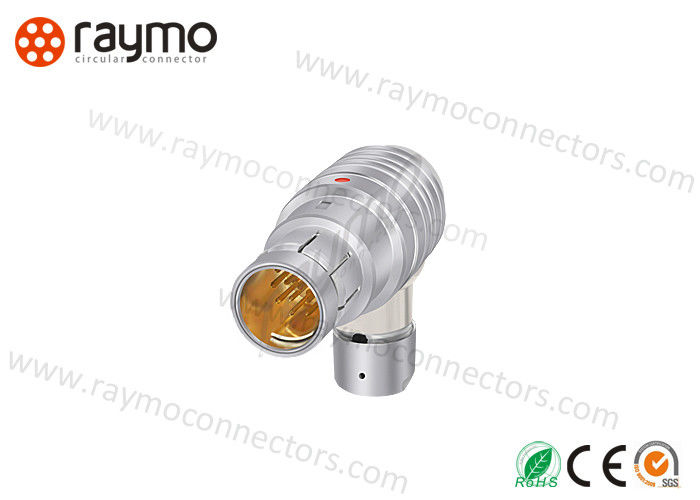

1F(=103) size,WSO elbow cable mount plug connector, 12pin male contact, code 1, black-color chrome plated shell in brass, 52 size cable collet for 4.2-5.2mm |
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144 hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
| 2020.11 | Electrnica Munich, Germany |
| 2020.9 | Testing Expo, Shanghai |
| 2019 9.24-9.26 | Testing Expo, Shanghai |
| 2018 11.12-11.15 | Electronica Munich, Germany |
| 2017 9.11-9.16 | NAB Show,Netherlands |
| 2016 4.11-4.15 | HK Fair |
| 2015 10.2-10.7 | ICEEB, Brasil |
| 2014 10.11-10.15 | HK Fair |
| 2014 4.11-4.15 | HK Fair |
1.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
2. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
3. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push pull connectors and cable assembly since 2010.
4. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
5. Free sample :
RAYMO: Available. Any needs, please contact us:
6. What about the delivery time?
Raymo: sample for 1-2 working days, mass prction for 5-10 working days.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
