| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RM-FGG-3KC-324JS12Z |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per week |
| Connector Style: | FGG Straight Plug | Series: | 3K Series (0K, 1K, 2K Series Are Available) |
|---|---|---|---|
| Contact No.: | 24 Pin （2, 3, 4, 6 ...... 24 Pin Are Available) | Keying: | 1 Key (G, 0 Degrees) (2 Keys Are Available) |
| IP Rating: | IP68 | Housing Material: | Brass |
| Housing Color: | Natural Chrome | Contact Materials: | Brass With Gold Plated |
| Rated Current: | 4 A | Contact Dia.: | 0.7 Mm |
| Insulator: | PPS Or PEEK | OEM & ODM: | Yes |
| Cable Assemblies: | Yes | Export Port: | Shenzhen |
| Highlight: | waterproof wire connectors,waterproof electrical connectors |
||
P/N: RM-FGG-3KC-324JS12Z (FGG.3K.324.CLAC12Z)

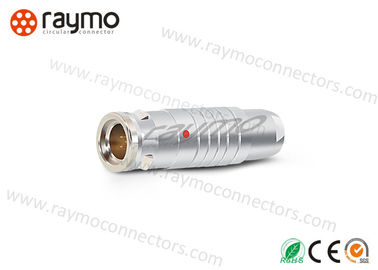

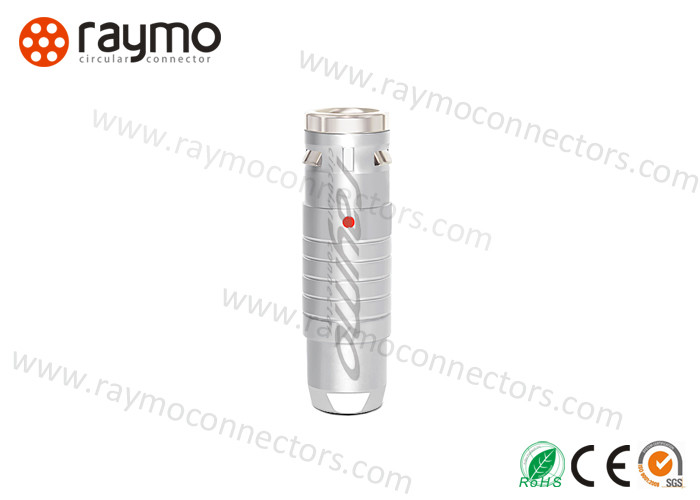

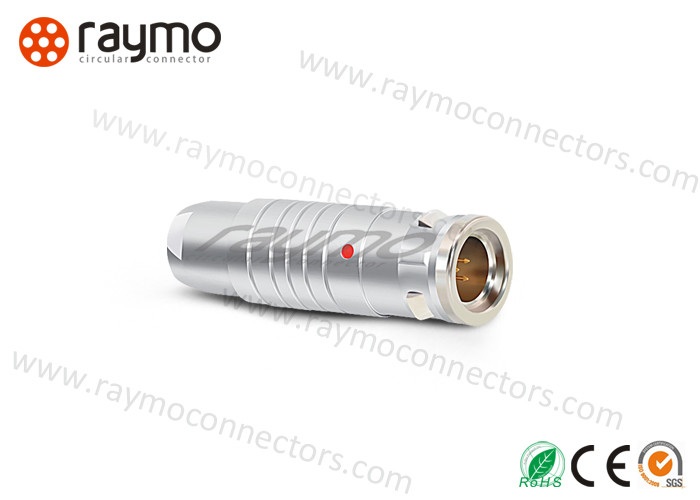

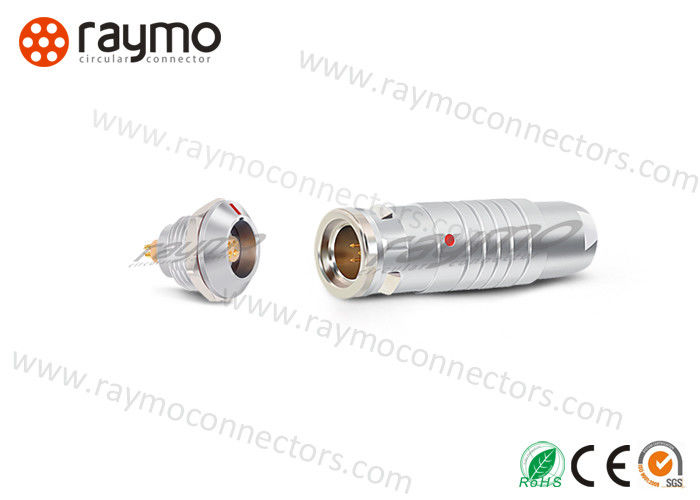

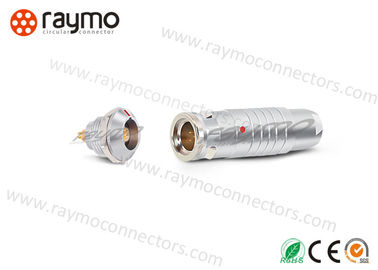

Description: FGG 3K series straight plug, 1 key, 0 degrees, 24pin male solder contacts, outer shell in natural chrome-plated brass, PPS insulator, 12 cable collet for 11.1-11.7mm cable, nut for fitting bend relief.
|
Shell size
|
Contacts No. with solder & PCB type |
|
0K
|
2 3 4 5 6 7 9
|
|
1K
|
2 3 4 5 6 7 8 10 12 14 16
|
|
2K
|
2 3 4 5 6 7 8 10 12 14 16 19 26
|
|
3K
|
3 4 6 7 8 10 12 14 16 18 21 30
|
– Watertight connection (IP 68/IP 66)
– Multipole types 2 to 30 contacts
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding
– High packing density for space savings
– Rugged housing for extreme working conditions.
– Can be 100 compatible with original connectors
– High quality with reasonable prices
| Technical Characteristics | |||
| Endurance | >5000 cycles | Salt spray corrosion test | >96h |
| Humidity | Up to 95% at 60℃ | Protection Index (mated) | IP68 |
| Temperature Range | -55°C~250°C (-20°C~100°C for waterproof type) |
Climatical category | 55/175/21 |
| Resistance to Vibration | 10-2000Hz,15g | Shielding |
>95db at 10MHZ
>80db at 1GHZ
|
| Shock Resistance | >100g, 6ms | Certification | CE, RoHS, SGS ISO9001:2019 |
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
PE bag & Carton
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
