| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE, RoHS2.0, SGS, REACH, ISO9001:2015 |
| Model Number: | FGG.0K.305.CLAD42Z |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | Western Union, L/C, D/A, D/P, T/T, MoneyGram |
| Supply Ability: | 5000 Pieces / Week |
| Type: | Circular Push Pull Waterproof Connector | Pins: | 2, 3, 4, 5, 6, 7, 9 Pins |
|---|---|---|---|
| Shell Size: | 0K, Other Shell Size Is Available | Insulator: | PPS, PEEK Is Available Too |
| Life Cycles: | 5000 Times Push Pull | Cable Asseble: | Yes, According Customer Real Needs |
| Highlight: | outdoor electrical connector,waterproof dc connector |
||

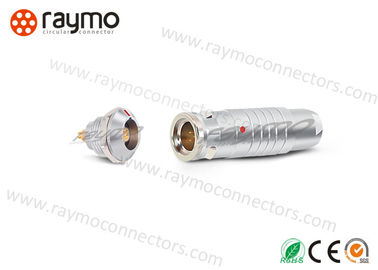

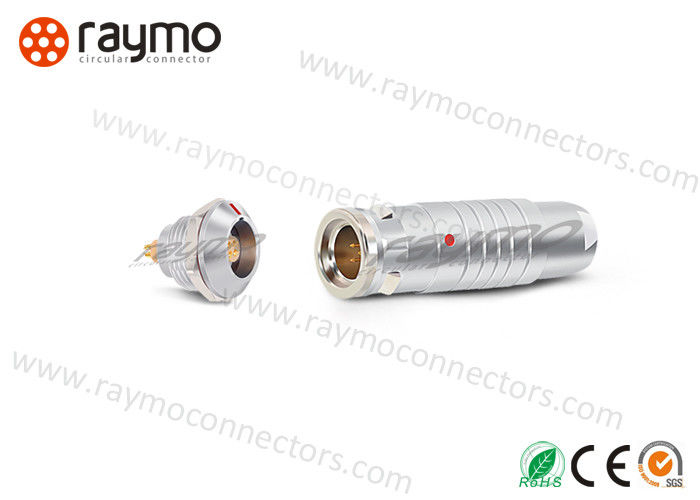

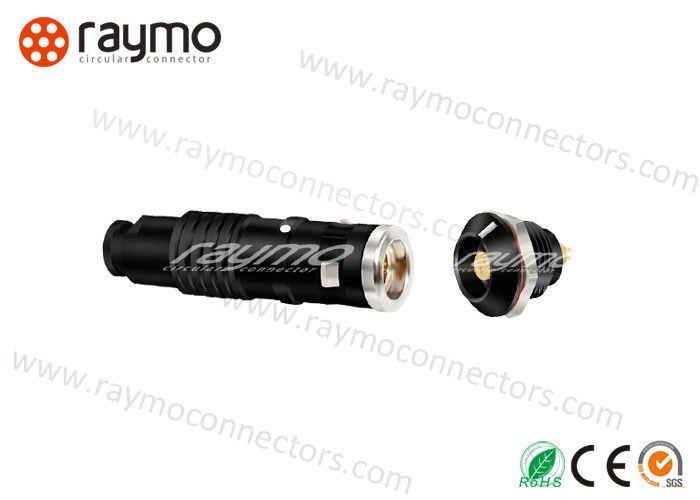

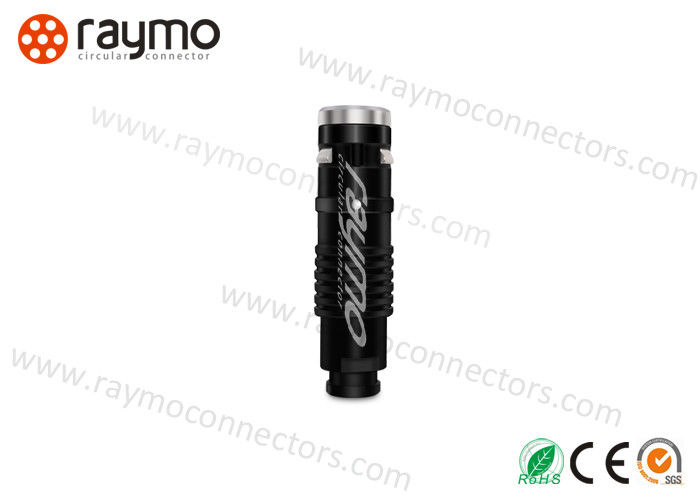

5pin Ip68 Circular Waterproof Connector Plug Socket 0k FGG EGG M14 Cable Connectors
| Size/Series | 0K (Metal (Mechanical Keying)) |
| Shell Style/Model |

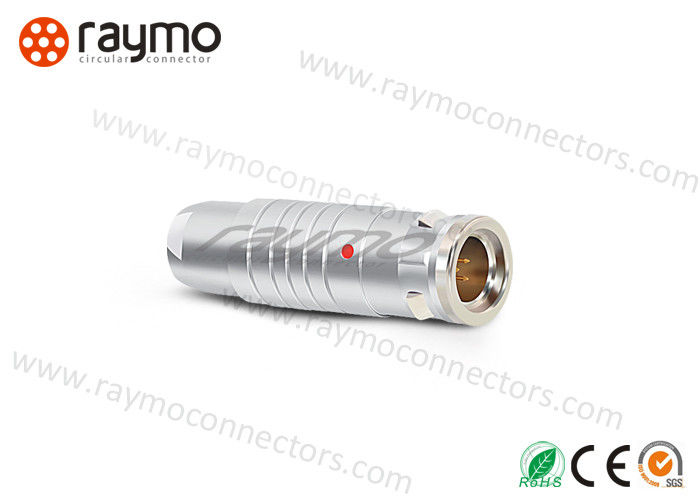

Straight plug,cable collet |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | Brass (gold plated) |
| Insulator | PPS |
| Contact Type | Solder |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 220 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | 68 |
|
Shell size |
Contacts no. ( Both with Solder & PCB type ) |
||||||||||||||
| RM-0K | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2K | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3K | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4K | 7 | 10 | 24 | ||||||||||||
RAYMO is a manufactuer that:
Advantages
1. Are your company a professional manufacturer?
Raymo: Yes, we SGS audited manufacturer
2. What is the MOQ?
Raymo: No MOQ limited, depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: 3-5 working days for samples, 5-7 working days for mass prction.
5.What is your payment terms?
Raymo: 100% T/T in advance when customer place an order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating, our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
