Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors

Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors
Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors
Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors
Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: RAYMO
Certification: CE/ROHS/SGS/ISO:9001-2015
Model Number: RM-EEG.2KC.319.KS
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Plastic Bag & Carton
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union, D/A, D/P,L/C,
Supply Ability: 5000Pieces/ Week
Contact Now
Prct Name: IP68 Waterproof Push Pull Connector Model: EGG Panle Mount Socket
Contact No.: 2-32 Pins Shell Size: 0K,1K,2K,3K
Shell Color: Natural Or Black Shell Gender: Male, Female
Insulator: PPS, PEEK Contact Type: Solder/PCB/90° PCB Contacts
Cable Assembled Or Not: Yes IP Ranking: IP68
Highlight:

waterproof wire connectors

,

waterproof cable connector

Prct Description

RM-K Series  0K 1K 2K 3K series PHG cable mount sokcet

Part No.:

EEG.2K.319.CLL/ RM-EEG-2KC-319KS

Prct Description:

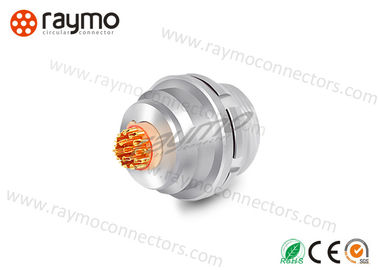

2K size connector, EEG panel mount socket, 19pin female contact, natural chrome plated shell in brass



K series Push pull locking metal connector, cable to cable connector, free socket, inline connector

Main Futures
1 Waterproof Secure high performance push-pull Self-locking system
2 100% compatible with original Lemo K series connector
3 can plated with white or black chrome
4 2-32pin available
5 Available solder and PCB or right angle PCB contact.
6 360° EMC shield
7 Certificate:ISO:9001-2015, CE,RoHS2.0, SGS, Reach





Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 55/175/21 Shielding (min) > 95dB [ at 10 MHz],     > 80 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) ≥5000 mating cycles





Low Voltage Circular Waterproof Connector, Waterproof Automotive Connectors

Shell size Contacts no. (Both with Solder & PCB type)
0K 2 3 4 5 6 7 9 　 　 　 　 　
1K 2 3 4 5 6 7 8 10 12 14 16 　
2K 2 3 4 5 6 7 8 10 12 14 16 19
3K 3 4 6 8 9 10 12 14 14 16 18 21
26 30 32 　 　 　 　 　 　 　 　 　
