| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE, REACH, ISO:9001-2015, SGS, ROHS |
| Model Number: | ERA.1S.303.CLL |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| Supply Ability: | 5000Pieces/ Week |
| Series: | S Series Stepped Insert Connector | Shell Size: | 0S (1S, 2S Are Available) |
|---|---|---|---|
| Contact No.: | 2.3.4.5.6 Pins | Insulator: | PPS, PEEK |
| Application: | Remote Camera Control | ||
| Highlight: | pcb contacts connector,cable elbow connector |
||

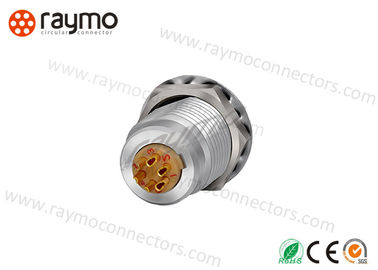

S series Half Moon Connector, Stepped insert connector broadcast ERA 1S 3pins ERA.1S.303.CLL
|
Temperature Range |
- 55° C, +200° C |
Resistance to vibrations |
10-2000 Hz, 15g |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C |
|
Shock Resistance |
100 g, 6 ms |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP 50 |
Endurance(shell) |
≥5000 mating cycles |
RAYMO is a manufactuer that:
The use of enviroment,indoor or ourdoors,waterproof or not
The panel hole size, to seclect the approproate plug and socket of right dimension
The current voltage and the realization of the function, to determin the cores seclect the appropriate clam diameter and sheath according to the actual needs of different angles of the keys, to determin the keying
100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save at least 50% cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
Except connectors,we do cable assemble for circular connectors too.
We can make all types of cables as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-sub, USB, RJ45, Dtap, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO!
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
