| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE ROHS2.0 REACH SGS ISO9001:2015 |
| Model Number: | FNG.2B.319.CLAD82Z |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | 150pcs/ctn |
| Delivery Time: | 2-3 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS PER WEEK |
| Prct Name: | Push Pull Connector | Model: | FNG.2B |
|---|---|---|---|
| Available Shell: | 00B,0B,1B,2B,3B,4B,5B | Contact No: | 2,3,4,5,6,.7,8,9,10,12,14,16,21,26,30,32 |
| Insulator Material: | PPS, PEEK | Housing Material: | Brass With Chrome Plated |
| Contact Material: | Brass With Gold Plated | ||
| Highlight: | electronic cable connectors,cable connector plug |
||

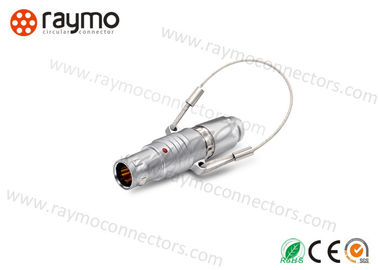

RAYMO Push Pull Lanyard Release electrical Connector Brass Connector FNG.2B.319.CLAD82Z
FNG.2B LEMO alternative connector, cable circular push pull connector
RM-FNG-2BC Can be 100% compatible with FNG.2B LEMO CONNECTOR but much cheaper with faster delivery.
Raymo electronics technology ltd is a professional push pull connector manufacturer intergrating connector researching, designing and development,prction and sales !. Raymo offer you various range of push pull circular connectors and cable assembly.You will find raymo connectors in widely range of military denfence, medical, Test and measurement,High Speed Camera,Submarine industry.
| Raymo Part No. | Original LEMO Part No. | Item Description |
| RM-FNG-2BC-319-JS82Z | FNG.2B.319.CLAD82Z | 2B series cable plug,Lanyard Release , multipin 19pin , male contact, 82 cable collet for diameter 7.2-8.2mm cable , nut for a bend relief, natural chrome plated, key G, |
| Series | Shell Size | Contacts No. with solder & PCB type |
|
RM-B IP50 |
00B | 2,3,4 |
| 0B | 2,3,4,5,6,7,9 | |
| 1B | 2,3,4,5,6,7,8,10,12,14,16 | |
| 2B | 2,3,4,5,6,7,8,10,12,14,16,18,19,26 | |
| 3B | 3,4,6,7,8,10,12,14,16,18,21,30,32 |
| Pulling and inserting times : ＞5000 times |
| Humidity : Maximum humidity up to 95% at a temperature of 60 ° |
| Temperature range: - 65° C, +200° C |
| Vibration: 15 g [10 Hz - 2000 Hz] |
| Shock Resistance : 100 g [ 6 ms] |
| Protention Level : IP50 |
| Salt Cpray Corrosion test: ＞96Hrs |
| Terminal Type: elbow PCB |
| Number of positions: 1-32pins |
| Fastensing Type: Push pull |
| Shell Material : Brass |
| Shell Finish : chrome plated |
| Contact Material: Brass |
| Insert Material : PPS , PEEK |
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Get a price, lead time, datasheet , now !
