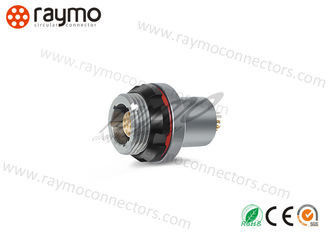

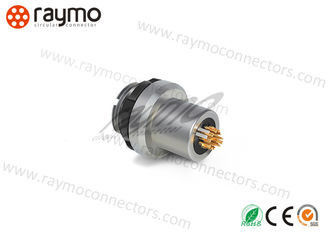

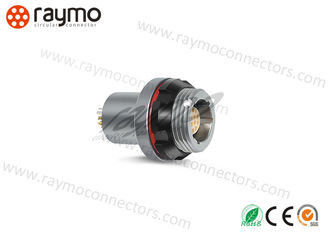

FG8 7 Pins Waterproof Electrical Connectors High Packing Density Waterproof

Amc Waterproof Metal Connector, RM-C Series,FG8 7pins Panel Socket Circular Connectors

• AMC Waterproof Push-pull Self-locking Metal Connector, RM-C Series,7pins
• Female solder panle receptacle
• 7 poles contacts
• PPS insulator(PEEK is avaialble if customer need)

• IP68 ranking
• 5 different alignment keys and Polarized Keying System to avoid cross-interface
• Miniature circular connector
• Miniest circular connectors
• High corrosion resistance
• Hermetic receptacle structure can be suitable for equipment requiring air

• Aviation
• Communications
• Industrial Control
• Information Systems
• Military
• Test and Measurement
• Data Acquisition
• Data Transfer Equipment
• Sensor Systems Instrumentation
• Analysis Application

• Temperature Range - 65° C, +200° C
• Resistance to vibrations 15 g [10 Hz - 2000 Hz]
• Humidity up to 95% at 60° C/140F
• Shock Resistance 100 g [ 6 ms]
• Salt spray corrosion test >144hr
• Climatical Category 50/175/21
• Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
• IP Rating IP68
• Endurance(shell) ≥5000 mating cycles

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen that is a leading companyin the design, manufacturing and distribution of high-performance connectors and cable assembly solutions.Known for their quality, ruggedness and excellent sealing, our prcts prove to be reliable in the most demanding environments.

• 100% compatible with lemo, , fischer connector
• Help you save at least 50% cost
• All the prcts we got CE, ROHS, SGS,ISO9000 certificate
• Fast delivery: 2-15 working days
• Cable assembly offer, help you save prction time

1.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
2. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
3. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push pull connectors and cable assembly since 2010.
4. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
5. Free sample :
RAYMO: Available. Any needs, please contact us:
6. What about the delivery time?
Raymo: sample for 1-2 working days, mass prction for 5-10 working days.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
