| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ISO:9001-2015, REACH, SGS, CE, ROhS |
| Model Number: | WSO 102 A053 140 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Circular Warterproof Connector | Shell Size: | 102 / 0F |
|---|---|---|---|
| Contact No.: | 4 Pin | Insulator: | PPS, PEEK |
| Shell Color: | Silver Chrome Black Chrome | IP Ranking: | IP68 |
| Highlight: | PEEK Right Angle Connector,PPS Right Angle Connector,IP68 4 Pin Circular Connector |
||
Raymo WSO connectors are compatible with Fischer WSO 102 A053 4pins, black shell. Works with 2 to 19 pin. Better quality with competitive price. BTW, Raymo Provide Cable Assembly solution.

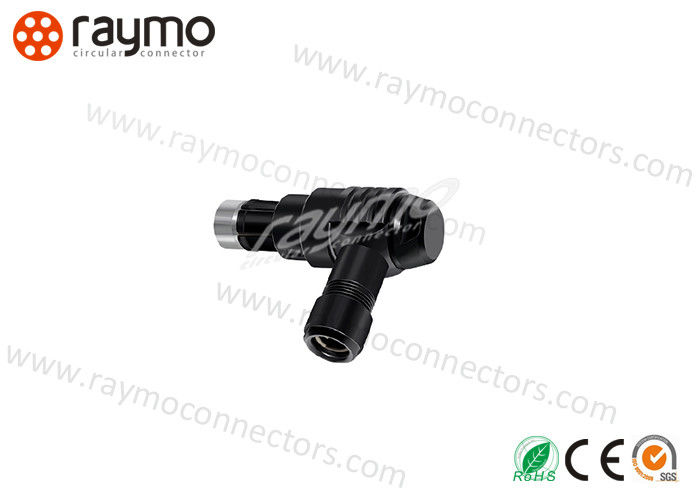

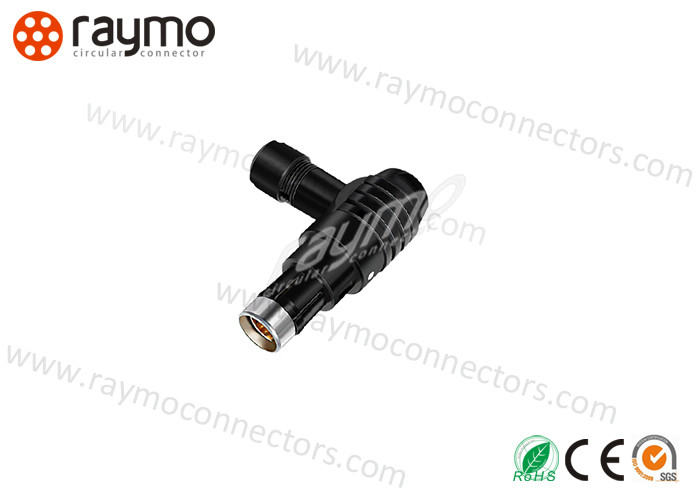

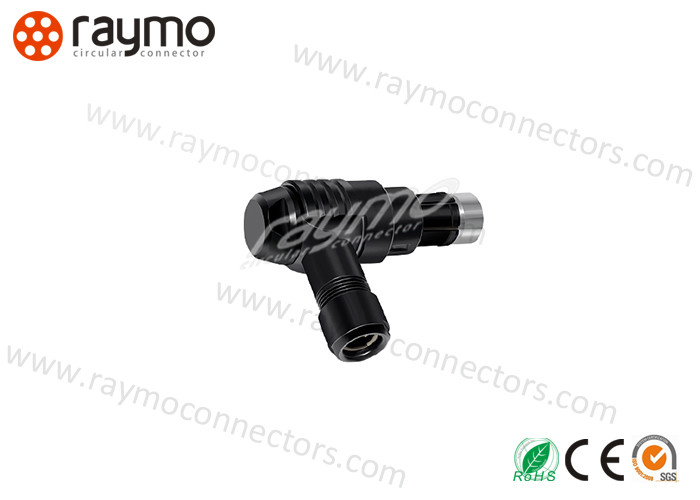

WSO 102 A053 140= WSO 102/0F size, black shell, 4 pin male audio cable connectors
1.Features:
All different shell size is available from 102 ,103,1031 until 104.
Mutipoles contacts from 2 pin 3 pin 4 pin 5 pin 6 pin 7 pin 8 pin 10 pin 12 pin 14 pin 16 pin 19 pin
2.Technical Characteristics
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP 68 |
Endurance(shell) |
≥5000 mating cycles |
3.Our Company
RAYMO ELECTRONICS TECHNOLOGY LTD , established in 2010, located in shenzhen,China
Expert in making high quality push pull connector & cable assemble.
Promotion items with more than 10 years’ experience!
Our goal is to provide customers with the best service possible and to prce excellent quality.
Brand identification prcts will meet or exceed your expectations.
All items coming with certification and we have excellent team offering best connector solution for your application.
4.Application
RAYMO's high quality connectors are found in a variety of challenging applications and environments Applications
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
5.Our Exhibition
|
2020.9.14-16 |
Testing Expo, Shanghai |
|
2019 9.24-9.26 |
Testing Expo, Shanghai |
|
2018 11.12-11.15 |
Electronica Munich, Germany |
|
2017 9.11-9.16 |
NAB Show,Netherlands |
|
2016 4.11-4.15 |
HK Fair |
|
2015 10.2-10.7 |
ICEEB, Brasil |
|
2014 10.11-10.15 |
HK Fair |
|
2014 4.11-4.15 |
HK Fair |
6.Why Choose US?
100% compatible with lemo, , fischer connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save at least 50% cost
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
CE, ROHS2.0, SGS, ISO, Reach
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
