| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | RM-FGG.0B.309.CLAD |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-7 working days |
| Payment Terms: | Western Union, T/T, D/P, D/A, L/C, MoneyGram |
| Supply Ability: | 5000pcs/week |
| Prct Name: | Push Pull Connector | Usage: | Signal Transfer |
|---|---|---|---|
| Shell Size: | 0B | Contact No.: | 9 Pins |
| Terminal: | Solder | IP Ranking: | IP50 |
| Highlight: | FGG Circular Push Pull Connectors,0B Circular Push Pull Connectors,360° EMC Circular Metal Connectors |
||

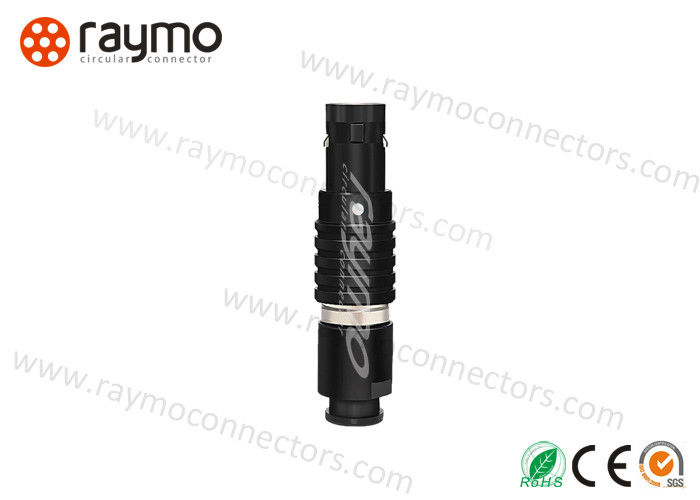

FGG.0B.309.CLAD 9 pin plug male signal solder Circular Push Pull Connectors

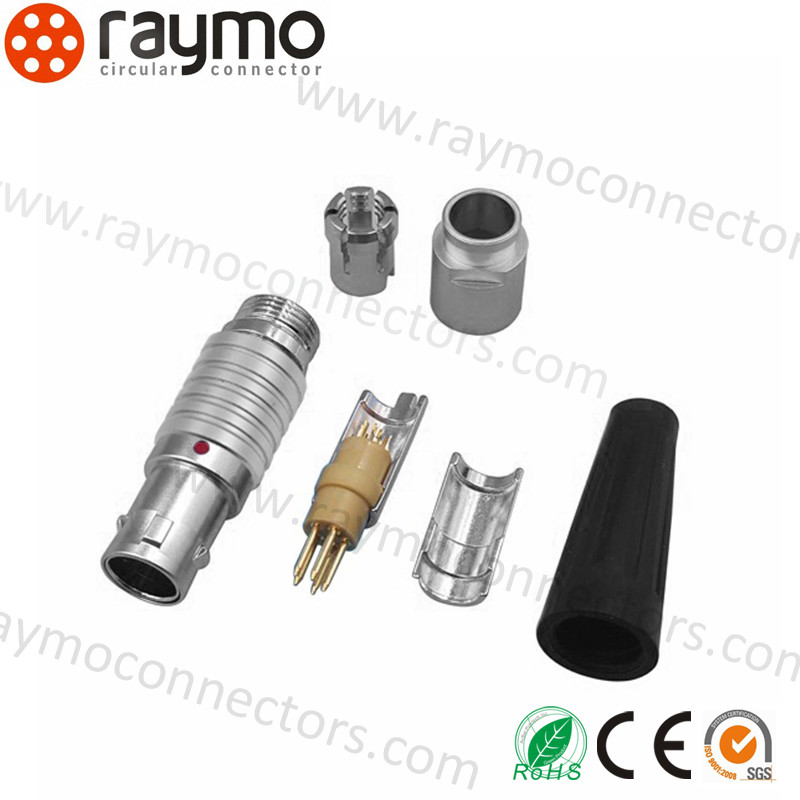

FGG.0B.309.CLAD52Z = RM-FGG-0BC-309-JS52Z .Straight plug with key(G) and cable collet, 0B series, multipole 9 contacts, outer shell in natural chrome-plated brass, PPS insulator, male solder contacts, collet for 4.2-5.2mm diameter cable, nut for fitting a bend relief, IP50.
Secure high performance push-pull self-locking system
1.High pin density contributing to equipment miniaturization
2.Alignment Key and Polarized Keying System to avoid cross-interface
3.360° EMC shielding
4.Robust and shock resistant designs
5.Functional in a wide temperature range from -50°C to +250°C
6.Available solder, PCB and right angle PCB contact
| Shell size | Contacts no. With Solder & PCB type | |||||||||||||
| 00 | 2 | 3 | 4 | |||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | |||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | |||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | 26 | |
| 3B | 3 | 4 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 30 | |||
|
Technical Characteristics
|
|||
|
Temperature Range
|
-55°C, +250°C
|
Resistance to vibrations
|
15 g [10 Hz - 2000 Hz]
|
|
Shock Resistance
|
100 g [ 6 ms]
|
Salt spray corrosion test
|
>96hrs
|
|
Climatical Category
|
50/175/21
|
Humidity
|
Up to 95% at 60°C
|
|
IP Rating
|
IP50
|
Certifications
|
ISO9001/ CE/ ROHS2.0/ SGS
|
