Home ProductsCircular Push Pull ConnectorsMale Solder 6 Pin FGG 1B Circular Push Pull Connectors IP50

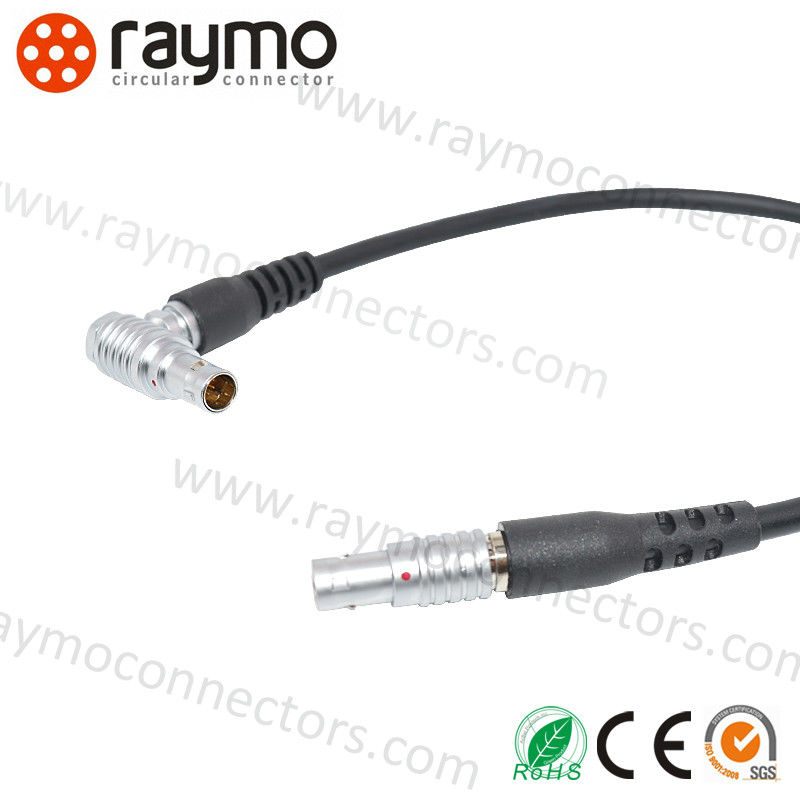

Male Solder 6 Pin FGG 1B Circular Push Pull Connectors IP50

Male Solder 6 Pin FGG 1B Circular Push Pull Connectors IP50
Male Solder 6 Pin FGG 1B Circular Push Pull Connectors IP50 Male Solder 6 Pin FGG 1B Circular Push Pull Connectors IP50
Basic Information
Place of Origin: Shenzhen, China
Brand Name: RAYMO
Certification: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Model Number: FGG 0B 1B 2B
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 100pc/CTN
Delivery Time: 5-7 working days
Payment Terms: Western Union, T/T, D/P, D/A, L/C, MoneyGram
Supply Ability: 5000pcs/week
Contact Now
Prct Name: Push Pull Connector Type: FGG Plug
Shell Size: 0B 1B 2B Contact No.: 6 Pins
Terminal: Solder IP Ranking: IP50
Highlight:

1B Circular Push Pull Connectors

,

FGG Circular Push Pull Connectors

,

IP50 6 Pin Circular Connector

 data signal transfer male solder push pull self locking cable plug, 6 pin circular connector

100% compatible with LEMO original FGG 0B 1B 2B 3B series



Prct description

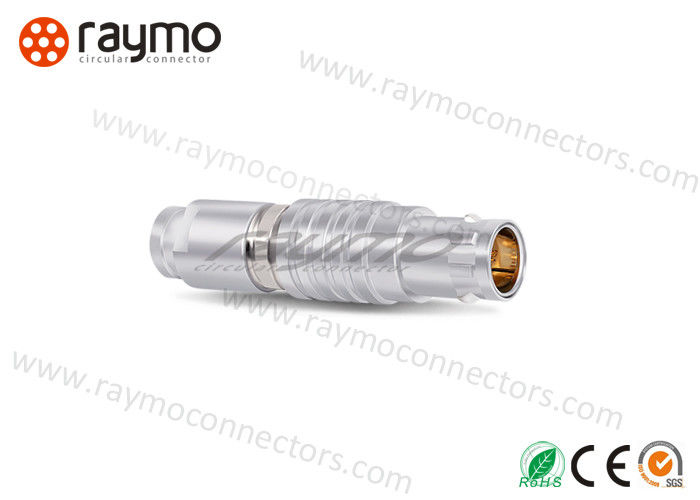

FGG.0B.306.CLAD42 = RM-FGG-0BC-306-JS42 .Straight plug with key(G) and cable collet, 0B series, multipole 6 contacts, outer shell in natural chrome-plated brass, PPS insulator, male solder contacts, collet for 3.2-4.2mm diameter cable, round nut without bend relief, IP50.

RM-B series metal circular push pull connector with below features:

  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



Raymo company intrce



As a creative customer-oriented manufacturer located in Shenzhen, Raymo focusing on manufacturing connectors and cable assemblies to serve over 75 countries and regions since 2010.

We can offer to customer

  • Metal push pull connectors,
  • Electrical connector
  • Medical plastic connectors,
  • Camera connectors,
  • Waterproof/watertight connectors,
  • Quick release connectors
  • Cable assemblies.
  • OEM is accepted.
Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

Male Solder 6 Pin FGG 1B Circular Push Pull Connectors IP50 0



FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
