| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | FGG PHG 1B 308 |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-7 working days |
| Payment Terms: | Western Union, T/T, D/P, D/A, L/C, MoneyGram |
| Supply Ability: | 5000pcs/week |
| Prct Name: | Push Pull Connector | Type: | Plug |
|---|---|---|---|
| Shell Size: | 1B Series | Contact No.: | 8 Pins |
| Terminal: | Solder | IP Ranking: | IP50 |
| Highlight: | OD12mm Circular Push Pull Connectors,IP50 Circular Push Pull Connectors,1B 8 Pin Circular Connector |
||

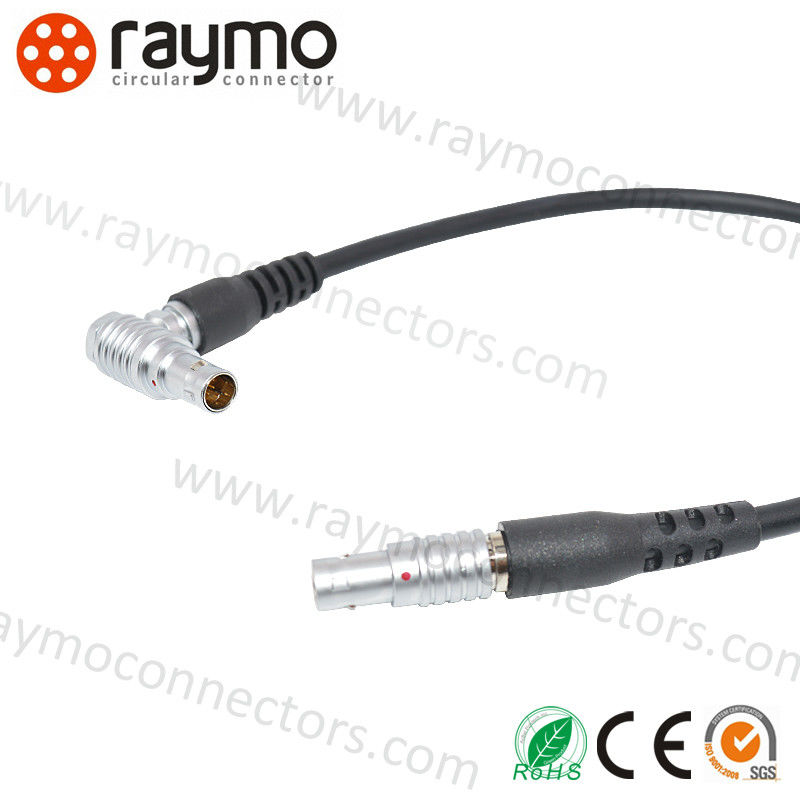

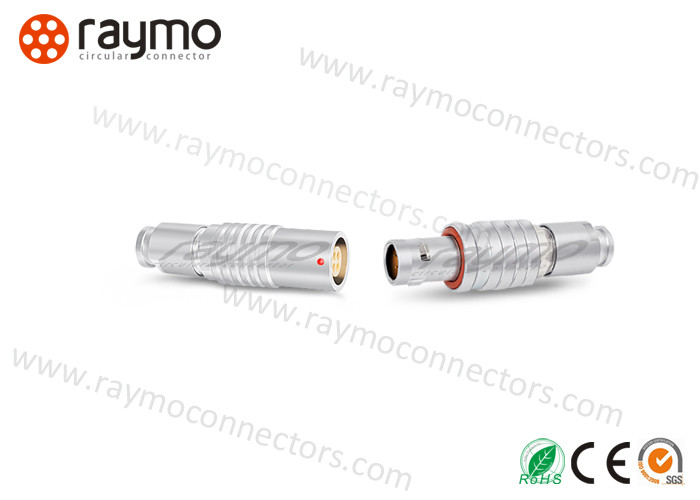

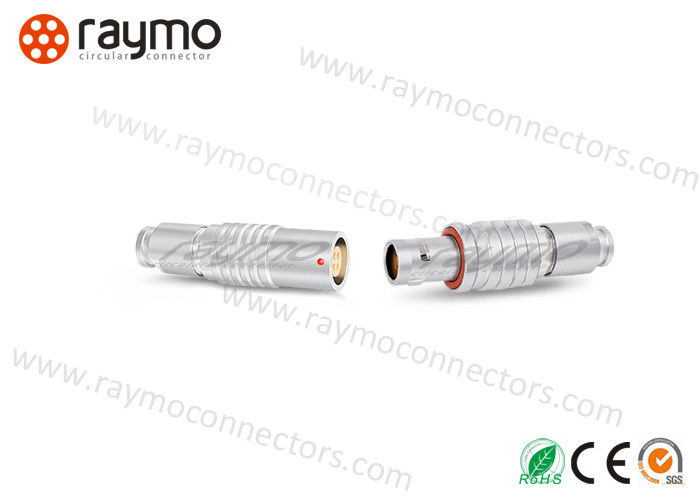

OD12mm male female cable to cable electrical audio vedio plug socket, 8 pin circular connector
100% compatible with LEMO original FGG PHG 1B 308
PHG.1B.308.CLLD52Z = RM-PHG-1BC-308-KS52Z .Free socket with key(G) and cable collet, 1B series, multipole 8 contacts, outer shell in natural chrome-plated brass, PPS insulator, female solder contacts, collet for 4.2-5.2mm diameter cable, nut with fitting a bend relief, IP50.
We are specilized in many kinds of alternative connector such as:
1/ LEMO B, K,S, P series
2/ Fishcer core series 102, 103, 1031, 104, 105
3/ Hirose HR10A series
4/ Binder M16 680, 678, 598, 423 series
5/ OEM series
6/ Cable assemblies
Series B metal circular connectors in many size and outer diameter for different applications are designed to be compatible with connector Series B which with a self-latching system for easy operations.
| Shell size | Contacts no. With Solder & PCB type | |||||||||||||
| 00 | 2 | 3 | 4 | |||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | |||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | |||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | 26 | |
| 3B | 3 | 4 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 30 | |||
