PPS IP50 Male Telecommunication Cable Plug 12mm Shell

PPS IP50 Male Telecommunication Cable Plug 12mm Shell
PPS IP50 Male Telecommunication Cable Plug 12mm Shell PPS IP50 Male Telecommunication Cable Plug 12mm Shell
Basic Information
Place of Origin: Shenzhen, China
Brand Name: RAYMO
Certification: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Model Number: RM-FGG-0BC-307-JS**Z
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 100pc/CTN
Delivery Time: 5-7 working days
Payment Terms: Western Union, T/T, D/P, D/A, L/C, MoneyGram
Supply Ability: 5000pcs/week
Contact Now
Prct Name: Push Pull Electrical Connector Type: Male Female Plug
Shell Size: 12mm Contact No.: 7 Pins
Terminal: Solder IP Ranking: IP50
Highlight:

IP50 Male Telecommunication Cable Plug

,

PPS Male Telecommunication Cable Plug

,

12mm Shell Push Pin Connectors

high quality metal push pull male telecommunication cable plug, electrical push pin connectors

100% compatible with LEMO/Fischer/Hirose original

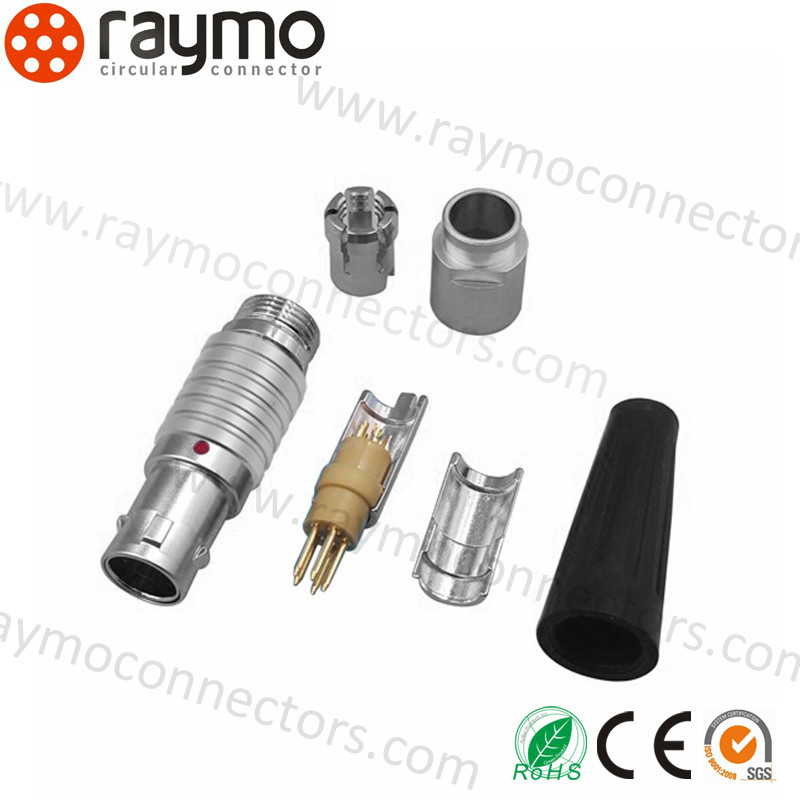

FGG.0B.307.CLAD42 = RM-FGG-0BC-307-JS42 .Straight cable plug with key(G), 0 degree, 0B series, multipole 7 contacts, outer shell in natural chrome-plated brass, PPS insulator, male solder contacts, collet for 3.2- 4.2mm diameter cable, nut for without bend relief, IP50.



RAYMO is a manufacturer that:

• Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly.
• Can be 100% compatible with original

• OEM are acceptable
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
• All the items can work normally after 5000 times mating

RM-B series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



PPS IP50 Male Telecommunication Cable Plug 12mm Shell 0
Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.

PPS IP50 Male Telecommunication Cable Plug 12mm Shell 1



FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
Q3. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
Q4. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
