| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ISO:9001-2015, REACH, SGS, CE, ROhS |
| Model Number: | ECG.1B.316.CLL |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Circular Push Pull Connector | Shell Size: | 00B,1B,2B,3B,4B |
|---|---|---|---|
| Contact No.: | 16 Pins | Insulator: | PPS, PEEK Are Available |
| Shell Color: | Silver Chrome | IP Ranking: | IP50 |
| Highlight: | 1b Circular Power Connector,Peek Insulator Circular Power Connector,Lemos Ecg Circular Plug Connector |
||
Prct Description
peek insulator female receptacle, lemos ecg 00b 0b 1b 2 pin to 16 pins circular push pull connectors of tv and motion
|
Part No.: |
ECG.1B.316.CLL= RM-ECG.1BC.316.KS |
|
Prct Description: |

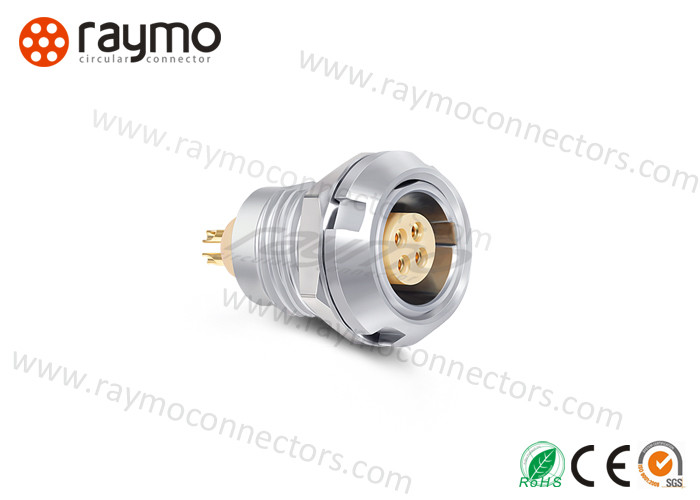

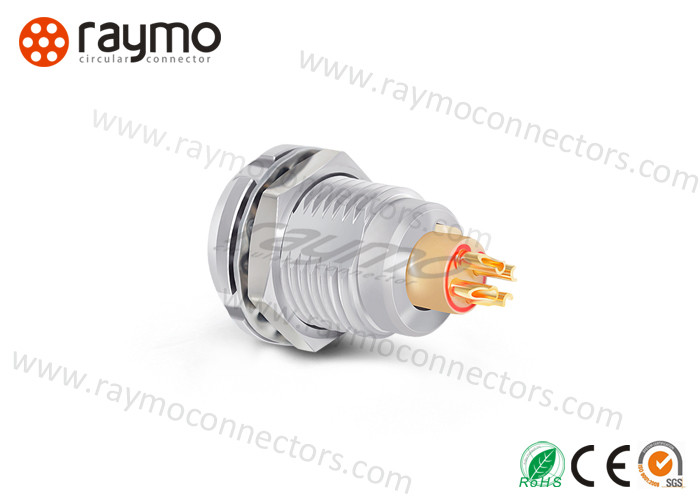

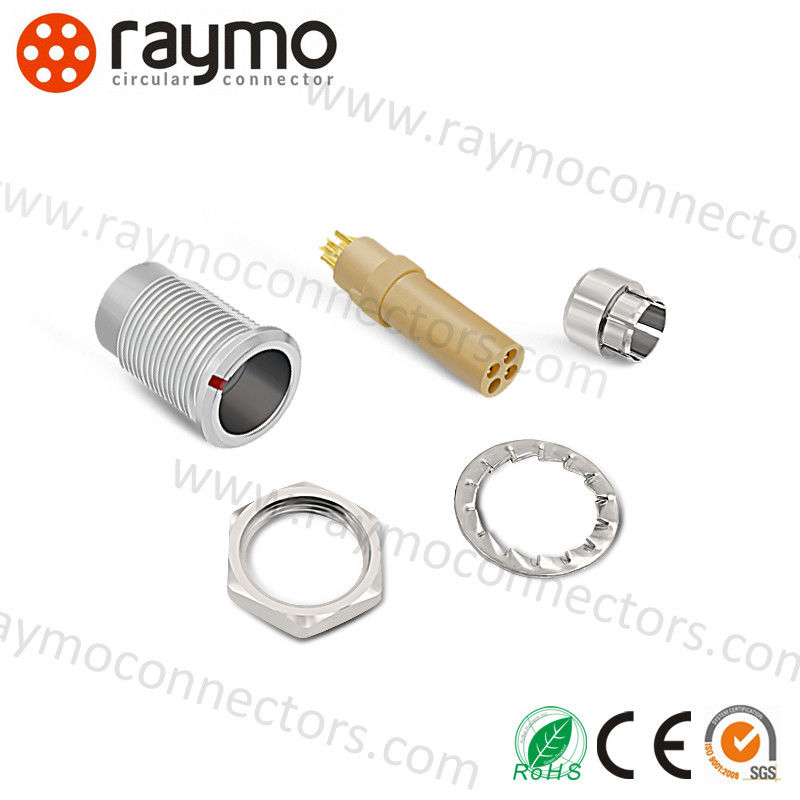

Circular push pull connector, panel socke, 16 pins, 1B size |
Features:
All different shell size is available from 00B 0B 1B 2B 3B 4B
Mutipoles contacts from 2 pin 3 pin 4 pin 5 pin 6 pin 7 pin 8 pin 10 pin 12 pin 14 pin 16 pin
Technical Characteristics
|
Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP 68 |
Endurance(shell) |
≥5000 mating cycles |
Our Company
RAYMO ELECTRONICS TECHNOLOGY LTD, established in 2010, located in shenzhen,China
Raymo connector is a professional supplier of high-end connector solutions, company have advanced
prction equipment, testing equipment, high-end CNC lathe and a professional team, dedicated to provide
innovative solutions & high quality prcts for industrial, telecommunication, military, medical and automotivemarkets.
By the end of 2019, the company has successfully passed the ISO9001 (2015) quality system certification,
ROHS certification, CE certification, Reach certification and other authoritative certification.
RAYMO's high quality connectors are found in a variety of challenging applications and environments Applications
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
