| Place of Origin: | China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ISO9001/ CE/ ROHS2.0/ SGS |
| Model Number: | RM-FGG RM-EGG |
| Minimum Order Quantity: | 1pcs |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per week |
| Prct Name: | Push Pull Circular Connector | Application: | Testing Instrument, Testing Equipment, Measure Machine |
|---|---|---|---|
| Shell Size: | 6.4-24mm | Contacts: | 2-30P |
| Contact Material: | Copper | Termination: | Solder, PCB, Right Angle PCB |
| Protection Index: | IP50 | Connection Times: | 5000 |
| Highlight: | IP50 Circular Push Pull Connectors,30P Circular Push Pull Connectors,360° EMC Circular Plug Connector |
||

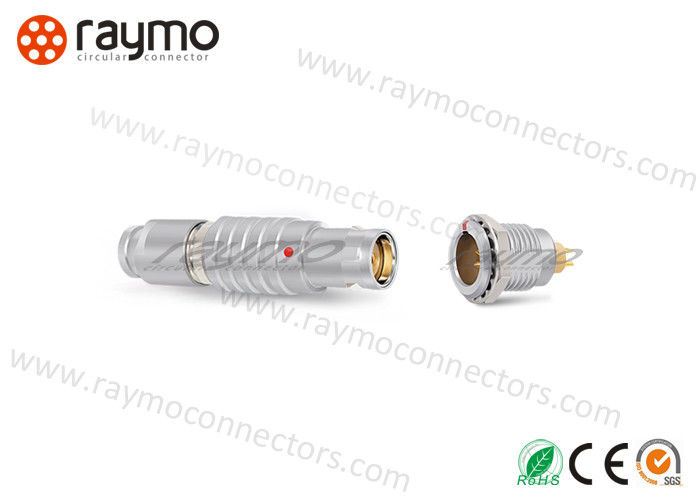

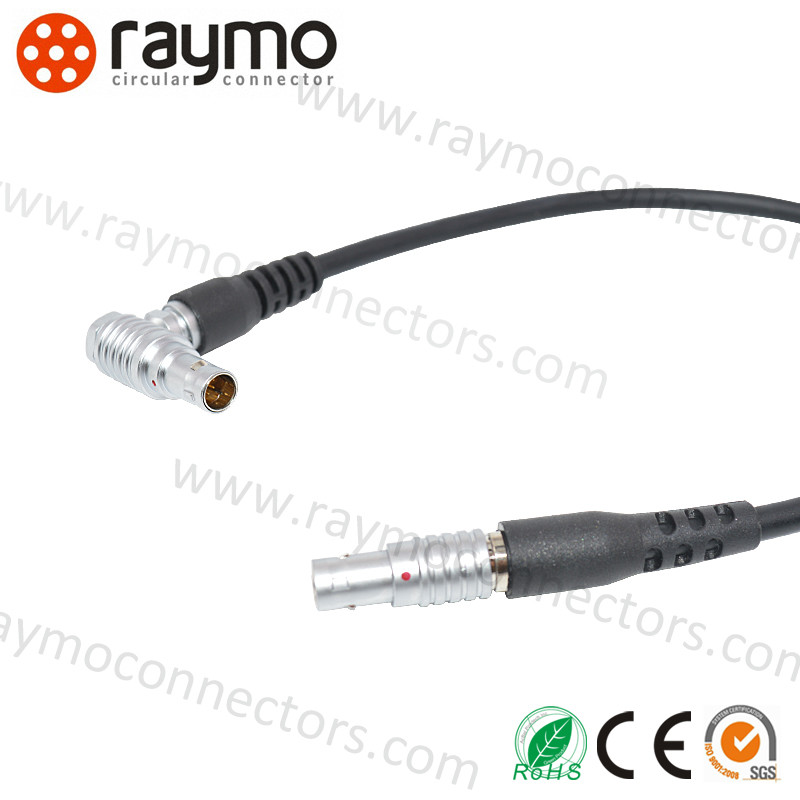

test equipment instrument cable to panel Circular Push Pull Connectors
Prct Description:
RAYMO RM-B Series offers a mlar, ergonomic, rugged and reliable circular multipole connector for applications needing quick and secure Push-Pull latching. Making it an ideal choice for test and measurement, instrumentation, medical devices, research and audio/video applications.
RAYMO RM-B series are 100% compatible with original.
EXAMPLE: FHG.0B.304.CLAD42Z = RM-FHG-0BC-304-JS42Z .

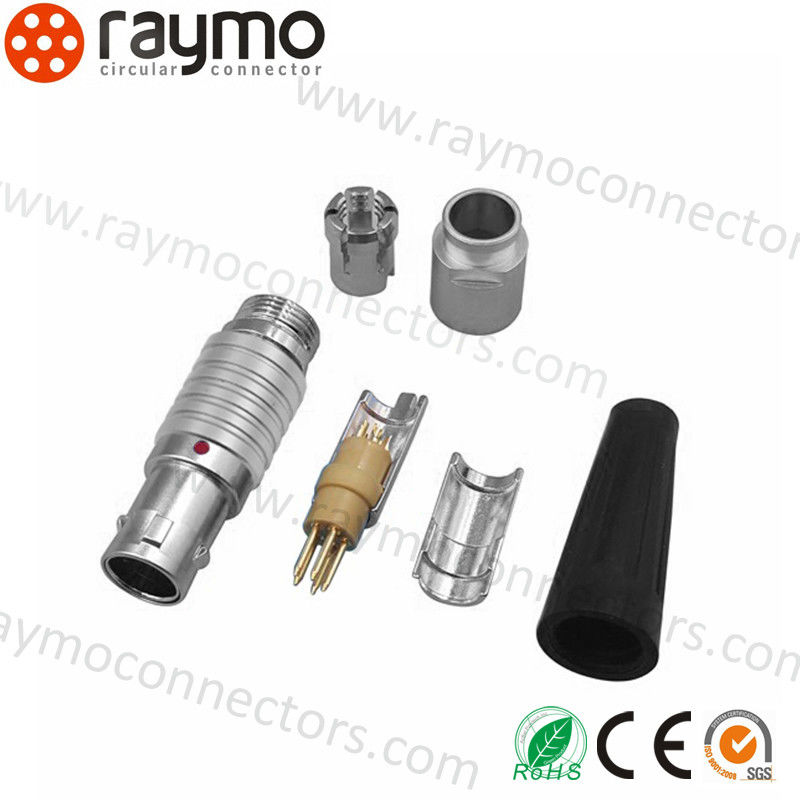

Elbow cable plug with key(G), 0B series, multipin 4 contacts, outer shell in natural chrome-plated brass, PPS insulator, male solder contacts, collet for 3.2-4.2mm diameter cable, nut for fitting a bend relief, IP50.
| Shell size | Contacts no. With Solder & PCB type | ||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | 26 |
| 3B | 3 | 4 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 21 | 30 | ||
Features of RM-B series metal circular push pull connector:
-Secure high performance push-pull self-locking system
-High pin density contributing to equipment miniaturization
-Shell size from 00B to 3B
-Contacts from 2-30pins
-Alignment Key and Polarized Keying System to avoid cross-interface
-360° EMC shielding
-Robust and shock resistant designs
-Functional in a wide temperature range from -50°C to +250°C
Applications of Circular Push Pull Connectors
•Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
•Medical equipments like Disposable equipment
•Test & measurement like Data acquisition
•Broadcast, like HD and SD cameras
Our company
Raymo company specialized in many kinds of alternative connector. All our connectors can work with original well, since 2010, we keep improving our technic and offer customer with high quality prcts, for the return, we have got many good feedbacks and build a long-term and stable cooperation ship.
FAQ
-What is your terms of payment?
A: T/T 100% or Alibaba on-line order are both OK.
-Does your company a professional manufacturer?
A: Yes, we specialized in prcing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 7 years.
-What about the delivery time?
A: sample for 3-5 working days, mass prction for 5-7 working days.
-Can I use my own logo on the prcts?
A:Yes, customers' logo, size and design are acceptable, OEM&ODM are welcomed.
