| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Raymo |
| Certification: | CE/ROHS/REACH/SGS/ISO9001 |
| Model Number: | RM-FS2.0L0S.P09JS50Z |
| Minimum Order Quantity: | 1pcs |
| Price: | 4.5-6.8 |
| Packaging Details: | PE BAG+ CARTON |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/5-7 working days |
| Type: | Circular Push Pull Connector | Shell Size: | 0L 1L |
|---|---|---|---|
| Contacts: | 9 Pin | Colour: | Black Chrome Plated |
| Gender: | Male Solder Contacts | Application: | Arrialexa Mini Camera |
| Insert Material/insulator: | PPS/PEEK | IP Ranking: | IP68 |
| Highlight: | PPS Circular Push Pull Connector,FS2 Circular Push Pull Connector,Arri Camera Circular Power Connector |
||

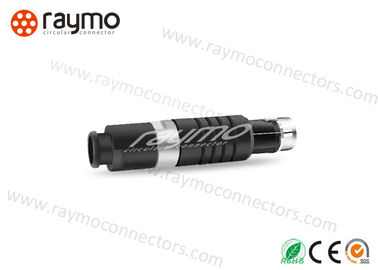

FS2 FG8 0B 1B Audio Video Arri Camera Waterproof Circular Push Pull Connector
MINI-SNAP SERIES L
The MINI-SNAP Series L is keyed by pin and groove. These Push-Pull circular connectors can be configured
in many different ways: a different variety of sizes and contact inserts are available.
Description:
RM-FS2.0L0S.P09JS50Z
Push pull circular cable connectors, 9 pins male solder contacts, male solder contacts, shell in black color,
50 cable collet for arri alexa mini camera
RM-L series circular push pull connectors main features:
1. Security of the Push-Pull self-latching system
2. Up to 4 sizes and 3 termination types
3.Choice of numerous plugs and receptacles
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 26 contacts
6. High packing density for space savings
7. IP6 ranking waterproof function
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
RM-L series Shell size and Contacts of circular push pull connector
|
RM-0L |
2pins 3pins 4pins 5pins 6pins 7pins 9pins |
|
RM-1L |
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16 |
Industry Application:
It is widely used on all kinds of medical equipments, specially for Studios and outside broadcasting, TV
and motion picture, HD and SD cameras , Remote camera control and military application
