| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Raymo |
| Certification: | CE/ROHS/REACH/SGS/ISO9001 |
| Model Number: | RM-FG8.0L0C.P09KS |
| Minimum Order Quantity: | 1pcs |
| Price: | 4.5-6.8 |
| Packaging Details: | PE BAG+ CARTON |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs/5-7 working days |
| Connector Type: | Receptacle, Female Sockets | Fastening Type: | Push Pull |
|---|---|---|---|
| Shell Size: | 0L 1L | Contacts: | 9 Pin |
| Gender: | Male Solder Contacts | Mounting Type: | Mounting Type |
| Ingress Protection: | IP68 - Dust Tight, Waterproof | Operating Temperature: | -20°C ~ 250°C |
| Highlight: | FG8 Circular Push Pull Connector,IP68 Circular Push Pull Connector,1L Shell 9 Pin Connector |
||

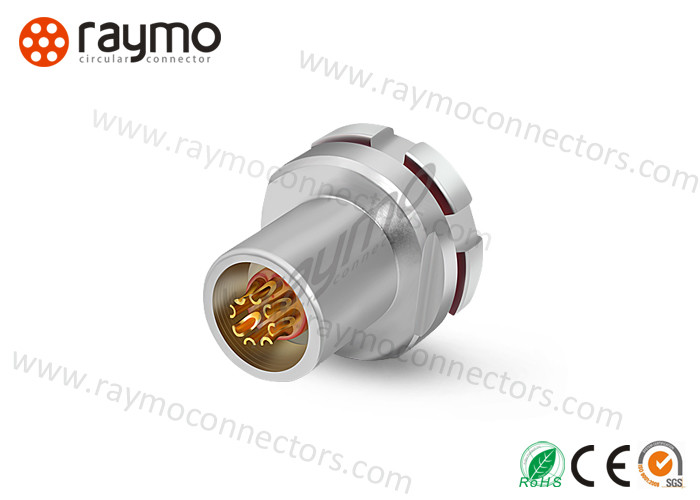

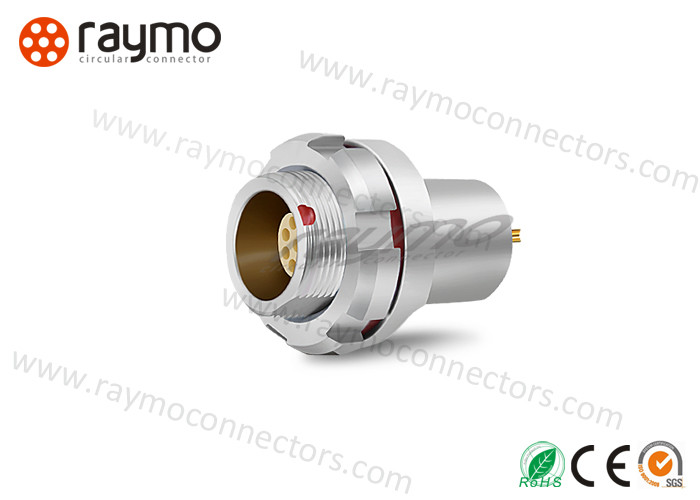

Panel Female Solder Socket FG8 9 Pin Circular Push Pull Connector For Remote Camera Control
MINI-SNAP SERIES L
These Push-Pull circular connectors can be configured in many different ways: a different variety of sizes
and contact inserts are available, different color and shell size are available for choosing. 100% compatible
with original s.
Description:
RM-FG8.0L0C.P09KS
Push pull circular panel connectors, 9 pins female solder contacts, shell in black color(Solder and PCB contacts
are available)
RM-L series circular push pull connectors main features:
1. Security of the Push-Pull self-latching system
2. Up to 3 sizes and 3 termination types
3.Choice of numerous plugs and receptacles
4. 360° screening for full EMC shielding
5. Multi-pole types 2 to 26 contacts
6. High packing density for space savings
7. IP6 ranking waterproof function
Technical characteristics:
1. Endurance:> 5000 mating cycles
2. Humidity :Up to 95% at 60 ℃
3. Temperature range:-40 ℃, +250 ℃
4. Resistance to vibration :15 g[10 HZ-2000HZ]
5. Shock resistance:100 g ,6 MS
6. Salt spray corrosion test :> 96h
RM-L series Shell size and Contacts of circular push pull connector
|
RM-0L |
2pins 3pins 4pins 5pins 6pins 7pins 9pins |
|
RM-1L |
2pins 3pins 4pins 5pins 6pins 7pins 8pins pins 10pins 12pins 14pins 16 |
Industry Application:
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines,
Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,
Sensor Systems Instrumentation, Analysis Application.
