| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | SGS, REACH, RoHS2.0, ISO:9001-2015, CE |
| Model Number: | FVG.1W.310.CLAD62Z |
| Minimum Order Quantity: | 5 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7wds |
| Payment Terms: | Western Union, L/C, D/A, D/P, T/T |
| Supply Ability: | 5000Pieces/ Week |
| Description: | Sealed Waterproof Connector | Shell Size: | 0W |
|---|---|---|---|
| Contacts: | 9 Poles | Insulator: | PPS/PEEK |
| Color: | Natural Chrome Plated Brass | Contacts: | Gold Plated |
| IP Ranking: | IP68 | Endurance: | 5000 Times Push Pull |
| Highlight: | Circular Waterproof Connector EMC Shielding,0W Shell Circular Waterproof Connector,PEEK Insulator Cable Socket Connector |
||
0w 1w 9 Pin Natural Color Cable Socket Waterproof Connector Of TV And Motion Picture
W Series connectors is deepsea circular connectors. The basic elements, insulators, contacts and clamping
system are from the B series. It's a screw coupling system with watertightness. After cable assembly, the rear
part must be covered by an adhesive heatshrink boot in order to ensure watertightness on the cable side.

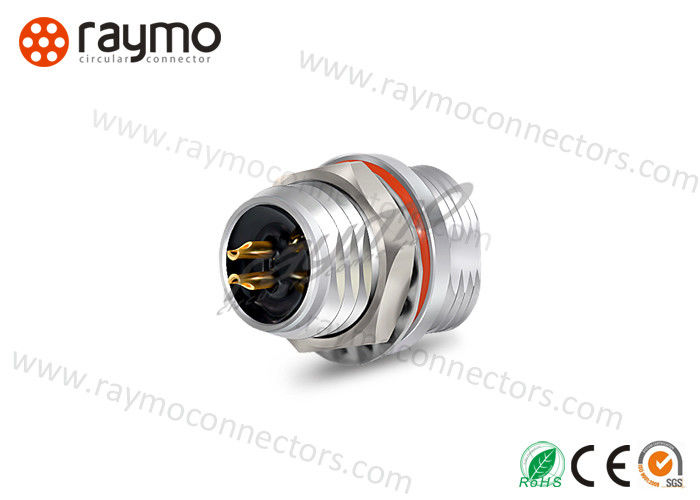

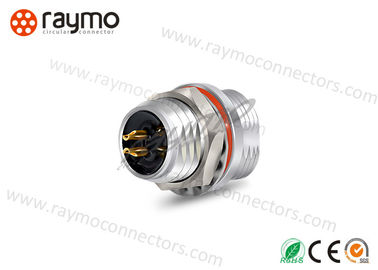

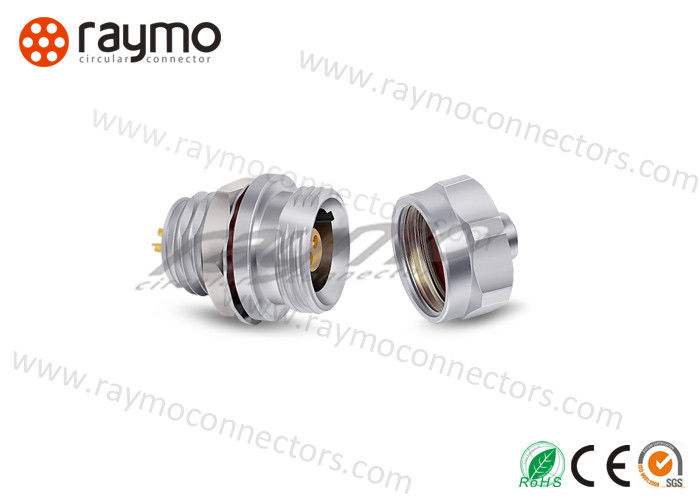

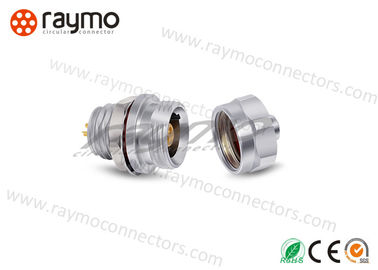

RM-EVG-0WC-309-KS= EVG.0W.309.CLL
Panel socket, 0W 9 pins female solder contacts, shell in natural color waterproof connector
|
1
|
a variety of size optional(0W, 1W) |
| 2 |
solder or crimp core; straight or 90 degree
|
|
3
|
rugged housing for extreme working conditions
|
| 4 |
360 degree complete EMC shielding, shock resistance, vibration resistance and
corrosion resistance |
|
Temperature Range |
- 40° C, +125° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP68 |
Endurance(shell) |
5000 mating cycles |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen,
focusing on manufacturing Creative customer-oriented metal and plastic circular push pull self latching
connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got
very popular recommendation among our customers.
Q1. Can I have a sample ?
Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be
paid in advance and the cost will be refund after further order.
Q2. What about the prction lead time?
We have stock, fast delivery below 5,000 pieces.
Q3. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.
Q4. Is it OEM available?
Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take
about 20 to 30 days for new prct from mold design to final prction.
