| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | SGS, REACH, RoHS2.0, ISO:9001-2015, CE |
| Model Number: | FHG.00.302.JS32Z |
| Minimum Order Quantity: | 5 Piece/Pieces |
| Price: | 12USD~20USD/PCS |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7wds |
| Payment Terms: | Western Union, L/C, D/A, D/P, T/T |
| Supply Ability: | 5000Pieces/ Week |
| Description: | Circular Push Pull Connector | Cable Length: | 0.25 Meter |
|---|---|---|---|
| Shell Color: | Natural Chrome Plated Brass | IP Ranking: | IP50 |
| Application: | RT Latitude MDR/MK 3.1 Receiver To MDR Lens Motor | Life Cycles: | 5000 Times Push Pull |
| Certificate: | CE/ROHS/REACH/ISO9001/SGS | Lead Time: | 3-5 Working Days |
| Highlight: | 0.25m Right Angled Cable Connectors,IP50 Right Angled Cable Connectors,RT Latitude MDR Receiver Connectors |
||

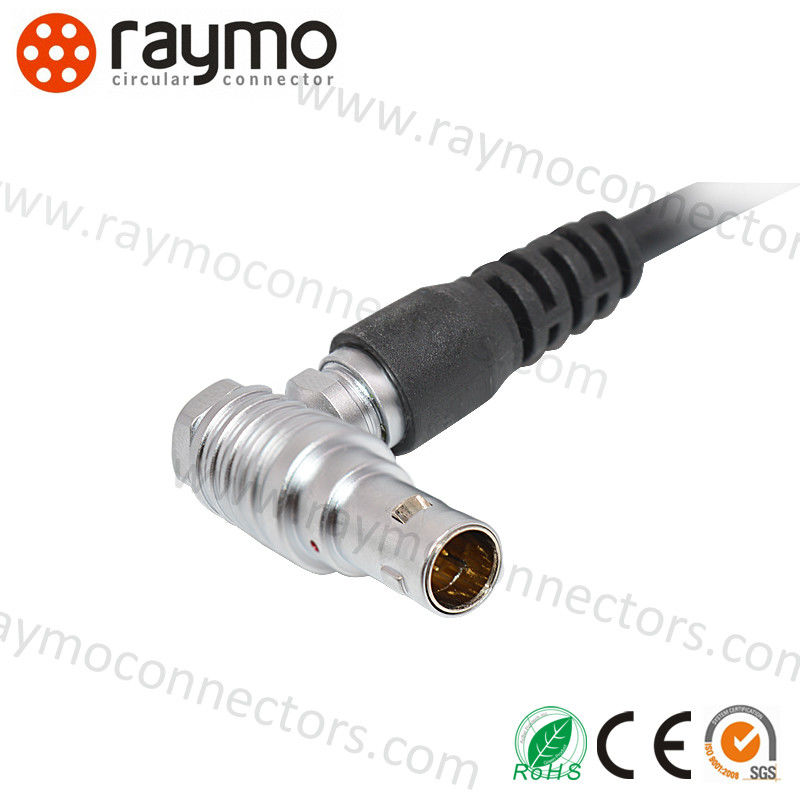

Teradek 2-Right Angled Motor Cable Circular Push Pull Connectors For RT
Latitude Mdr/Mk Receiver To Mdr Lens Motor
FHG.302 right angle cable connectors with 2pcs, cable length can be prced
according customer real needs. Except right angle cable connectors, we can do it
with straight circular push pull connectors too.
1. Push pull locking metal connector, cable to cable connector, free socket, inline connector
2. can be 100% compatible with original connector
3. can plated with white or black chrome
4. 360 angle screening for full EMC shielding
5. ISO:9001-2015 CE RoHS2.0 SGS REACH
6. All diferent shell size from 00 to 4B are available
7. 2 pins to 64 pins are available
Push-pull Self-locking Metal Connector
| Mechanical Shock |
100g-6ms
|
| Connector Type |
Cable connector, male contacts
|
| Number of Positions |
2 pins
|
| Termination |
Solder
|
| Fastening type |
Push Pull
|
| Key code |
G(A…M&R)
|
| Shell Color |
Natural
|
| Contact Material |
Brass
|
| Contact Finish-mating |
Gold
|
| Contact Color |
Gold
|
| Insert material/insulator |
PPS/PEEK
|
|
Temperature Range |
- 40° C, +125° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
|
Shell Material |
Brass with chrome plated |
Humidity |
up to 95% at 60° C/140F |
|
Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>96hr |
|
Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
|
IP Rating |
IP50 |
Endurance(shell) |
5000 mating cycles |
Raymo is a manufacturer located in Shenzhen, focusing on manufacturing mental and plastic circulor
push-pull connectors and cable assemblies to serve over 75 countries and regions since 2010.Prcts
can be 100% compatible with original ones(LEMOS,FISCHERS,HIROSE,BINDERS SRIES)
Q1. Can I have a sample ?
Yes, we welcome sample order to test and check quality. Some samples are free, and some samples should be
paid in advance and the cost will be refund after further order.
Q2. What about the prction lead time?
We have stock, fast delivery below 5,000 pieces.
Q3. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx,TNT,SF or EMS. It usually takes 3-5 days to arrive.
Q4. Is it OEM available?
Yes. We have rich experience and good ability to put your design and idea into real prct, normally it take
about 20 to 30 days for new prct from mold design to final prction.
