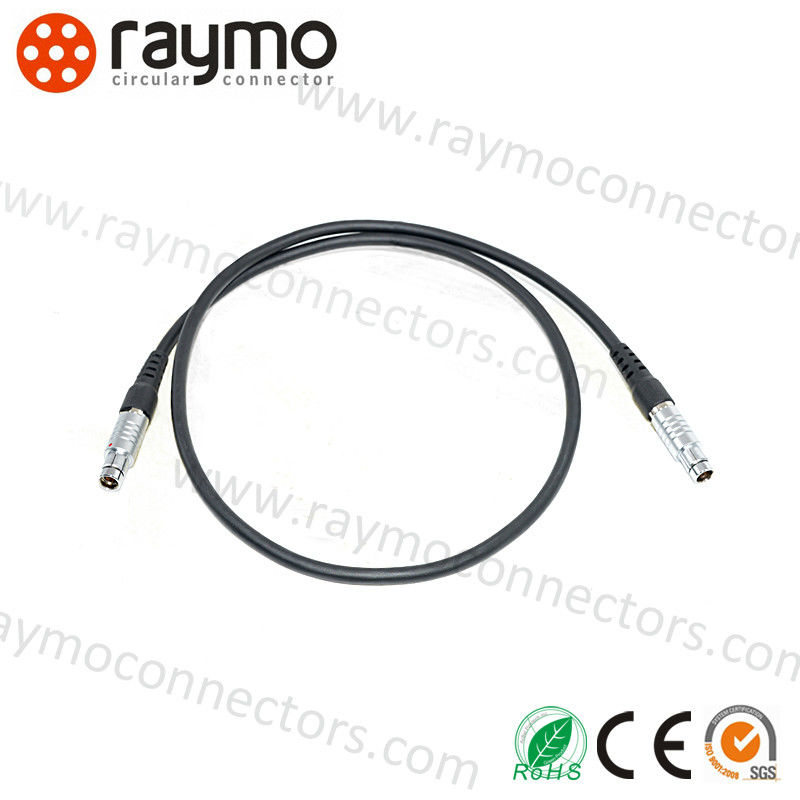

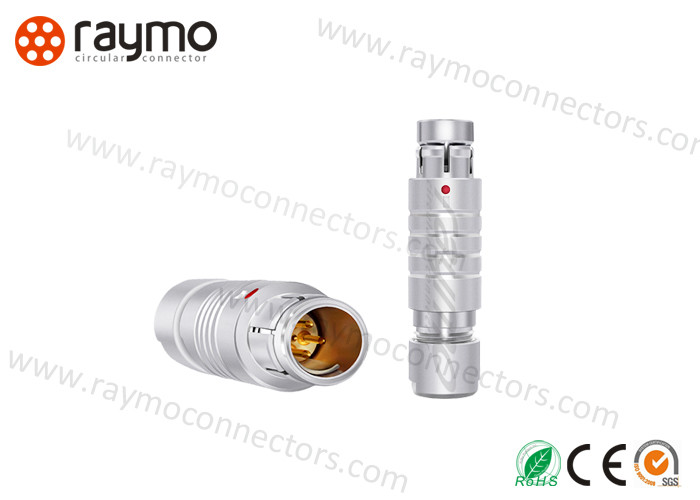

S SS straight cable plug audio video connectors, circular waterproof connector
Quick Detail of Circular Waterproof Connector
1) Advanced structure: Push Pull Self-locking
2) Mutiple pin: 2,3,4,5,6,7,8,9 to 22 pins optional
3) Contact type: PCB terminal and soldering terminal available
4) Assembly: wire to wire by over molding, wire to board
5) Colors: Black and natural color supported
6) Cable length: Different cable length could be customized
7) Application: Power, Automotive, LED, Electrical Equipment, Camera, Broadcast, Midcal equipments
8) Wire OD: 3.0mm to 9.0mm
9) Rated Voltage: According different contacts
10)Current Rating: According different contacts
11) Orientation: Straight / Right Angle
12) Termination: Soldering / PCB
13) Protection level: IP68
14) certification: CE, ROHS, ISO9001
15) Gender: Female and Male
16) OEM &ODM: Offer
Feature of Circular Waterproof Connector
1. Safe use in the field, thanks to a high degree of protection, high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly, extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. High temperature 125 degree, solder reflowing
5. Push-pull Self-locking Metal Connector
6. Compact and lightweight construction
7. The unique design of the contact core makes it safe and reliable in all environments
8. Available solder , PCB and right angle PCB contact
9. 360° EMC shielding
10. Alignment Key and Polarized Keying System to avoid cross-interface
Specification of Circular Waterproof Connector
|
RM-F Series Outdoor Waterproof Push Pull Connector
|
| Shell size |
0F(102). 1F(103), AF(1031),2F(104),3F(105) |
Contact No. |
2 pin ,3 pin, 4 pin, 5 pin ,6 pin ,7, pin 8 pin ,9 pin ,10 pin, 12 pin, 14 pin, 16 pin ,19 pin
|
| Shell model |
S SS SSC SA WSO SFE SFU SA WSO SFE SFU D DBPU DBPE DEE DEU DBPLE DBPLU DBEE DBEU KE KSE K KE |
MOQ |
1pc |
| Gender |
Male, Female |
Free Sample |
available
|
| Endurance |
5000 mating cycles |
IP Level |
IP68
|
| |
|
|
|
| Technical Characteristics |
| Temperature Range |
- 65° C, +200° C |
Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shock Resistance |
100 g [ 6 ms] |
Salt spray corrosion test |
>144hr |
| Climatical Category |
50/175/21 |
Shielding (min) |
> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating |
IP 68 |
Certifications |
ISO9001 CE ROHS SGS |
| Materials |
| Pin contact |
CuZn |
| Socket contact |
CuSn |
| Contact plating |
Au |
| Female insent |
PPS(UL 94V-0) |
| Material of cable jacket |
PVC or PUR |
| Screw |
CuZn |
| Nut |
CuZn |
Application of Circular Waterproof Connector
Waterproof Circular Connector sare widely used in the aerospace, military, automotive, electric power,
mechanical, automation, as well as the electrical service industry. We design and prce according to
international and the U.S. military standard, our prcts can substitute European, US and Taiwan
connectors, own the same quality.
Our prcts are widely used in, Transport, Broadcast ,electrical equipment, automated robots, electric
bicycles, ships, electric vehicles, Automotive etc.
1. Automotive
2. Audio-video
3. Communications
4. automated robots
5. Information Systems
6. Medical
7. electric vehicles
Ip68 cable connector is widely used in video transmission, transformer and network signal transmission equipment in the market; also in communication field, outdoor display screen, home network port, signal transmitting and receiving equipment, 4G network field, etc
Advantage of Circular Waterproof Connector
1. High degree of protection IP68, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts , ≥ 5000 times mating life
3. Push pull self locking type
4. Support samples, retail and bulk orders
Why choose RAYMO Circular Connector :
A: Free cable solutions
B: 100% compatible lemo connector
C: OEM or ODM accepted
D: Help you save at least 50% cost, Bend relief of plug are free
E: Cable assembly offer
F: Free sample for confirmation
G: Fast delivery time to help you save prction time
