| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | RM-EGG.1B.310.CLL |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/week |
| Prct Name: | Push Pull Circular Receptacle | Advanced Structure: | Self-locking |
|---|---|---|---|
| Mutiple Pin: | 10 Pins | Contact: | Solder |
| Application: | Test & Measurement/Medical Equipments/Energy/Extreme | Current Rating: | 2.5A |
| Protection Index: | IP50 | Gender: | Female |
| Highlight: | 2.5A Circular Push Pull Connectors,10 Pin Circular Push Pull Connectors,IP50 10 Pin Circular Connector |
||

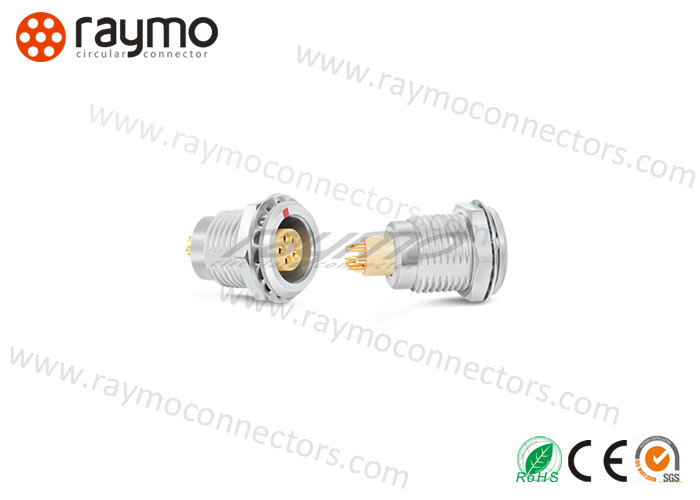

10 Pin IP50 2.5A Circular Push Pull Connectors EGG.1B.310.CLL
10 Pin Circular Connector EGG.1B.310.CLL Panel Mount Socket Receptacle
1. EGG.1B.310.CLL push pull circular connector Prct Description:
RAYMO RM-EGG-1B-310-KS can 100% compatible with Lemo original EGG.1B.310.CLL, customer choose our connector as it's high quality, competitive price, fast delivery, and fast respond after-sales service.
RM-B Series offers a mlar, ergonomic, rugged and reliable circular multipole connector for applications needing quick and secure Push-Pull latching. Making it an ideal choice for test and measurement, instrumentation, medical devices, research and audio/video applications.
2. EGG.1B.310.CLL push pull circular connector techinical characteristics:
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular push pull connectors |
| Connector type | Panel mount receptacle socket |
| Contact Gender | Pole(Female) |
| Number of contacts | 10 contact |
| Mounting Style | Panel |
| Termination Style | Solder |
| Current Rating | 2.5A |
| IP Rating | IP50 |
| Series | 1B(14mm) |
| Shell Plating | Chrome |
| Shell Material | Metal |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -55°C, +250°C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hrs |
| Climatical Category | 50/175/21 |
| Humidity | Up to 95% at 60°C |
3. EGG.1B push pull circular connector metal circular push pull connector with below features:
•Advanced structure: Self-locking
•Multipin options to meet customer different demand.
•Shell size 1B
•Contacts from 2-16pins
•Different key options to avoid misconnection between same size.
•360° EMC shielding
•A variety of collect sizes to suit different cable OD.
4. EGG.1B push pull circular connector Application:
•Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
•Medical equipments like Disposable equipment
•Test & measurement like Data acquisition
•Broadcast, like HD and SD cameras
•Energy, like Renewable energies
•Extreme, such as Sailboat racing
5. Raymo compamy with below advantages:
•Original manufacturer
•Excellent R&D team
•10+ years experience
•OEM & ODM acceptable
