| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/ROHS/SGS/ISO:9001-2015 |
| Model Number: | PHG.2KC.319.CLLD52Z |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, Western Union, D/A, D/P,L/C, MoneyGram |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | IP68 Waterproof Push Pull Connector | Model: | PHG Cable Mount Socket |
|---|---|---|---|
| Contact No.: | 2-32 Pins | Shell Size: | 0K,1K,2K,3K |
| Shell Color: | Natural Or Black Shell | Insulator: | PPS, PEEK |
| Gender: | Male, Female | Contact Type: | Solder/PCB/90° PCB Contacts |
| IP Ranking: | IP68 | Cable Assembled Or Not: | Yes |
| Highlight: | IP68 Circular Waterproof Connector,SGS Circular Waterproof Connector,IP68 Waterproof Cable Connector |
||
High Tensile Compact IP68 Circular Waterproof Connector Silicone Sealing
Compact Waterproof Cable Connector Silicone Sealing High Tensile Compressive Strength
Waterproof Cable Connector Description
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 55/175/21 | Shielding (min) | > 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |

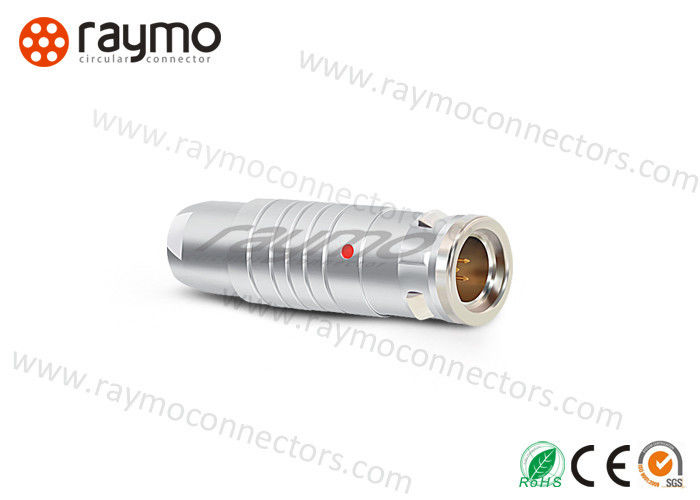

RM-K Series 0K 1K 2K 3K series PHG cable mount sokcet
|
Part No.: |
PHG.2K.319.CLLD52Z/ RM-PHG-2KC-319KS52Z |
|
Prct Description: |
2K size connector, PHG cable mount socket, 19pin female contact, 52 cable collet, nut for a bend relief, natural chrome plated shell in brass |
K series Push pull locking metal connector, cable to cable connector, free socket, inline connector
|
Main Futures |
|
|
1 |
Waterproof Secure high performance push-pull Self-locking system |
|
2 |
100% compatible with original Lemo K series connector |
|
3 |
can plated with white or black chrome |
|
4 |
2-32pin available |
|
5 |
Available solder and PCB or right angle PCB contact. |
|
6 |
360° EMC shield |
|
7 |
Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach |
|
Shell size |
Contacts no. ( Both with Solder & PCB type ) |
|||||||||||
|
0K |
2 |
3 |
4 |
5 |
6 |
7 |
9 |
|
|
|
|
|
|
1K |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
|
|
2K |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
14 |
16 |
19 |
|
3K |
3 |
4 |
6 |
8 |
9 |
10 |
12 |
14 |
14 |
16 |
18 |
21 |
|
26 |
30 |
32 |
|
|
|
|
|
|
|
|
|
|
Our Company
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
Our Exhibition
|
2020.11 |
Electronica Munich, Germany |
|
2019 9.24-9.26 |
Testing Expo, Shanghai |
|
2018 11.12-11.15 |
Electronica Munich, Germany |
|
2017 9.11-9.16 |
NAB Show,Netherlands |
|
2016 4.11-4.15 |
HK Fair |
|
2015 10.2-10.7 |
ICEEB, Brasil |
|
2014 10.11-10.15 |
HK Fair |
|
2014 4.11-4.15 |
HK Fair |
Why Choose US?
100% compatible lemo& connector
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Help you save your cost
Fast delivery: 3-15 working days
Cable assembly offer,help you save prction time
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
