| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RM-EGG-3KC-314KS |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per week |
| Connector Style: | EGG Panel Mount Fixed Socket | Series: | 3K Series (0K, 1K, 2K Series Is Available) |
|---|---|---|---|
| Contact No.: | 14 Pin （2, 3, 4, 6 ...... 30 Pin Are Available) | Keying: | 1 Key (G, 0 Degrees) (2 Keys Are Available) |
| IP Rating: | IP68 | Housing Material: | Brass |
| Housing Color: | Natural Chrome | Contact Materials: | Brass With Gold Plated |
| Rated Current: | 5 A | Contact Dia.: | 0.7 Mm |
| Insulator: | PPS Or PEEK | Manufactural: | Yes |
| Cable Assemblies: | Yes | Export Port: | Shenzhen |
| Highlight: | 5A Circular Waterproof Connector,14pin Circular Waterproof Connector,5A Waterproof Plug Connector |
||

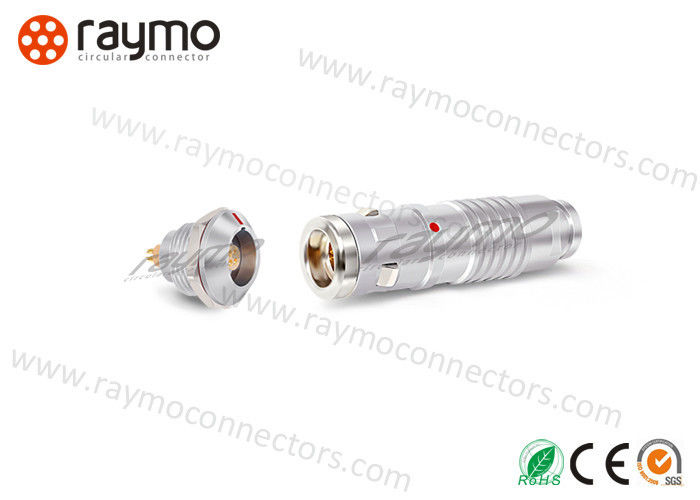

Fixed Receptacle 5A Circular Waterproof Connector Natural Chrome Housing
5 A Current Fixed Receptacle Waterproof Plug Connector Natural Chrome Housing
Main features:
– Security of the Push-Pull latching system
– Watertight connection (IP 68/IP 66)
– Multipole types 2 to 30 contacts
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding
– High packing density for space savings
– Rugged housing for extreme working conditions.
– Can be 100% compatible with original connectors
– High quality with reasonable prices
|
Technical Characteristics |
|||
|
Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
|
Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP68 |
|
Temperature Range |
-55°C~250°C |
Climatical category |
55/175/21 |
|
Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ >80db at 1GHZ |
|
Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS |
Prct Description
P/N: RM-EGG-2KC-319KS (EGG.3K.314.CLL)
Description: EGG 3K series panel mount fixed socket, nut fixing, 1 key, 0 degrees, 14pin female solder contacts, outer shell in natural chrome-plated brass, PPS insulator
|
Shell size |
Contacts No. with solder & PCB type |
| 0K | 2 3 4 5 6 7 9 |
| 1K | 2 3 4 5 6 7 8 10 12 14 16 |
| 2K | 2 3 4 5 6 7 8 10 12 14 16 19 26 |
| 3K | 3 4 6 7 8 10 12 14 16 18 21 30 |
Photo & Dimensions:
Application
RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Packing & Delivery
Packing:
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About us
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
