| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | FGG.1B.304.CLAD62Z |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/week |
| Prct Name: | Circular Push Pull Connector | Number Of Contacts: | 4 Pins |
|---|---|---|---|
| Mounting Type: | Cable Mount | Termination Method: | Solder |
| Contact Gender: | Male | IP Rating: | IP50 |
| Contact Plated: | Gold | Color: | Black/silver |
| Highlight: | 4 Pin lemo push pull connector,lemo push pull connector FGG.1B.304.CLAD62Z,lemo push pull connector IP50 |
||

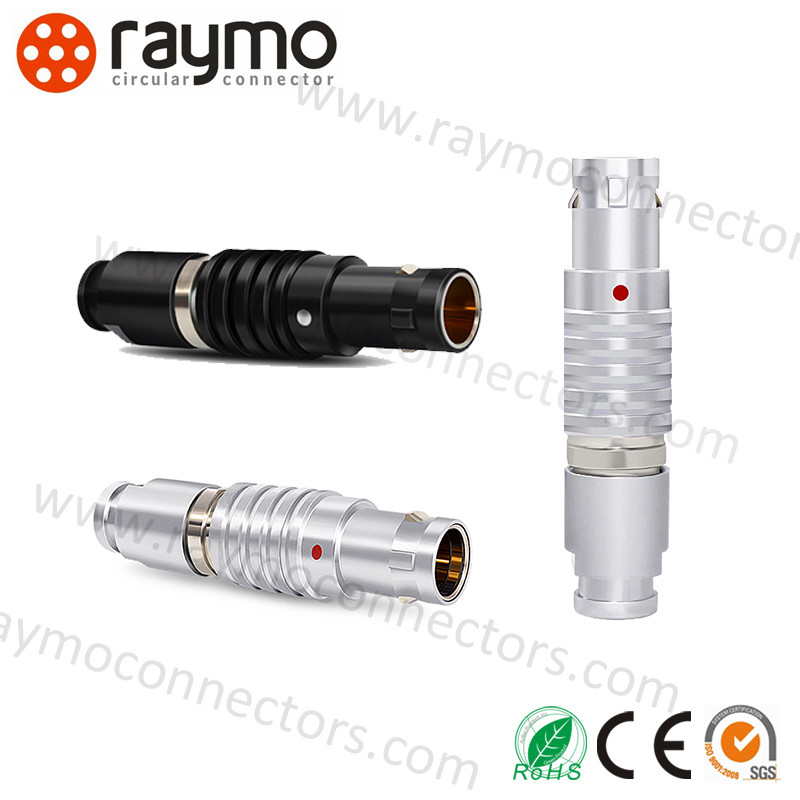

Lemo Compatible FGG.1B.304.CLAD62Z 4 Pin Circular Push Pull Connector
The 1B series 4-contacts male circular connector has a plug in-line connection. This cable mount connector has a current rating of up to 10A. This connector features a highly precise push-pull self-latching system equipped with cable collet and nut for fitting bend relief for an easy and secure connection. It has a rugged and robust design for harsh outdoor applications. This connector is made from chrome-plated brass that includes a nickel-plated brass latch inner sleeve and collet nut. The free plugs are supplied with collets to take a maximum cable diameter of 9mm.
With 360° shielding for enhanced EMI performance, the 1B series of cable connectors are perfect for applications requiring high accuracy and interference-free signals. Cable mount plugs mate with a panel or PCB mount socket. Cable mount sockets mate with panel plugs.
Self-Latching Connection System for Push Pull Connector
The self-latching system is simple and effective retention solution, providing complete protection against vibration, shock or any pull on the cable.
Engaging the system for Push Pull Connector
To initiate the self-latching system the plug is simply pushed axially into its mating half. Once firmly latched in place via the internal latches the connection is virtually impossible to break. No amount of pulling on the cable or any other part of the connector body will release the two parts.
Techinical characteristics for FGG.1B.304.CLAD**Z Push Pull Connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular push pull connector |
| Connector type | Cable mount plug |
| Contact Gender | Male |
| Number of contacts | 4 contact |
| Mounting Style | Cable mount |
| Termination Style | Solder |
| Current Rating | 10.0A |
| IP Rating | IP50 |
| Series | 1B |
| Shell Plating | Chrome |
| Shell Material | Metal |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -55°C, +250°C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hrs |
| Climatical Category | 50/175/21 |
| Humidity | Up to 95% at 60°C |
Features and Benefits for FGG.1B.304.CLAD**Z Push Pull Connector
Applications for FGG.1B.304.CLAD**Z Push Pull Connector
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment ,Audio / Video, Test and Measurement, Communications prct line. Some of the most common areas are:
Drawing for FGG.1B.304.CLAD**Z Push Pull Connector
