| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | FGG.00.306.CLAD35Z |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD3.1/PC |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per week |
| Connector Style: | Circular Push Pull Connector | Series: | 00 |
|---|---|---|---|
| IP Rating: | IP50 | Contact No.: | 6 Way |
| Keys: | 1 Key (G, 0 Degrees) | Housing Material: | NATURAL Chrome Plated Brass |
| Application: | Communications | Certification: | ISO9001,CE,RoHS |
| Highlight: | LEMO 00B FGG Connector,Aviation Plug FGG Connector,6 Pin Circular Push Pull Connector |
||

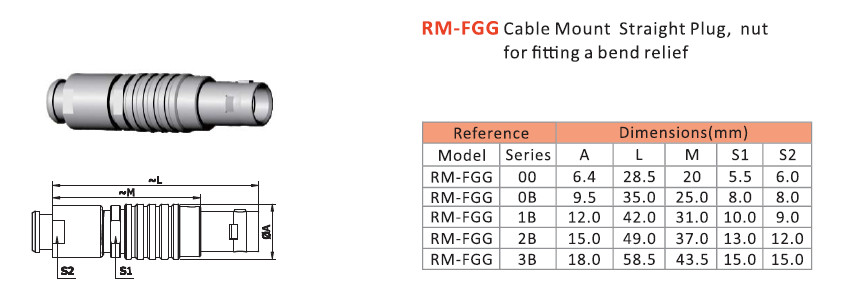

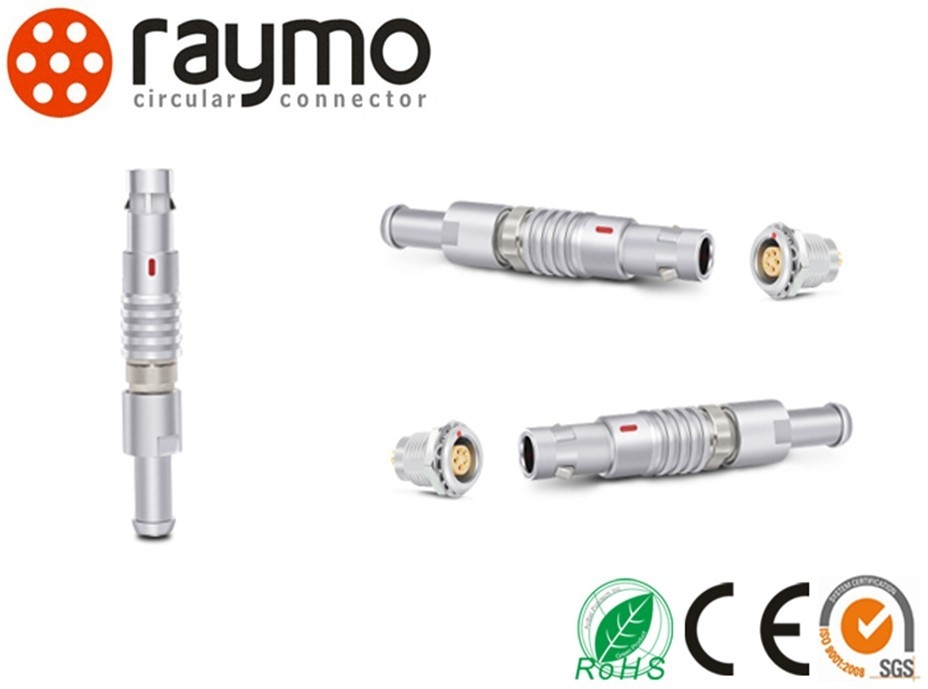

Prct Description RAYMO RM-B FGG Circular Push Pull Connector
P/N: RAYMO FGG.00C.306.JS35Z= LEMO FGG.00.306.CLAD35Z
FGG 00 circular push pull connectors can intermateable with FGG.00 LEMO connector but cheaper. ShenZhen Raymo Electronic is a professional push pull connectors manufacturer integrating connectors research and development, Prction and sales!
Offer this range of push pull circular connectors specifically designed for applications that require secure and precise connector signal integrity.
| Mechanical Shock | 100g-6ms |
| Salt spray corrosion test | ≥96h |
| Protection level | IP50 |
| Connector Type | socket,female pins |
| Number of Positions | 2-16pins |
| Termination | Solder |
| Fastening type | Push Pull |
| Key code | G(A…M&R) |
| Shell matrerial | Brass |
| Shell Finish | Chrome plated |
| Shell Color | Natural |
| Contact Material | Brass |
| Contact Finish-mating | Gold |
| Contact Color | Gold |
| Insert material/insulator | PPS/PEEK |
| 1.Shell size | 00 to size 3(#00,#0,#1,#2,#3) |
| 2. Multi-pole types | 2 to 32 contacts |
| 3. Security | push-pull self-latching system |
| 4.contacts (straight or elbow) | Solder ,print or crimp |
| 5.Packing | High packing density for space saving |
| 7.Key options | 0°,30°,45°,60° |
| 8. Male contacts and female contacts | brass with gold-plated surface |
| 9. Out shells | brass with chrome nickel-plated surface |
| 10. Insulator | PPS and PEEK |
| 11.Screening | 360 angle screening for full EMC shielding. |
Circular Push Pull Connector Main features:
– Security of the Circular Push Pull Connector
– Multipole types 2 to 32 contacts
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding
– High packing density for space savings
– Rugged housing for extreme working conditions.
– High quality with reasonable prices
RAYMO Circular Waterproof Push Pull Connector Application
RAYMO push pull connector series is designed for indoor or vacuum-tight applications, making it an ideal choice for test and measurement instrumentation, medical devices, research, audio/video and applications where a highly reliable, quick-mating connector is needed. Mlar insert configurations include a wide range of high-density or hybrid electrical contacts, including solder, PCB straight or elbow, coax contacts.RAYMO’s proprietary keying system allows for a higher contact density while preventing mismating. This RAYMO push pull connector series includes the family size range of 0B to 5B.
Contact us today to discuss your next application.
Packing & Delivery for Raymo Circular Push Pull Connector
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About Raymo Circular Push Pull Connector
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
FAQ About Raymo Circular Push Pull Connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular Waterproof Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
