| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHs2.0, CE, ISO9001:2015, SGS, Reach |
| Model Number: | 09-0332-00-12 |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, D/A, D/P,L/C, MoneyGram, Western Union |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | 680 Series Connectors | Connector Locking System:: | Screw |
|---|---|---|---|
| Contact No.: | 2,3, 4, 5, 6,7 ,8, 12 | Insulator: | PBT |
| Shell Material: | Brass In Nicked Plated | Degree Of Protection: | IP 40 |
| Mechanical Operation: | >500 Mating Cycles | Customs Tariff Number: | 85369010 |
| Highlight: | M16 Panel Mount Connectors,PBT Insulator Panel Mount Connectors,Mini Size M16 Connector |
||
| Attribute | Value |
| Number of Contacts | 12 |
| Mounting Type | Cable Mount |
| Connector Size | Miniature |
| Plug/Socket | Plug |
| Termination Method | Solder |
| IP Rating | IP40 |
| Contact Gender | Male |
| Current Rating | 6.0A |
| Voltage Rating | 250 V |
| Mating Type | Screw Lock |
| Body Orientation | Straight |
| Series | 680 |
| Contact Plating | Silver |
| Minimum Operating Temperature | -40°C |
| Contact Material | Brass |
| Maximum Operating Temperature | +85°C |

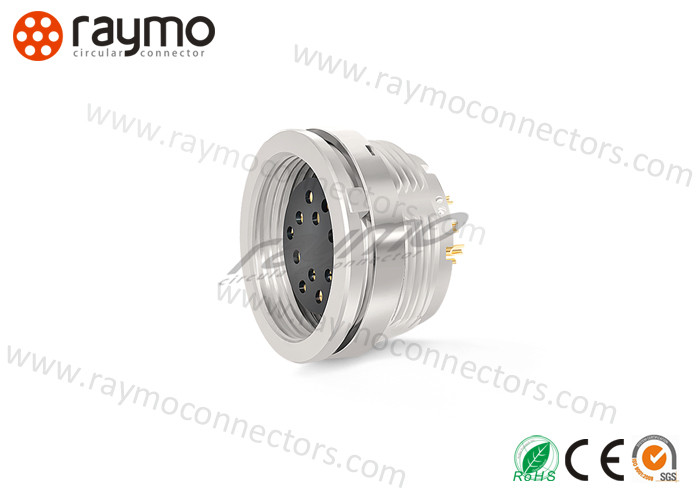

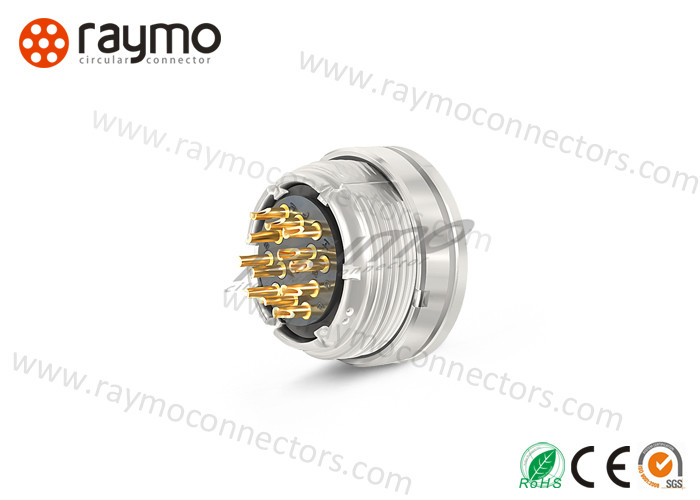

M16 series connector equivalent as Binder Series 680 678 423, 723 family of connectors are rugged,
high-performance circular connectors with excellent EMI shielding .
Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are
available in many styles and mounting methods.
| Wire gauge | max, 0.75mm²(max. AWG 20) ( 3-8 poles) |
| max, 025mm²(max. AWG 24) (12 poles ) | |
| Cable outlet | 3-6mm/6-8mm |
| Mechanical opera | >500 ma |
| Upper temperature | + 85 °C |
| Lower temperature | – 40 °C |
| Rated voltage | 250 V (32 V) 2-4 poles |
| 60 V (32 V) 5 poles | |
| 250 V (32 V) 6poles | |
| 125V (32 V) 7poles | |
| 60 V (32 V), 8-12poles | |
| Rated impulse voltage | 1500V 2-6poles |
| 800V 7 poles | |
| 500V (32 V)8-12poles | |
| Rated current (40 °C) | 7A 2-3 poles |
| 6A 4-6 poles | |
| 5A 7-8poles | |
| 3A 12poles | |
| Contact resistance | ≤ 5 MΩ 3-8 poles |
| ≤ 3 mΩ 12poles |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
