| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | GK0WCM-P12UM00-000L |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/week |
| Prct Name: | AMC HIGH-DENSITY Push Pull Connectors | Number Of Contacts: | 12 Contacts |
|---|---|---|---|
| Size: | 0W | Model: | GK |
| Termination Method: | Solder | Contact Gender: | Female |
| IP Rating: | IP68 | Sample: | Free |
| Highlight: | High Density Circular Push Pull Connectors,0W Circular Push Pull Connectors,AMC Push Pull Connectors |
||

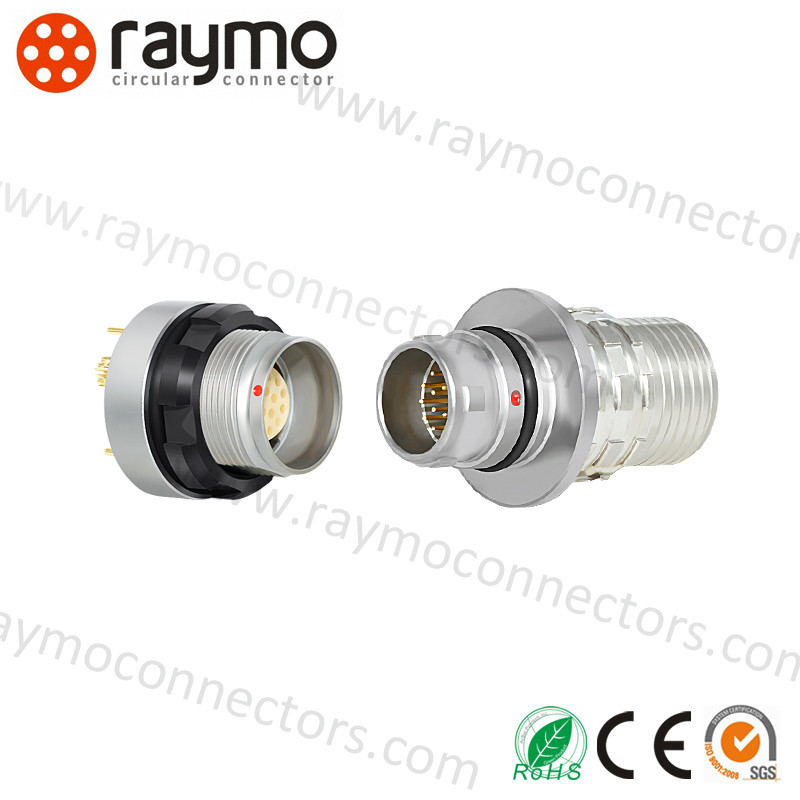

Prct intrce for AMC high-density Circular Push Pull Connectors
Raymo G series is compatible to RAYMO AMC High-Density series connector, which is a rugged, ultra-miniature connector solution for extreme environments.
The connector is available in two locking styles standard. Break-Away connectors can be easily disconnected by tugging on the cable, and are ideal whenever the cable is a potential snag hazard. Screw-Lock connectors remain connected despite environmental conditions, including tension on the cable, shock and vibration.
Prct details for AMC high-density Circular Push Pull Connectors
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular push pull connectors |
| Connector type | socket/receptacle |
| Contact Gender | Pole(Female) |
| Number of contacts | 12 contact |
| Mounting Style | Panel mount |
| Termination Style | Solder |
| Current Rating | 1-5A |
| IP Rating | IP68 |
| Shell Plating | Chrome |
| Shell Material | Metal |
| Wire Gauge | 28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -55°C, +125°C |
| Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt spray corrosion test | >96hrs |
| Climatical Category | 50/175/21 |
| Humidity | Up to 95% at 60°C |
FEATURES for AMC high-density Circular Push Pull Connectors
• High contact-density connector
• Rugged, robust housing with non-reflective
surface plating
• Submersible, watertight protection classes
IP68 / IP69 / IP6K8 / IP6K9K
• Break-Away for maximum safety
• Mechanical coding with color-coded visual
indicator
APPLICATIONS for AMC high-density Circular Push Pull Connectors
• Tactical radios and accessories
• Ruggedized computers and tablets
• Power supply
• Unmanned systems
• Optical devices
• Software defined radios
• Defence and security systems
Our advantage
Original manufacturer
Excellent R&D team
10+ years experience
OEM & ODM acceptable
100% quality tested
100% fast delivery
100% after-sales service
Certificates for AMC high-density Circular Push Pull Connectors
CE
RoHS
ISO:9001-2015
SGS
REACH
