| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | A11YAR-P16 |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD3.1/PC |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per week |
| Connector Style: | Raymo AMC SERIES | IP Rating: | IP69 |
|---|---|---|---|
| Contact No.: | 16 Way | Series: | BREAK EASY WAY |
| Keys: | 1 Key (G, 0 Degrees) | Housing Material: | Ash Plated Brass |
| Application: | TRANSFER | Certification: | ISO9001,CE,RoHS |
| Highlight: | RAYMO 16 Pin Circular Connector,16 Pin Circular Connector,16 Pin Round Connector |
||

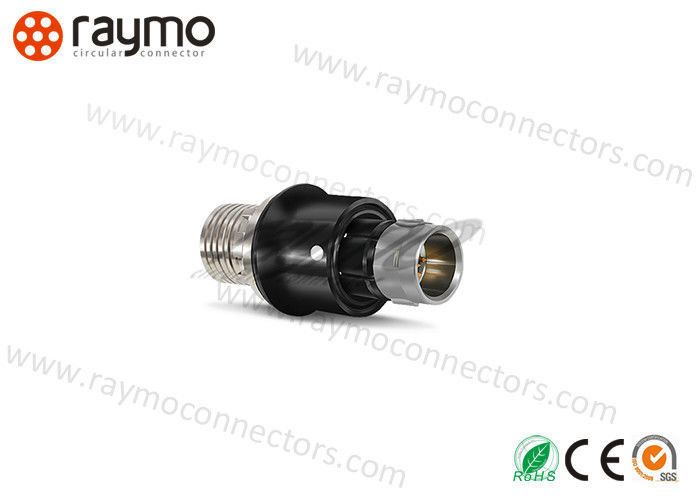

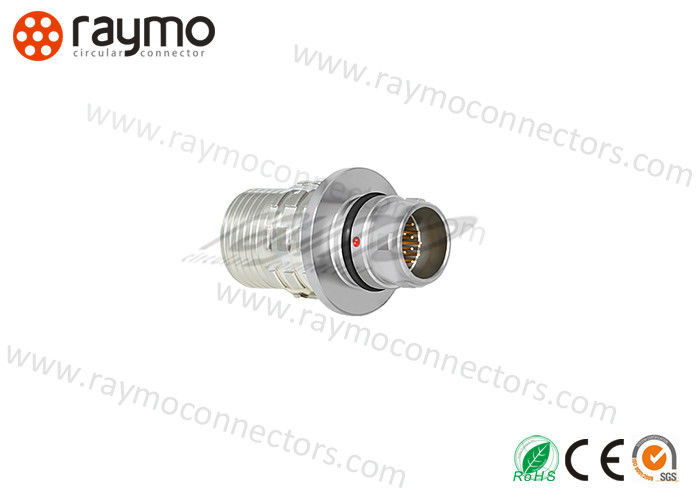

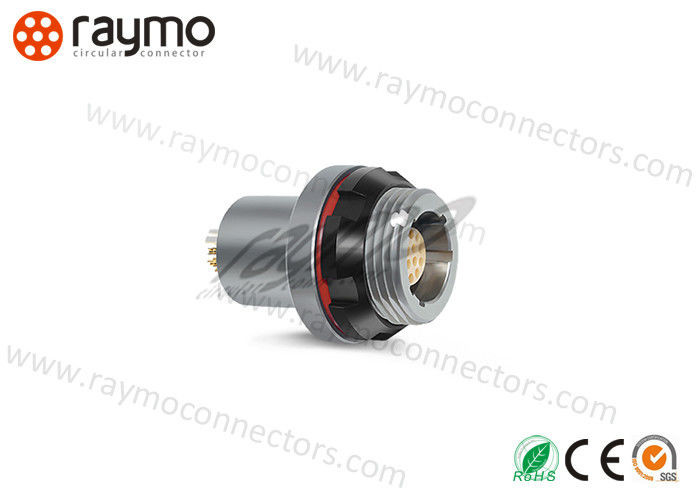

RAYMO 16 Pin Circular Connector AMY Y Series Cable Mount Plug
A11YAR-P16 16PINS CIRCULAR CONNECTOR AMY Y SERIES CABLE MOUNT PLUG
Prct Description RAYMO/ AMC connector
P/N: GW1YAR-P16UD00-R00L
Description: Circular connector, amc SERIES, CABLE MOUNT PLUG, 16 CONTACTS, SOLDER CABLE PLUR PUSH PULL
Waterproof in accordance with protection class IP69
Operating temperature range from –51 °C to +125 °C
3 – 55 connectors (Push‐Pull), 3 – 37 connectors (Break‐Away)
High‐speed data technology
6 sizes (Push‐Pull), 5 sizes (Break‐Away)
|
Shell size |
Contacts No. with solder & PCB type |
|
RM-0C |
7pin |
|
RM-1C |
10pin 16pin |
|
RM-AC |
19pin |
|
Technical CharacteristicsRAYMO/ AMC connector |
|||
|
Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
|
Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP50 |
|
Temperature Range |
-55°C~250°C |
Climatical category |
55/175/21 |
|
Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ >80db at 1GHZ |
|
Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS |
RAYMO Circular Connector RAYMO/ AMC connector Application
RAYMO AMC is a rugged miniature connector solution for extreme environments. The connectors are waterproof when mated , offer robust mechanical coding with a visual indicator, and are EMI shielded.
The connectors have been designed and tested to survive many of the factors detrimental to the performance of connectors in harsh environments, including: sand and dust, extreme temperatures, humidity, corrosion, solar radiation, shock, vibration and torque.
Whether in extreme environments or under high mechanical stress, RAYMO connectors ensure reliable electrical communication, even in the most demanding conditions. The RAYMO AMC is available in a wide range of sizes and contact inserts. You can choose between four versions – Push-Pull, Break-Away, Easy-Clean and High-Density.
Packing & Delivery for RAYMO/ AMC connector
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About Raymo Circular RAYMO/ AMC connector
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
FAQ AboutRAYMO/ AMC connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular Waterproof Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
