| Place of Origin: | CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/ROHS/REACH/SGS/ISO9001 |
| Model Number: | RM-DKE-2F1C-P11KS |
| Minimum Order Quantity: | 1PCS |
| Price: | 4.5-14.5 |
| Packaging Details: | PE BAG AND CARTON |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS/month |
| Type: | Push Pull Circular Connectors | Gender: | Female Solder Contacts |
|---|---|---|---|
| Application: | Automotive | Color: | Natural Color |
| Insulator: | PPS/PEEK | Shell Material: | BRASS |
| Endurance: | 5000 Cycles | IP Ranking: | IP68 |
| Highlight: | Fischer Dke Circular Push Pull Conenctors,PEEK IP68 Circular Connectors,104 Shell IP68 Circular Connectors |
||

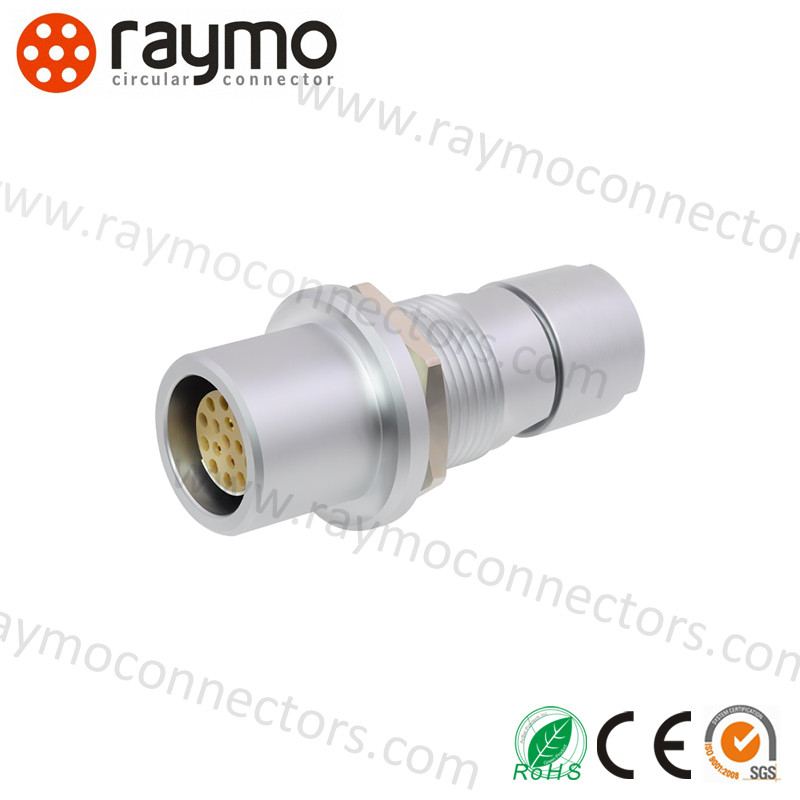

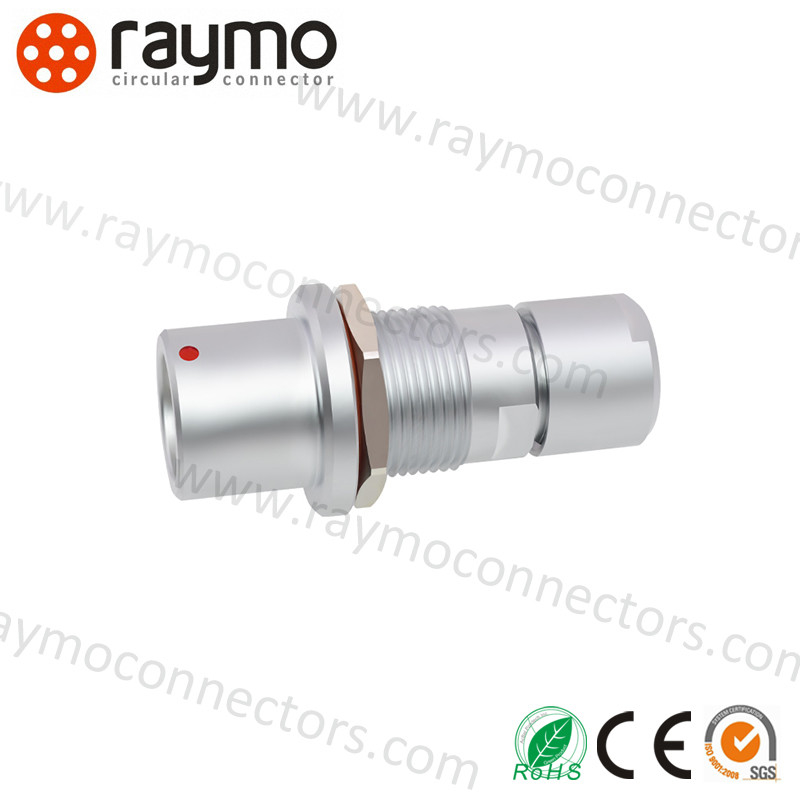

| RM-F Series Circular Push Pull Connector | |||
| Shell size | 0F(102). 1F(103), AF(1031),2F(104),3F(105) | Contact No. | 2,3,4,5,6,7,8,9,10,12,14,16,19 |
| Shell model | Straight plug FGG | MOQ | 1pc |
| Gender | Male, Female | Free Sample | available |
| Endurance | 5000 mating cycles | IP Level | IP68 |
| Technical Characteristics | |||
| Temperature Range | - 40° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 68 | Certifications | ISO9001 CE ROHS SGS |
All Multipole body styles are mechanically coded.
Code 1 is the standard, but other codes can be requested
If you have purchased fischer connector and know the original model, please tell us. We will directly offer you our corresponding one.
If you don’t know much about the connector, please make choose according the following factors:
