Product Overview

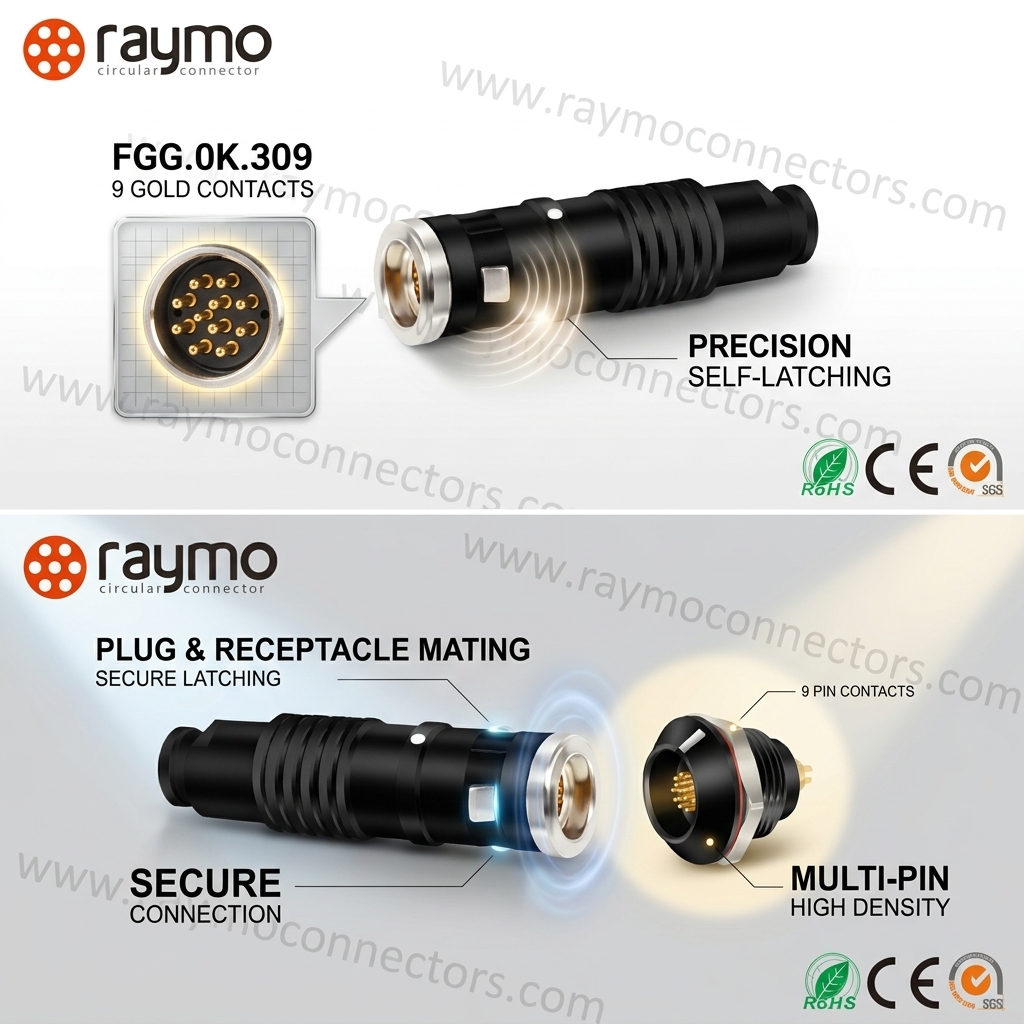

The FGG.0K.309 is a 0K shell size straight cable plug from our 0K / 1K / 2K / 3K push-pull family. It carries 9 male solder contacts, uses the standard G key (1 key) alignment, and mates with the corresponding 0K fixed socket or free receptacle. Dimension, keying position and collet thread follow the international 0K footprint, so it can drop into existing tooling without redesign.

Because buyers often search by the original part number, we list the cross reference below so your engineering team can confirm fit in one step.

Cross Reference

Why Engineers Re-order It

• Shell, collet thread and key position machined to the 0K drawing, no harness rework needed.

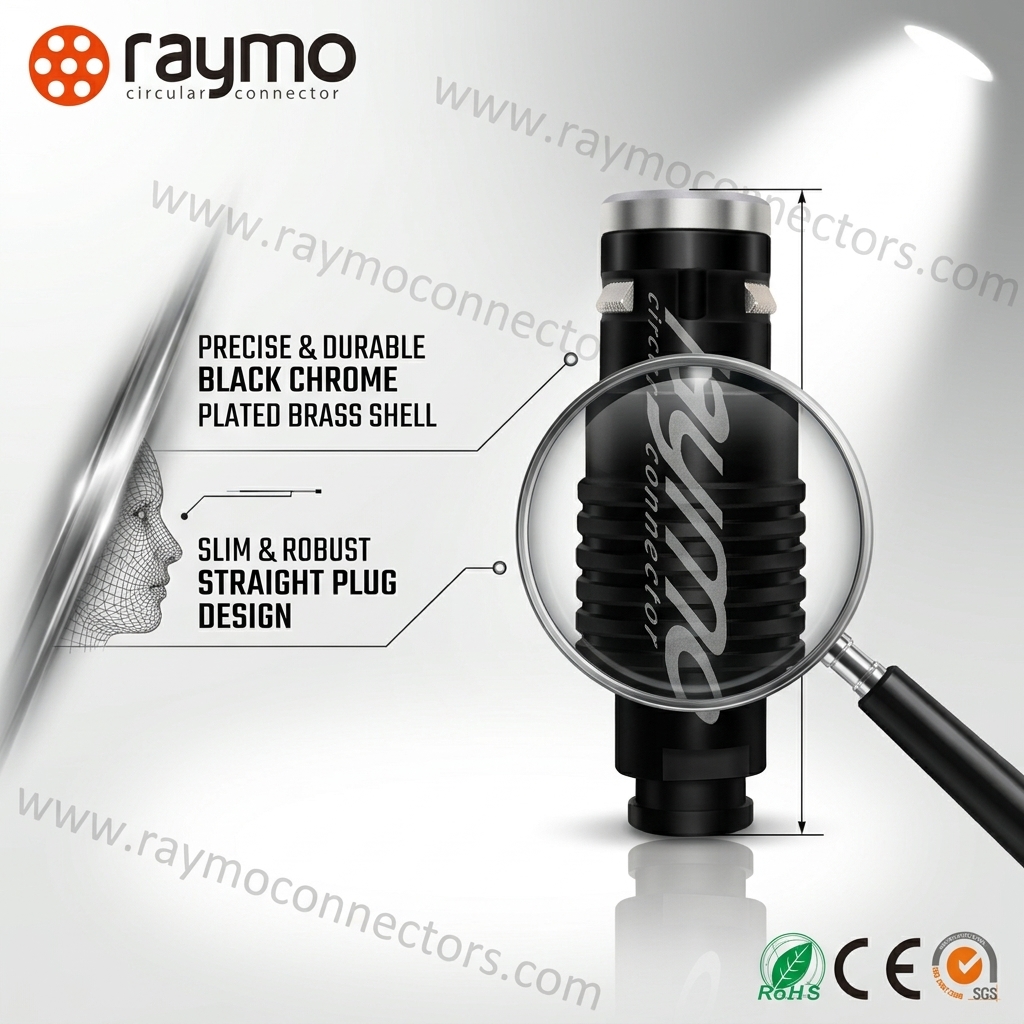

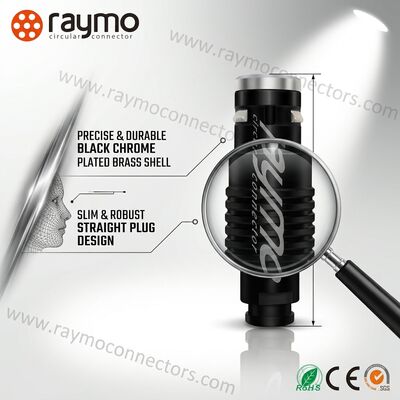

• Brass shell with black chrome plating resists fingerprint marks and abrasion in handling.
• PPS insulator keeps contact pitch stable through reflow-adjacent processes.
• Gold plated brass contacts keep millivolt drops low on signal pairs.

Technical Characteristics

Ordering Information

Pick the contact count first, then the collet size for your cable OD (3.1 mm to 6.5 mm available), then the key option. Color options are black chrome, natural chrome and matte black anodized. Prototype quantity from 1 piece, with free samples for qualified projects.
