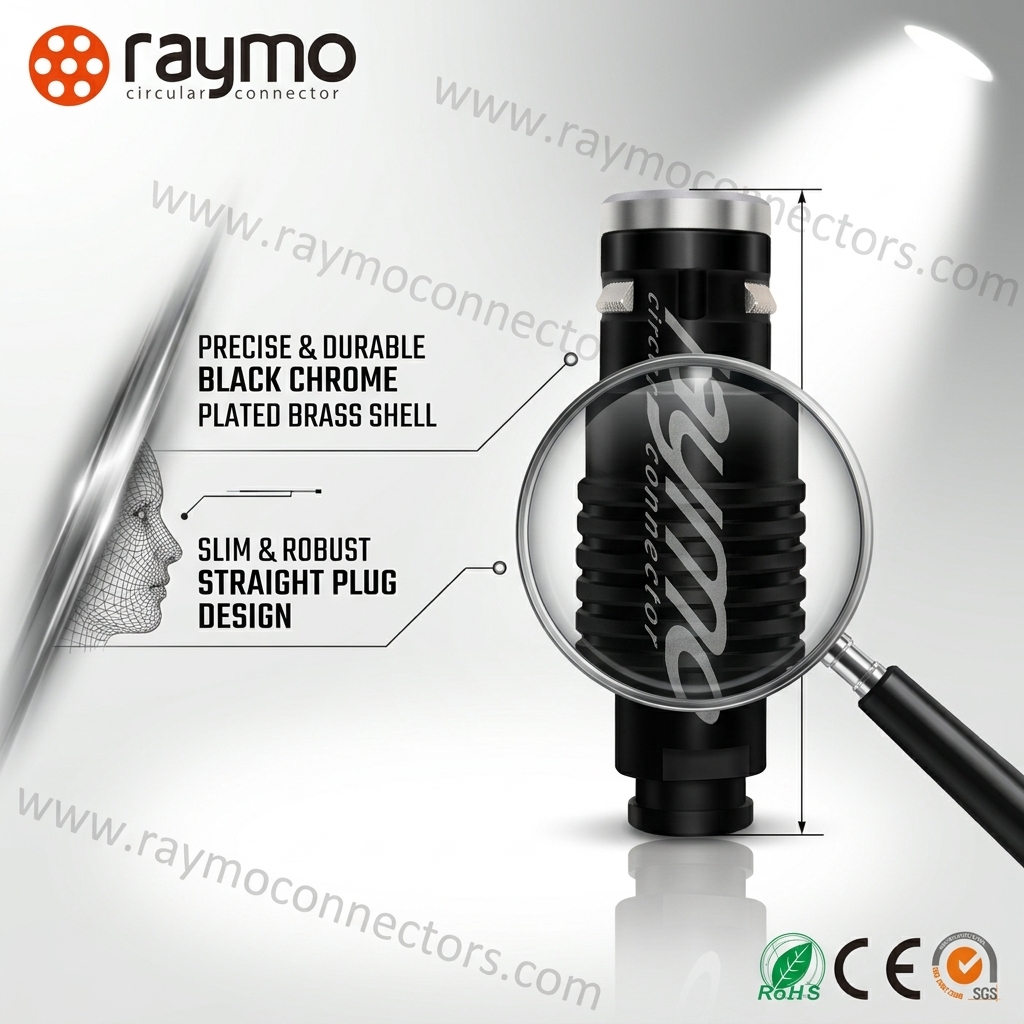

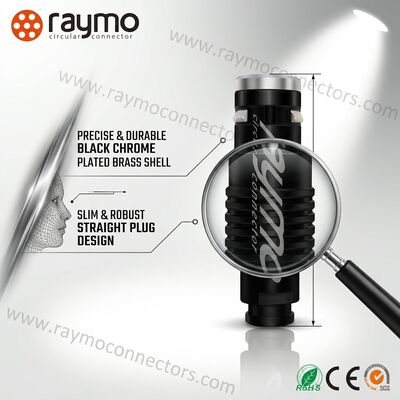

FGG.0K.309 9 Pin Self Latching Push Pull Plug 5000 Mating Cycles 0K Metal Connector

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	RAYMO
Certification:	CE / RoHS / SGS / ISO9001:2015
Model Number:	FGG.0K.309

Minimum Order Quantity:	1 Piece
Price:	USD 8.5 - 14.5 / Piece
Packaging Details:	PE bag + anti-static bag, export carton, OEM branded box available
Delivery Time:	3-5 working days for stock, 7-10 days for bulk order
Payment Terms:	T/T, L/C, PayPal, Western Union
Supply Ability:	5000 Pieces per Week

Contact Now

Latching:

Stainless Steel Latch Spring, Push Pull Release

Mating Cycles:

>5000

Coupling Force:

8 - 20 N Across Rated Life

Vibration:

10-2000Hz, 15g

Shock:

>100g, 6ms

Contact No.:

9 Pin Male Solder

Contact Resistance:

<5 MOhm After 5000 Cycles

Series:

0K Series

Warranty:

12 Months On Latch And Contact Block

Highlight:

Self Latching Push Pull System

5000 Mating Cycles Endurance

Vibration Proof Locking Mechanism

Latch First, Then Seal

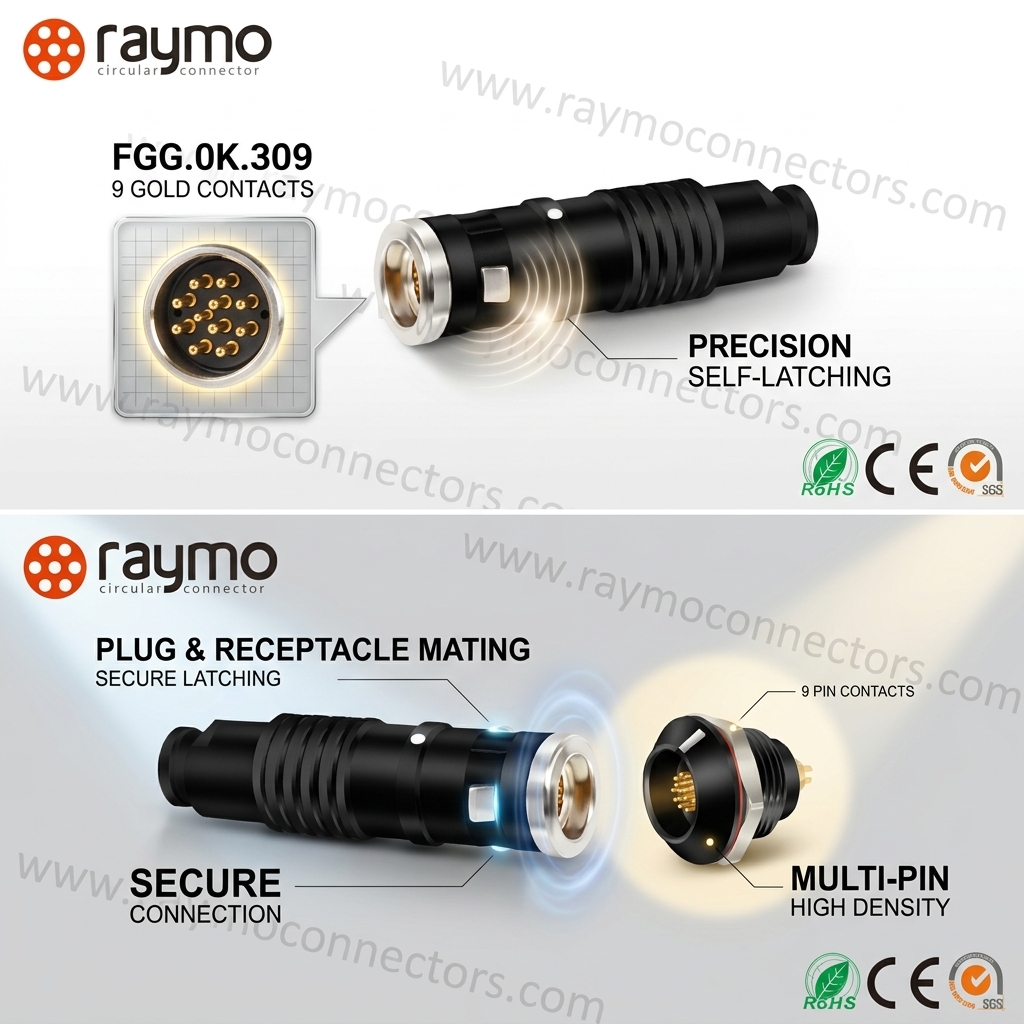

Push-pull connectors fail in the field for one dull reason: the latch wears and the plug starts to back out under vibration. The FGG.0K.309 uses a stainless steel latch spring that engages a machined groove in the socket shell, so retention depends on metal-to-metal interference instead of plastic friction. Pulling on the outer shell releases the latch; pulling on the cable never does.

Step	What happens
1. Align	G key slides into the socket groove, blind mating possible by feel
2. Push	Latch spring compresses, front gasket starts to load
3. Click	Spring snaps into the groove, seal fully loaded, IP68 achieved
4. Lock check	Light pull on the shell confirms engagement
5. Release	Pull the outer shell rearward, never the cable

Endurance and vibration data

Endurance	>5000 cycles	Salt spray test	>96h
Protection Index (mated)	IP68	Humidity	Up to 95% at 60°C
Temperature Range	-55°C ~ 250°C (-20°C ~ 100°C waterproof)	Climatic category	55/175/21
Vibration	10-2000Hz, 15g	Shock	>100g, 6ms
Contact Dia.	0.5 mm	Rated Current	2 A per contact
Test Voltage	1.0 kV rms	Insulator	PPS (UL94 V-0)

Coupling force stays between 8 N and 20 N across the rated life, which is the window most operators can manage with gloves on. After 5000 cycles our sample units still hold contact resistance below 5 mΩ and pass the immersion check.

Where this helps most

Robot arms and gantries where cables are dragged every cycle.
Audio and video rigs that are patched and unpatched daily.
Test benches with continuous re-mating of the same connector pair.

Service note

Warranty covers the latch spring and contact block for 12 months from shipment. Damage from pulling the cable instead of the shell is outside warranty, and we say that plainly because it is the only failure mode we see repeatedly.
