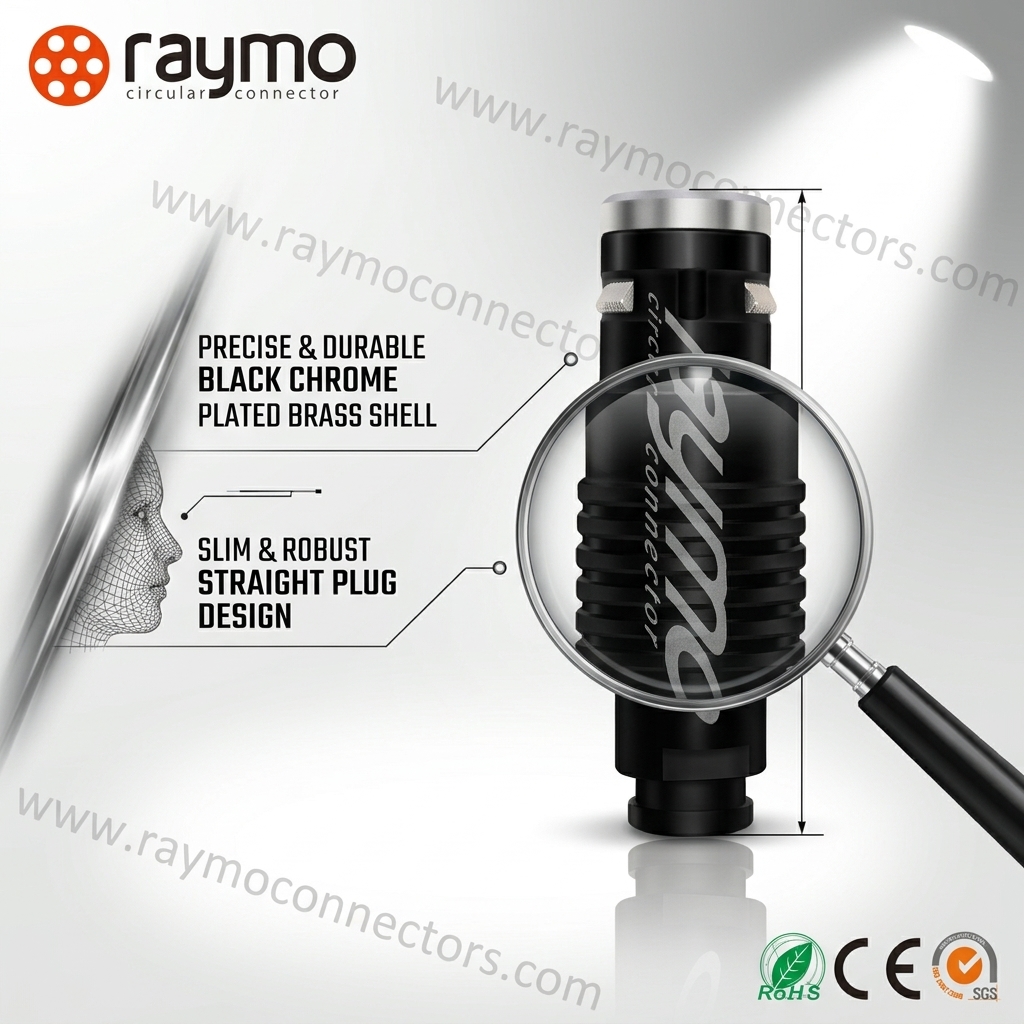

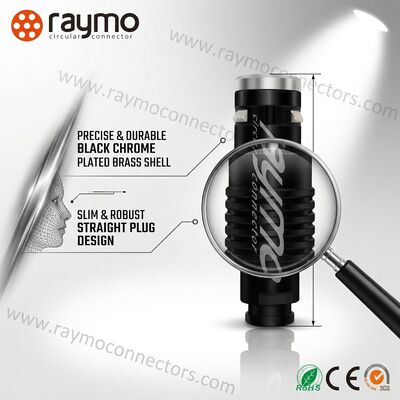

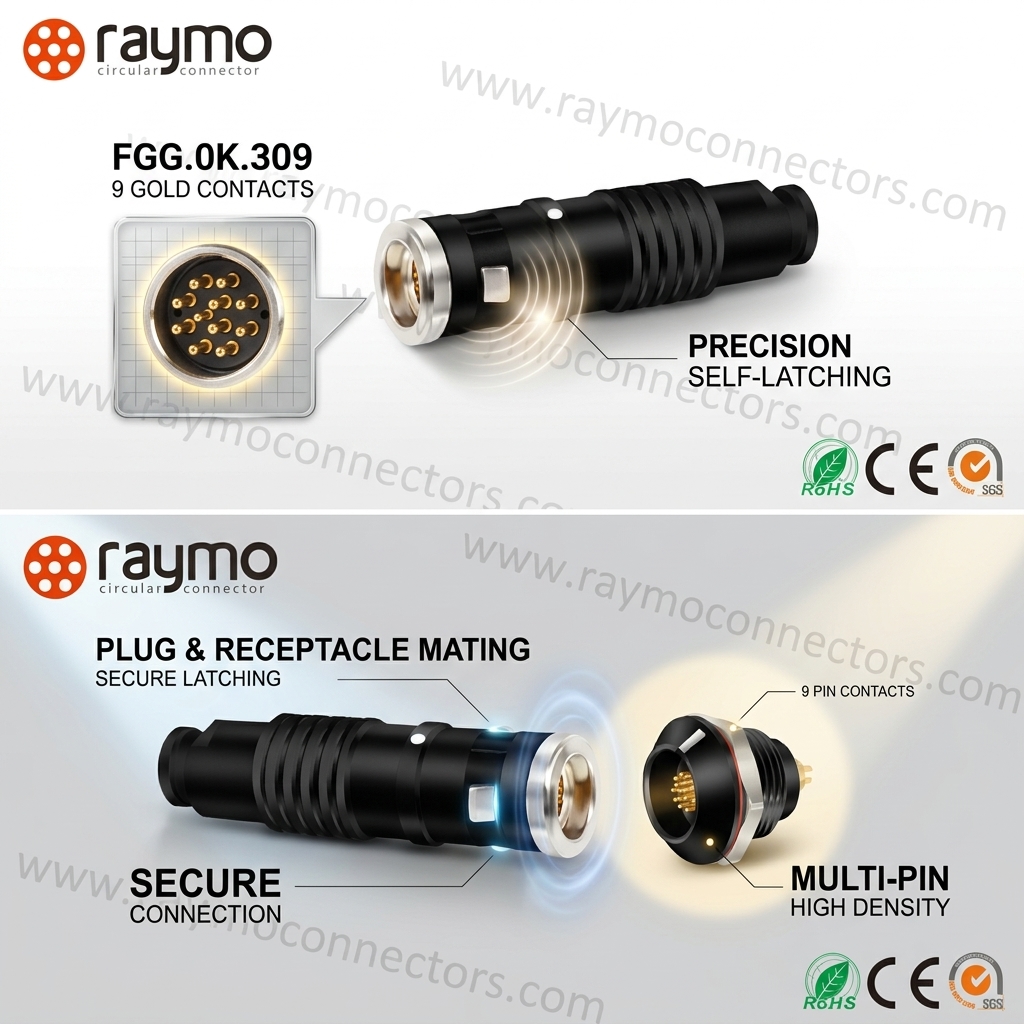

FGG.0K.309 9 Pin Solder Cup Circular Connector 4.2mm Cable Collet Plug for Cable Assembly

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	RAYMO
Certification:	CE / RoHS / SGS / ISO9001:2015
Model Number:	FGG.0K.309

Minimum Order Quantity:	1 Piece
Price:	USD 8.5 - 14.5 / Piece
Packaging Details:	PE bag + anti-static bag, export carton, OEM branded box available
Delivery Time:	3-5 working days for stock, 7-10 days for bulk order
Payment Terms:	T/T, L/C, PayPal, Western Union
Supply Ability:	5000 Pieces per Week

Contact Now

Contact Type:

Solder Bucket, Male

Contact No.:

9 Pin

Wire Range:

26 - 30 AWG

Cable Collet:

42 (31, 52, 65 Available)

Cable OD:

4.2 Mm

Contact Dia.:

0.5 Mm

Rated Current:

2 A Per Contact

OEM Harness:

Available, 1000+ Assemblies In Production

Series:

0K Series

Highlight:

9 Pin Solder Cup Contacts

4.2mm Cable Collet Fitting

OEM Cable Assembly Service

Built For Harness Work

The FGG.0K.309 is a solder bucket plug, aimed at teams that build their own harnesses rather than buying moulded cable. Nine 0.5 mm contacts sit in a PPS block with generous solder buckets, so a 26 AWG to 30 AWG wire lands cleanly and the joint can be inspected from the side.

Collet options for the cable you already buy

Collet code	Cable OD	Typical cable
31	3.1 mm	9 core 0.09 mm² signal cable
42	4.2 mm	9 core 0.14 mm² plus overall shield
52	5.2 mm	Armoured or PUR jacketed cable
65	6.5 mm	Thick jacket, high flex drag chain

Solder process that keeps yield up

Fit the bend relief nut and bushing on the cable before soldering, not after - most scrap comes from this one mistake.
Pre-tin bucket and wire separately at 320°C, then reflow for under 2 seconds.
Keep the shield braid long enough to fold back over the collet for the 360° screen.
Check continuity pin to pin before the contact block goes into the shell.

Electrical data

Endurance	>5000 cycles	Salt spray test	>96h
Protection Index (mated)	IP68	Humidity	Up to 95% at 60°C
Temperature Range	-55°C ~ 250°C (-20°C ~ 100°C waterproof)	Climatic category	55/175/21
Vibration	10-2000Hz, 15g	Shock	>100g, 6ms
Contact Dia.	0.5 mm	Rated Current	2 A per contact
Test Voltage	1.0 kV rms	Insulator	PPS (UL94 V-0)

OEM harness service

If soldering in house is not your bottleneck, send us the drawing and we build the full assembly: cable, overmould, label, continuity report and packing. Over 1000 harness types already in production with lead times from 10 days.
