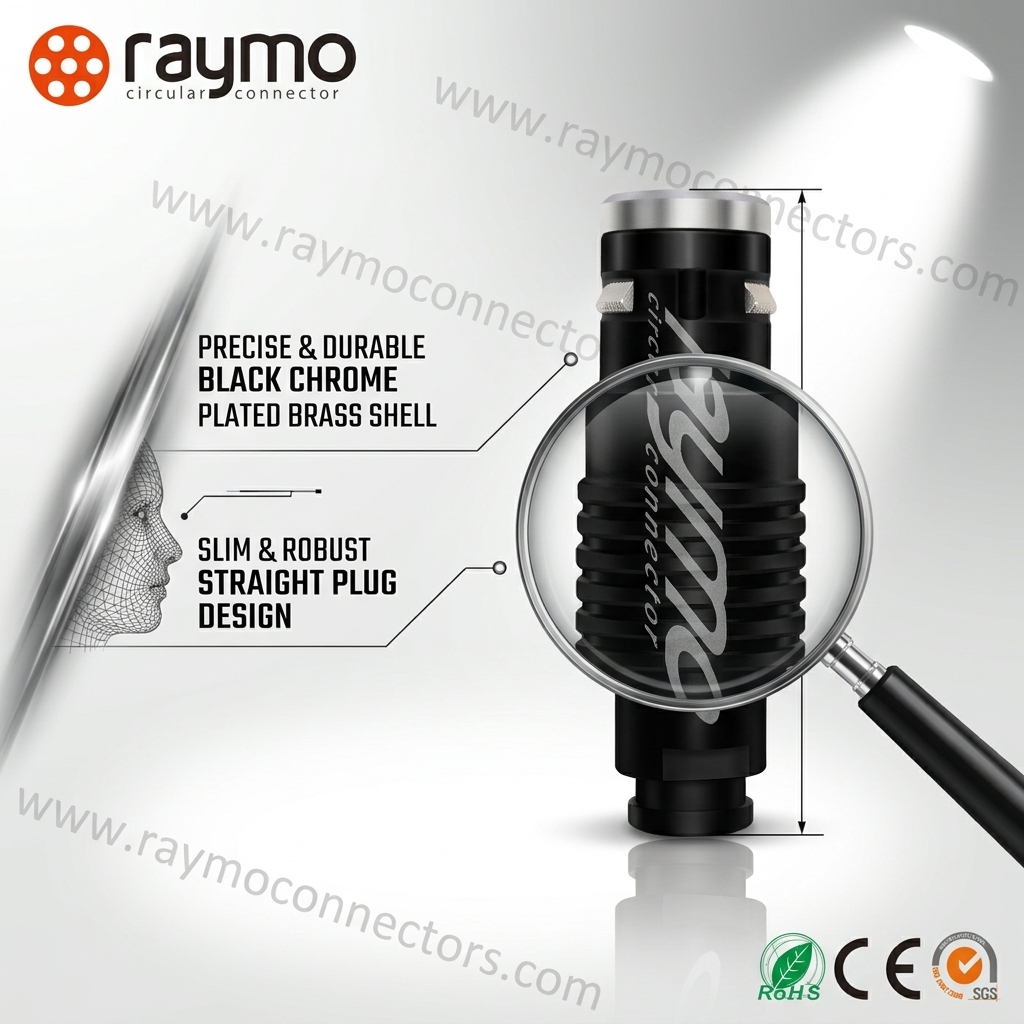

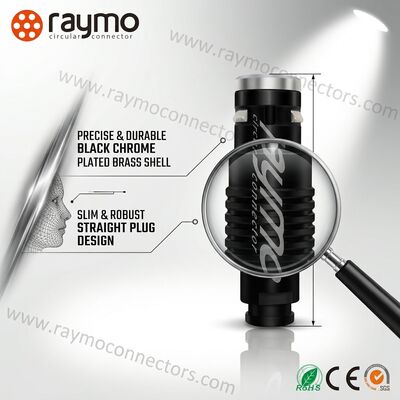

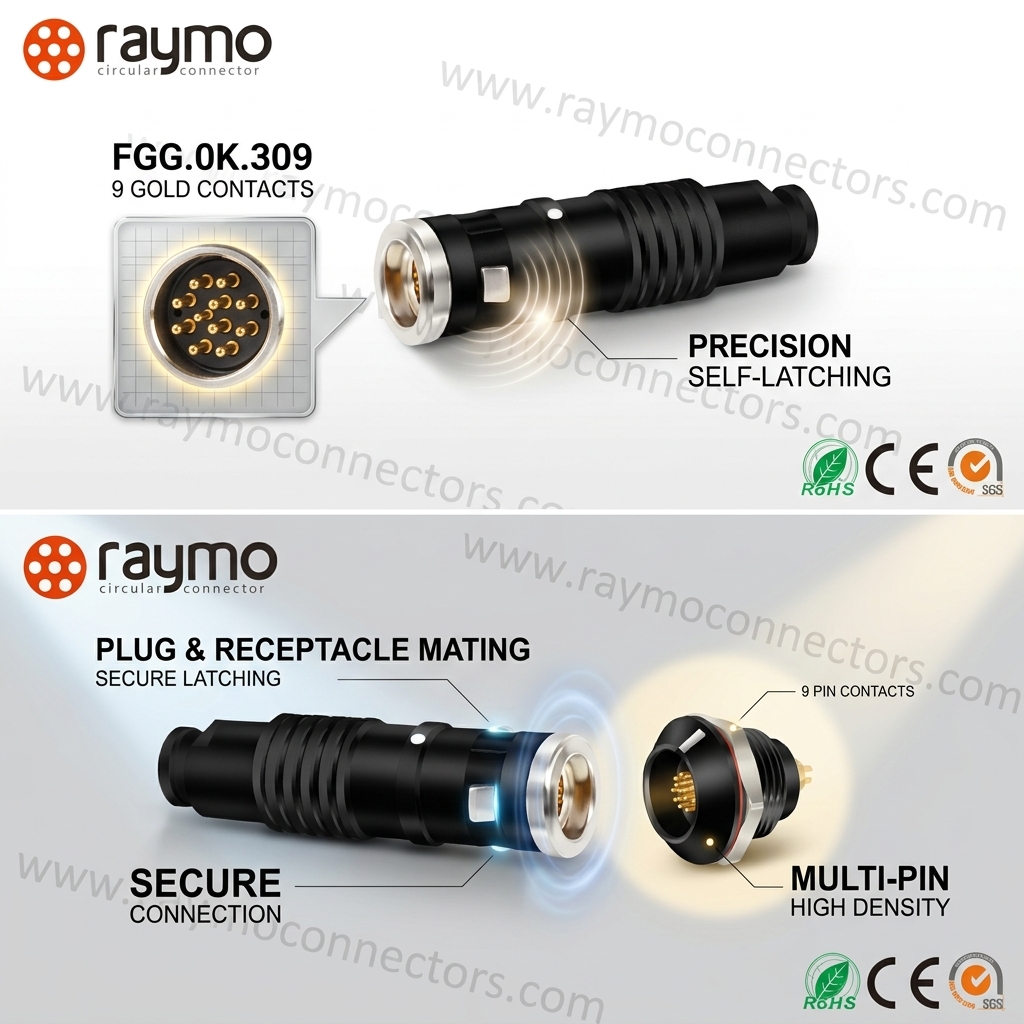

FGG.0K.309 9 Pin 360 Degree Shielded Circular Connector Medical Control Equipment Plug

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	RAYMO
Certification:	CE / RoHS / SGS / ISO9001:2015
Model Number:	FGG.0K.309

Minimum Order Quantity:	1 Piece
Price:	USD 8.5 - 14.5 / Piece
Packaging Details:	PE bag + anti-static bag, export carton, OEM branded box available
Delivery Time:	3-5 working days for stock, 7-10 days for bulk order
Payment Terms:	T/T, L/C, PayPal, Western Union
Supply Ability:	5000 Pieces per Week

Contact Now

Shielding:	>95 DB At 10 MHz, >80 DB At 1 GHz	Screen Path:	360 Degree Ground Ring, No Pigtail
Contact No.:	9 Pin Male Solder	Housing Material:	Brass, Chrome Plated Options
Insulator:	PPS UL94 V-0	Contact Plating:	Gold Over Nickel
Application:	Medical, Machine Vision, Industrial Control, DAQ	Certification:	CE, RoHS, SGS, ISO9001
Series:	0K Series
Highlight:	360 Degree EMC Shielding Shell , Medical Equipment Signal Connector , Brass Chrome Plated Housing

Shielding You Can Measure

With nine signal lines packed into a 0K body, crosstalk and radiated noise become the limiting factor before current does. The FGG.0K.309 closes the screen path with a brass shell, a spring loaded ground ring and a continuous 360° contact between shield braid and shell - no pigtail, no drain wire.

Frequency	Attenuation
10 MHz	>95 dB
100 MHz	>90 dB
1 GHz	>80 dB

Medical and control equipment use

Patient monitors and ultrasound carts - sealed, wipe down compatible shell.
Machine vision cameras and inspection stations - stable impedance on trigger lines.
Industrial control cabinets - 9 pin control and encoder runs.
Data acquisition front ends - low thermal EMF gold plated contacts.

Electrical and mechanical data

Endurance	>5000 cycles	Salt spray test	>96h
Protection Index (mated)	IP68	Humidity	Up to 95% at 60°C
Temperature Range	-55°C ~ 250°C (-20°C ~ 100°C waterproof)	Climatic category	55/175/21
Vibration	10-2000Hz, 15g	Shock	>100g, 6ms
Contact Dia.	0.5 mm	Rated Current	2 A per contact
Test Voltage	1.0 kV rms	Insulator	PPS (UL94 V-0)

Inspection before shipment

100% of plugs get a pin to pin continuity and a mating check. Sampled units go through 96 hour salt spray, immersion and 5000 cycle endurance. Each carton carries a batch number that maps back to our inspection record, so a claim can be traced to the exact lot.

Certification copies - CE, RoHS, SGS, ISO 9001 - are supplied with the first order and can be shared before purchase.
