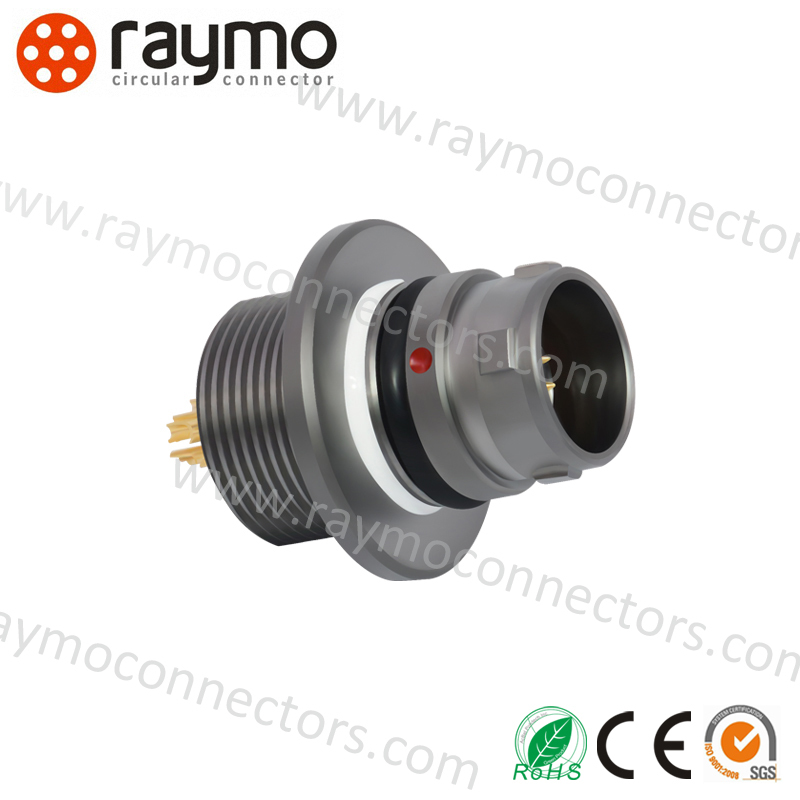

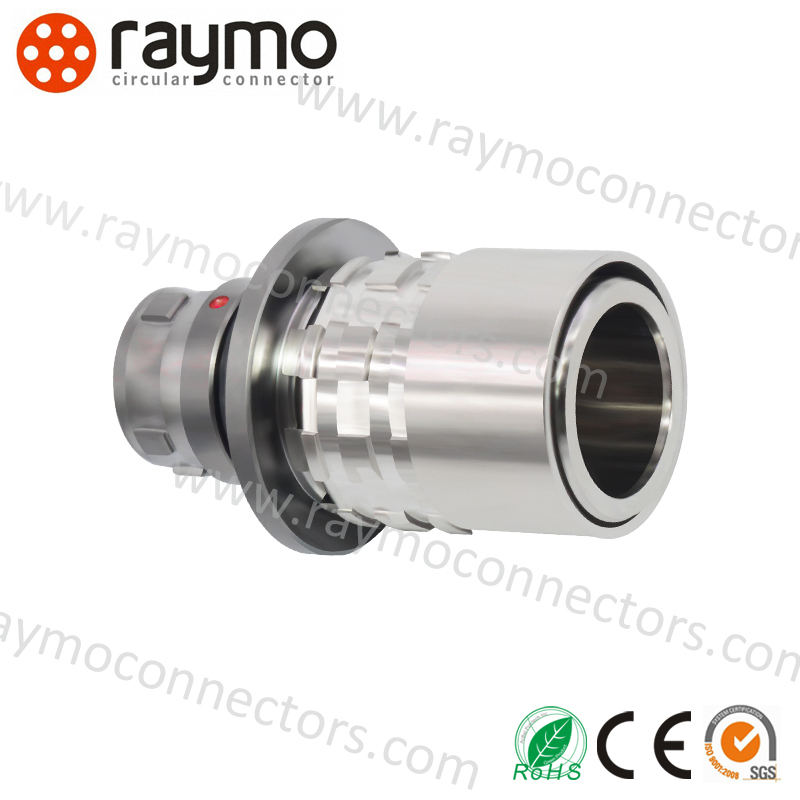

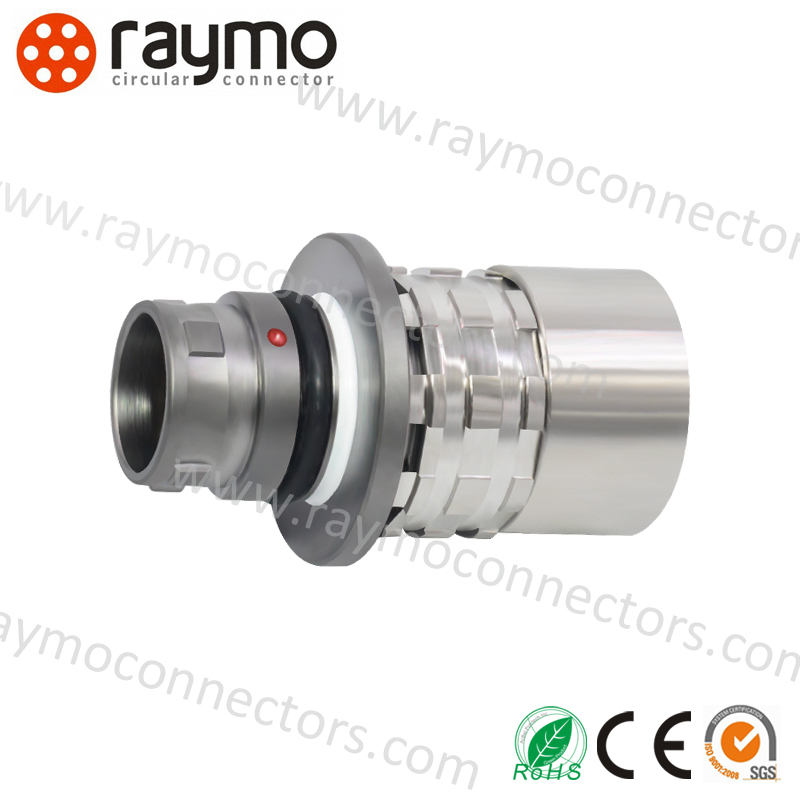

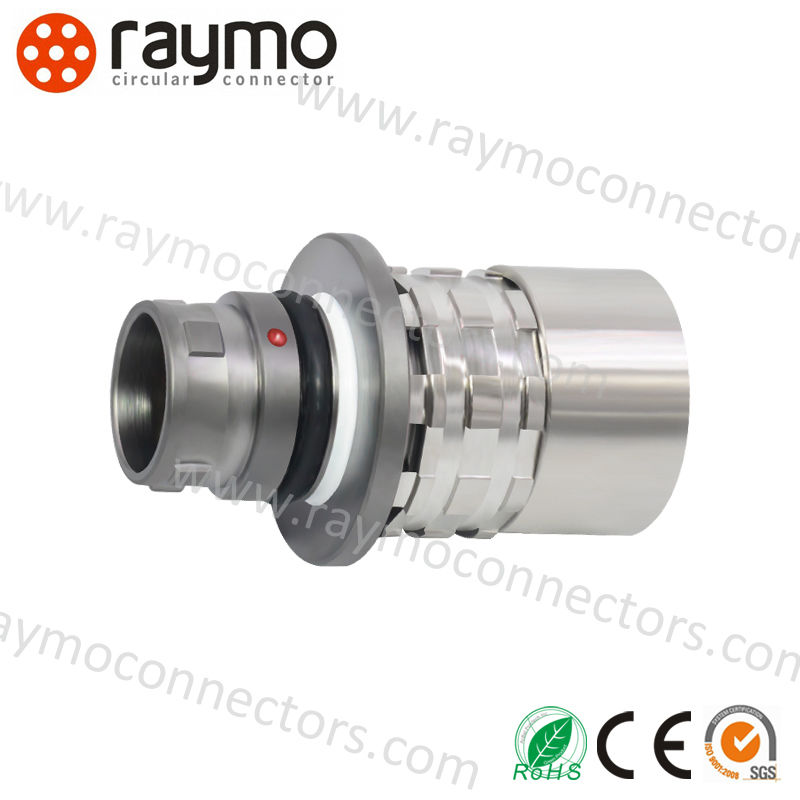

AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging

AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging
AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging
AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging AMC 27 Pin High Density Push Pull Connector Screw-Lock 5Gbps Circular Receptacle for Medical Imaging
Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAYMO
Certification: ISO9001:2015, CE, RoHS2.0, REACH, SGS
Model Number: A11WZM-P27XBC0-0000
Minimum Order Quantity: 5 Pieces
Price: USD 18.00-29.50 / Piece
Packaging Details: Individually bagged pair, 50 pairs per carton with desiccant
Delivery Time: 5-7 working days after drawing approval
Payment Terms: T/T,L/C,D/A,Western Union
Supply Ability: 5000 Pieces per Month
Contact Now
Series: AMC High-Density Screw-Lock Shell Size: 11W
Number Of Contacts: 27 Pins Locking Style: Screw-lock With Anti-loosening Detent
Data Rate: 5 Gbps Per Differential Pair Insulator Material: PPS
Contact Plating: Gold Over Nickel IP Rating: IP68 At 1 M Depth
Mating Cycles: 5000 Mounting: Square Flange, Jam Nut, PCB Mount
Keying: Colour Coded Mechanical Keying Application: Medical Imaging Panel, Vetronics, Test Fixture
Highlight:

27 Pin AMC Receptacle Pair

,

Screw-Lock Vibration Proof Coupling

,

5Gbps Differential Data Contacts

High density series
27 Pin Screw-Lock AMC Connector
Signal-dense circular interface for imaging, vetronics and test benches that cannot afford a loose coupling.

Design intent

Twenty-seven contacts are packed into an 11W shell that measures barely wider than a thumb, so a single panel cut-out can carry power, differential pairs and control lines at once. The threaded coupling nut is tightened by hand to a positive stop and stays put under continuous vibration, which is why this variant is preferred wherever a break-away plug would be a liability.

Key characteristics

  • Screw-lock coupling with anti-loosening detent, no accidental separation under shock
  • Up to 5 Gbps per differential pair, suitable for camera link and USB 3.1 Gen 1 traffic

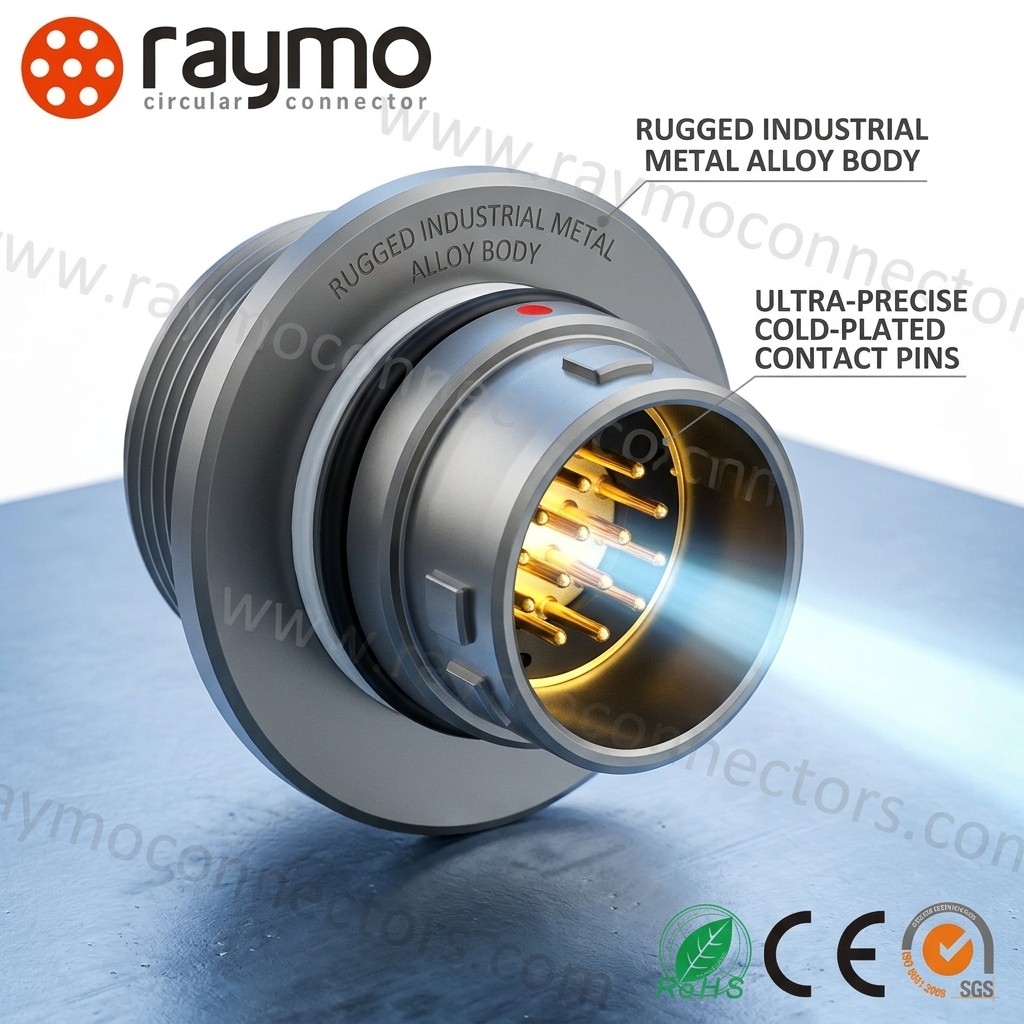

  • PPS insulator with gold over nickel plated contacts, low insertion loss
  • IP68 protection after 24 hour immersion, tested at 1 m depth
  • Colour coded and mechanically keyed shells stop mismating of identical pin counts

Pin arrangements available

Shell Contacts Typical use
0W 9 / 12 Handset and headset lines
10W 16 / 19 Camera and sensor harness
11W 27 Imaging panel and test fixture

Ordering notes

Receptacles are offered in square flange, jam nut and PCB mount versions; plugs accept straight or right angle backshells. Pinout drawings, 3D STEP models and RoHS declarations are released with every quotation.

Shipment is normally 5 to 7 working days against confirmed drawing, with 5000 pcs monthly capacity held for repeat programmes.
